- RS Stock No.:
- 173-0262
- Brand:
- RS PRO
On back order for despatch 13/08/2024, delivery within 7 working days from despatch date.
Added
Price (ex. GST) Each (In a Bag of 1000)
$0.189
(exc. GST)
$0.217
(inc. GST)
Units | Per unit | Per Bag* |
1000 - 1000 | $0.189 | $189.00 |
2000 - 3000 | $0.185 | $185.00 |
4000 + | $0.182 | $182.00 |
*price indicative |
- RS Stock No.:
- 173-0262
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

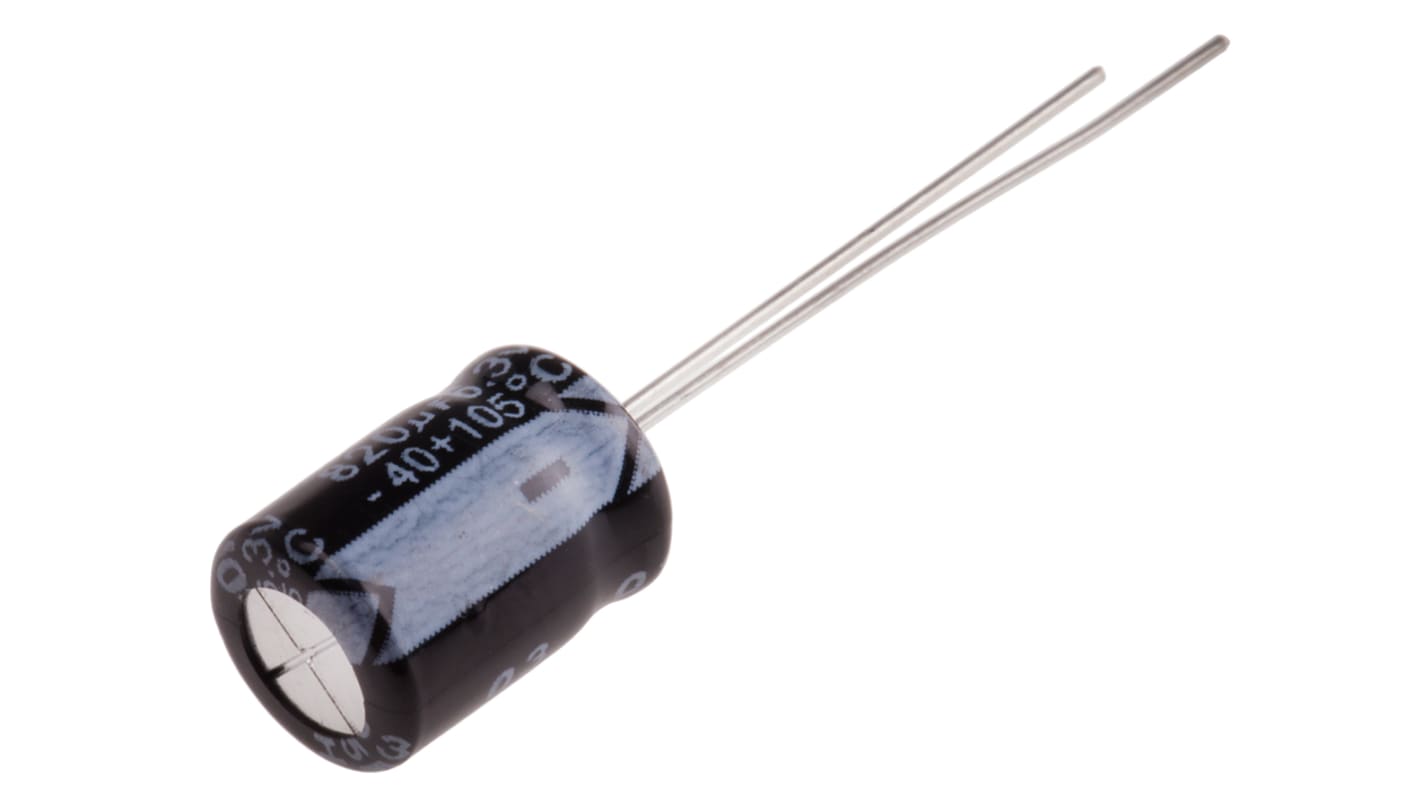

General Purpose Radial 6.3 to 16V
Axial RS Aluminium Capacitors, LHK Series 105°C
Safety vent construction design
Applications include communication equipment and switching power supply
Applications include communication equipment and switching power supply
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Capacitance | 820µF |
Voltage | 6.3V dc |
Mounting Type | Radial, Through Hole |
Technology | Aluminium Electrolytic |
Dimensions | 8 (Dia.) x 11mm |
Height | 11mm |
Length | 11mm |
Minimum Operating Temperature | -40°C |
Diameter | 8mm |
Maximum Operating Temperature | +105°C |
Lifetime | 2000h |
Lead Pitch | 3.5mm |
Leakage Current | <lt/>=0.01 CV or 3 μA @ 1 min |
Tolerance | ±20% |
Polarised | Polar |
Ripple Current | 390mA |
Series | RS |
Dissipation Factor | 23% |
