RS PRO 820 μF Capacitor 35 V dc, Radial, Through Hole Radial Lead

RS Stock No.:: 181-5161
Brand:: RS PRO

RS PRO 820 μF Capacitor 35 V dc, Radial, Through Hole Radial Lead

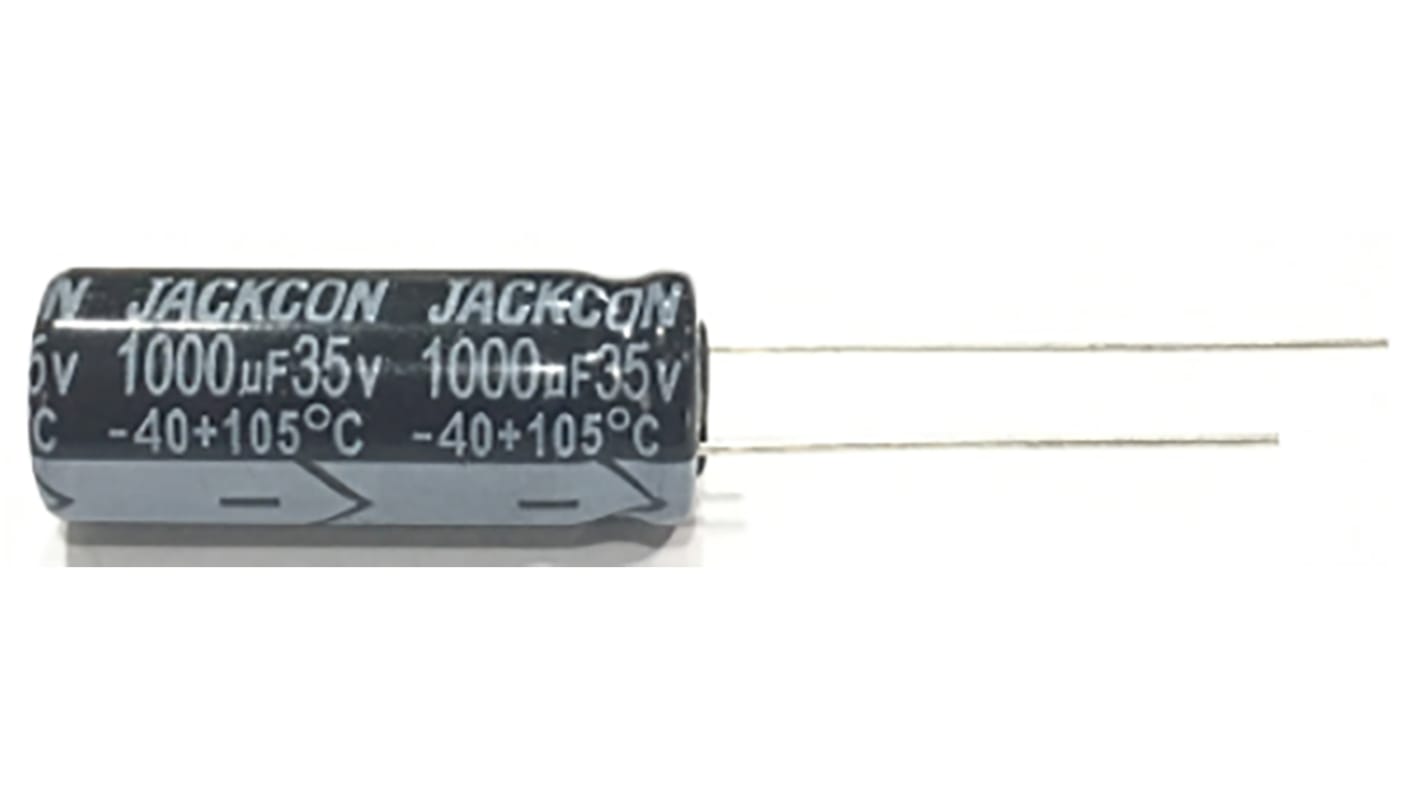

This image is representative of the product range

Bulk discount available

Subtotal (1 bag of 250 units)*

$295.25

(exc. GST)

$339.50

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Temporarily out of stock

250 unit(s) shipping from 16 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Bag*
250 - 250	$1.181	$295.25
500 - 750	$1.151	$287.75
1000 +	$1.133	$283.25

*price indicative

RS Stock No.:: 181-5161
Brand:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Capacitance	820μF
	Product Type	Capacitor
	Voltage	35 V dc
	Mount Type	Radial, Through Hole
	Construction	Radial Can
	Height	21mm
	Length	21mm
	Minimum Operating Temperature	-40°C
	Diameter	13 mm
	Termination Type	Radial Lead
	Pin Count	2
	Capacitor Ripple Current	1.7 A
	Maximum Operating Temperature	105°C
	Lead Pitch	5mm
	Lifetime	1000 h
	Standards/Approvals	RoHS
	Series	LPS
	Automotive Standard	No
	Tolerance	±20 %
	Leakage Current	3μA
	Dissipation Factor	12%

	Select all
	Brand RS PRO
	Capacitance 820μF
	Product Type Capacitor
	Voltage 35 V dc
	Mount Type Radial, Through Hole
	Construction Radial Can
	Height 21mm
	Length 21mm
	Minimum Operating Temperature -40°C
	Diameter 13 mm
	Termination Type Radial Lead
	Pin Count 2
	Capacitor Ripple Current 1.7 A
	Maximum Operating Temperature 105°C
	Lead Pitch 5mm
	Lifetime 1000 h
	Standards/Approvals RoHS
	Series LPS
	Automotive Standard No
	Tolerance ±20 %
	Leakage Current 3μA
	Dissipation Factor 12%

COO (Country of Origin):: TW

RS PRO Electrolytic Capacitor

The RS PRO 820μF through-hole mount electrolytic capacitor has a voltage rating of 35VDC and leakage current of 2μA. This low impedance capacitor has dimensions of 13mm x 21mm (diameter x length). This capacitor is designed with a safety vent construction.

Features and Benefits

• Tolerance: ±20%

• Lifetime: 1000 hours

• Ripple current: 1700mA

• Dissipation factor: 12%

• Lead pitch: 5mm

• Load life: 3000∼10000 hours at 150 °C

• Impedance: 0.048ohm

• Operating temperature ranging between -40°C and 105°C

Applications

• Used in communication equipment

• Switching power supply

• Industrial measuring instruments

Certifications

• ANSI/ESD S20.20:2014

• BS EN 61340-5-1:2007
