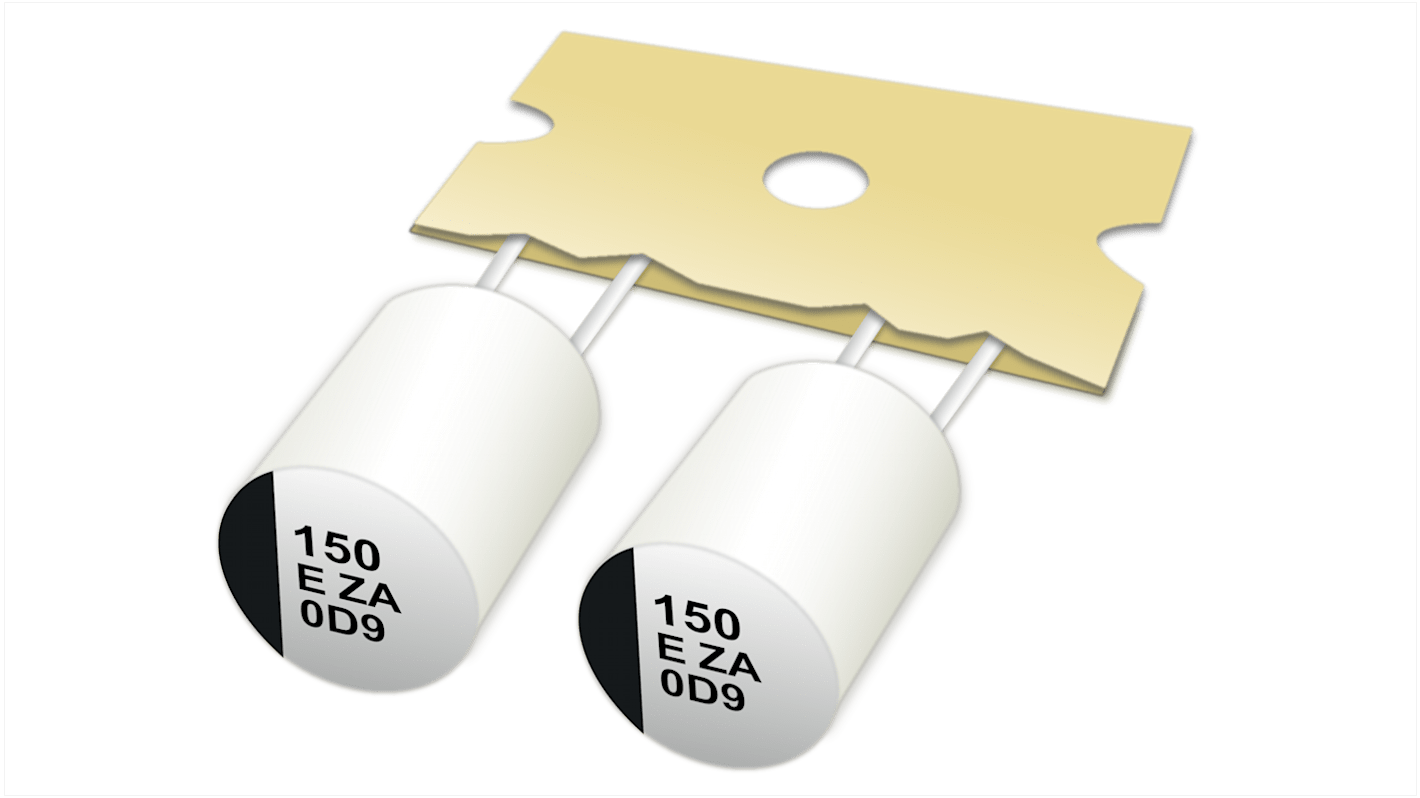

Panasonic 47μF Hybrid Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - EEHAZA1H470B

RS Stock No.:: 210-5621
Mfr. Part No.:: EEHAZA1H470B
Brand:: Panasonic

Panasonic 47μF Hybrid Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - EEHAZA1H470B

Bulk discount available

Subtotal (1 box of 1000 units)**

$896.00

(exc. GST)

$1,030.00

(inc. GST)

On back order for despatch 29/09/2025, delivery within 7 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60 ex GST

Units	Per unit	Per Box**
1000 - 4000	$0.896	$896.00
5000 +	$0.878	$878.00

**price indicative

RS Stock No.:: 210-5621
Mfr. Part No.:: EEHAZA1H470B
Brand:: Panasonic

Datasheet - EEHAZA1H470B

Panasonic ZA-A Series Hybrid Aluminium Electrolytic Capacitor, 47μF Capacitance, 50V DC Voltage - EEHAZA1H470B

This hybrid aluminium electrolytic capacitor is designed for high-performance applications and ensures reliability within a compact size. With a capacitance of 47 μF and a voltage rating of 50V DC, this radial capacitor measures just 8mm in diameter and 9.5mm in length, making it ideal for various electronic projects. Engineered to meet AEC-Q200 automotive standards, it is suitable for use in rigorous environments where durability is essential.

Features & Benefits

• Supports voltage up to 50 V DC for versatile applications
• Compact size allows for easy integration into limited spaces
• Low leakage current of 23.5μA ensures energy efficiency
• High ripple current rating of 1800mA for demanding loads
• Operates effectively in temperatures ranging from -55°C to +105°C
• Polarised design optimises reliability and performance

Applications

• Used in automotive electronics for reliable power management
• Suitable for power supply circuits in industrial equipment
• Ideal for signal processing in communication devices
• Utilised in consumer electronics requiring compact capacitors

What operating temperature range can this capacitor withstand?

It can operate efficiently in temperatures from -55°C to +105°C, making it suitable for various demanding environments.

How does the ripple current specification benefit my application?

With a ripple current rating of 1800mA, it effectively handles transient loads, ensuring stability in power delivery.

Can this component be used in automotive applications?

Yes, it meets the AEC-Q200 standard, confirming its reliability in automotive applications.

What makes low leakage current significant for my circuits?

A low leakage current of 23.5μA enhances overall energy efficiency, minimising power loss in performance-critical applications.

How is the polarised design advantageous?

The polarised design helps ensure proper function and longevity within circuits, preventing potential damage from reverse polarity.

Attribute	Value
Capacitance	47µF
Voltage	50V dc
Mounting Type	Radial, Through Hole
Technology	Hybrid
Dimensions	8 (Dia.) x 9.5 x 0.6mm
Length	9.5mm
Diameter	8mm
Maximum Operating Temperature	+105°C
Lead Pitch	3.5mm
Polarised	Polar
Automotive Standard	AEC-Q200
Series	ZA-A
Tolerance	±20%
