Nichicon 100 μF Capacitor 25 V dc, Radial, Through Hole - UHE1E101MED PC Pin

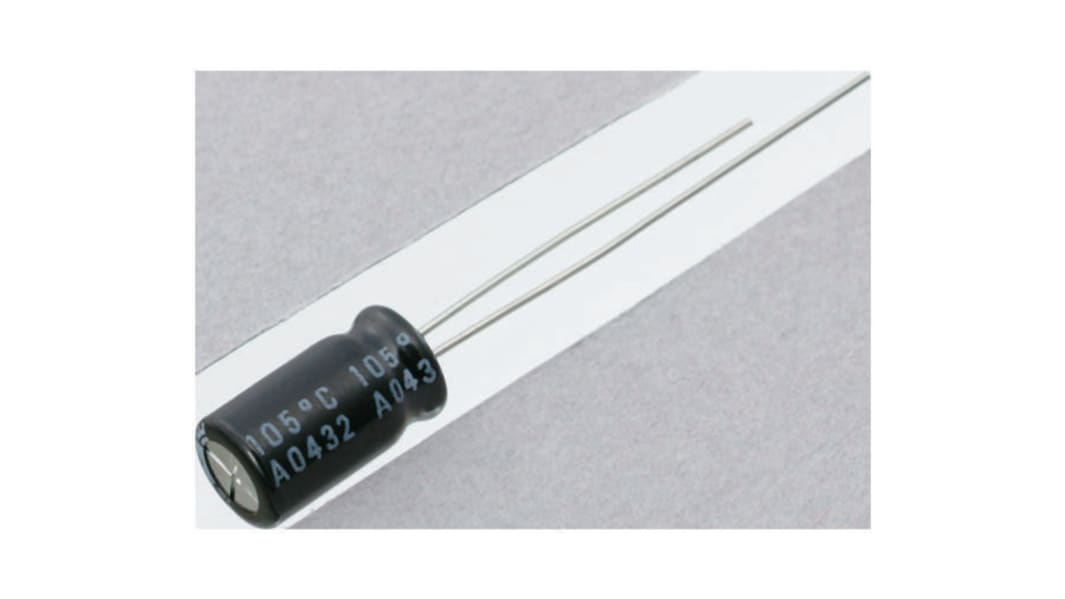

This image is representative of the product range

View all Aluminium Capacitors
Bulk discount available

Subtotal (1 pack of 5 units)*

$3.06

(exc. GST)

$3.52

(inc. GST)

Add to Basket
Select or type quantity
Last RS stock
  • Final 160 unit(s), ready to ship from another location
Units
Per unit
Per Pack*
5 - 495$0.612$3.06
500 - 2495$0.598$2.99
2500 - 4995$0.576$2.88
5000 +$0.558$2.79

*price indicative

RS Stock No.:
490-9917
Mfr. Part No.:
UHE1E101MED
Brand:
Nichicon
Find similar products by selecting one or more attributes.
Select all

Brand

Nichicon

Product Type

Capacitor

Capacitance

100μF

Voltage

25 V dc

Construction

Cylindrical Can

Mount Type

Radial, Through Hole

Height

11mm

Polarity

Polar

Length

11mm

Minimum Operating Temperature

-40°C

Diameter

6.3 mm

Capacitor Ripple Current

340 mA

Termination Type

PC Pin

Pin Count

2

Maximum Operating Temperature

105°C

Width

6.3 mm

Standards/Approvals

RoHS, EU

Lifetime

5000 h

Lead Pitch

2.5mm

Tolerance

±20 %

Automotive Standard

No

Series

HE

Leakage Current

3μA

COO (Country of Origin):
JP

Aluminium Electrolytic Capacitors HE Series 105°C


The HE series of electrolytic capacitors from Nichicon offer a low impedance, high reliability, miniature solution. These compact electrolytic capacitors are constructed from a PET (non-PVC) sleeve with lead-free plating on the leads.
