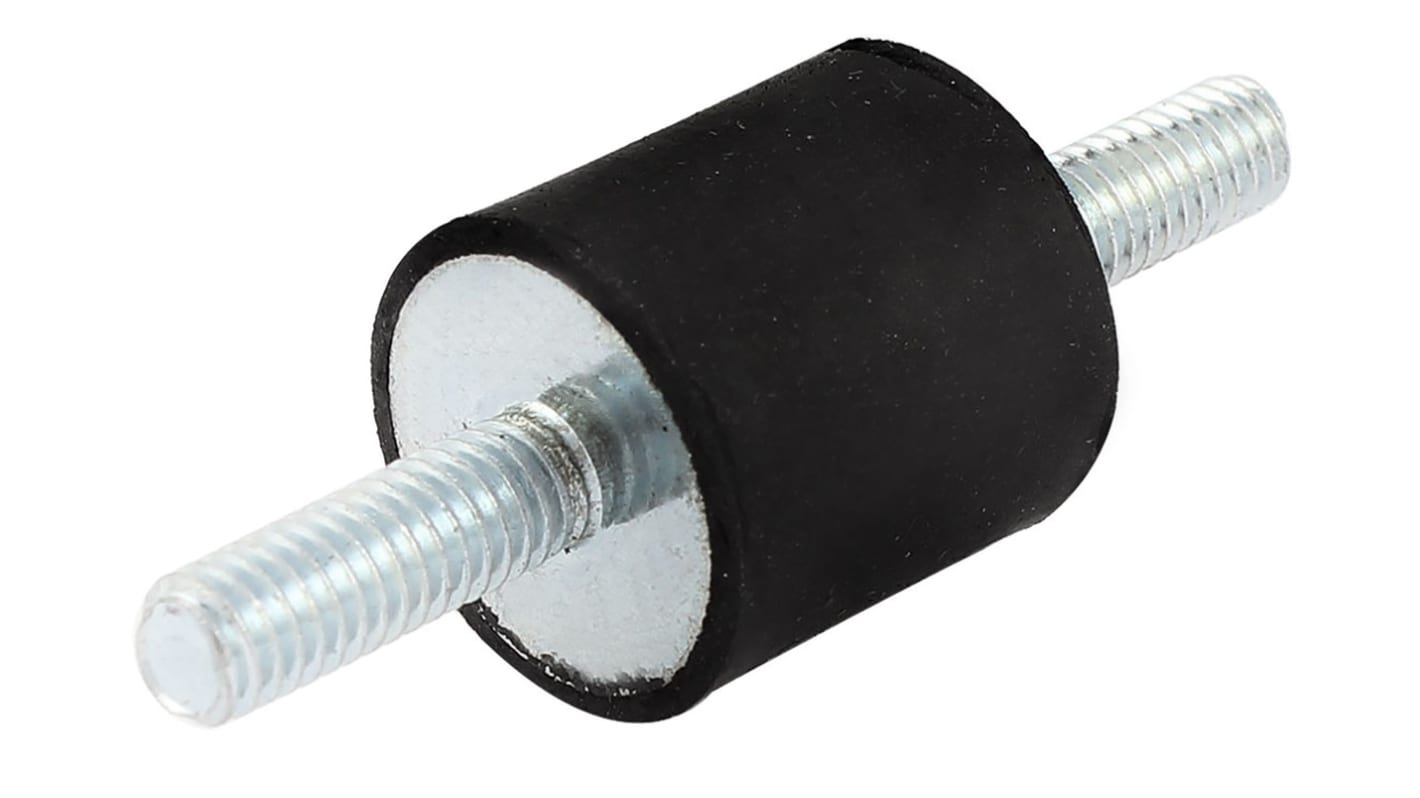

RS PRO M10 Anti-Vibration Mount, Male to Male Bobbin with 142.3 kg Compression, 70 mm OD, 50 mm H
- RS Stock No.:
- 126-4271
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$70.19
(exc. GST)
$80.72
(inc. GST)
Spend over $80.00 ex GST for FREE delivery
In Stock
- Plus 56 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | $70.19 |
| 5 - 24 | $66.67 |
| 25 + | $63.37 |
*price indicative
Sponsored
- RS Stock No.:
- 126-4271
- Brand:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Anti-Vibration Mount | |
| Anti Vibration Mount Type | Male to Male Bobbin | |
| Thread Size | M10 | |
| Overall Height | 50mm | |
| Outside Diameter | 70mm | |
| Minimum Operating Temperature | -25°C | |
| Material | Natural Rubber | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Compression Load | 142.3kg | |
| Shore Hardness | 45 Shore A | |
| Compression Deflection | 5mm | |
| Series | AV Type A | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Anti-Vibration Mount | ||
Anti Vibration Mount Type Male to Male Bobbin | ||
Thread Size M10 | ||
Overall Height 50mm | ||
Outside Diameter 70mm | ||
Minimum Operating Temperature -25°C | ||
Material Natural Rubber | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Compression Load 142.3kg | ||
Shore Hardness 45 Shore A | ||
Compression Deflection 5mm | ||
Series AV Type A | ||
- COO (Country of Origin):
- IN
RS PRO Anti Vibration Mounts
These RS PRO cylindrical male to male anti-vibration mounts are designed with versatility and durability in mind; made from a natural rubber to be simple and an economical fix.
Used with engines and machinery for vast reduction of vibration and protection of equipment. The cylindrical shape with an M8 thread anti-vibration bobbin manufactured from natural rubber offers excellent vibration absorption.
A simple to use and install anti-vibration mount achieves high shear and compression vibration damping and makes it suitable for industrial environments.
Features and Benefits
Applications
Large static generator engines
Compressors
Motors
Electronic control panels
Engine Mounts
