RS PRO Round M12 Anti Vibration Mount, Pedestal Mount with 450kg Compression Load
- RS Stock No.:
- 162-3221
- Brand:
- RS PRO
19 in Global stock for delivery within 1 working day (+3 days for regional areas).
126 in Global stock for delivery within 7 working day (+3 days for regional areas).
Added
Price (ex. GST) Each
$114.06
(exc. GST)
$131.17
(inc. GST)
| Units | Per unit |
| 1 + | $114.06 |
- RS Stock No.:
- 162-3221
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

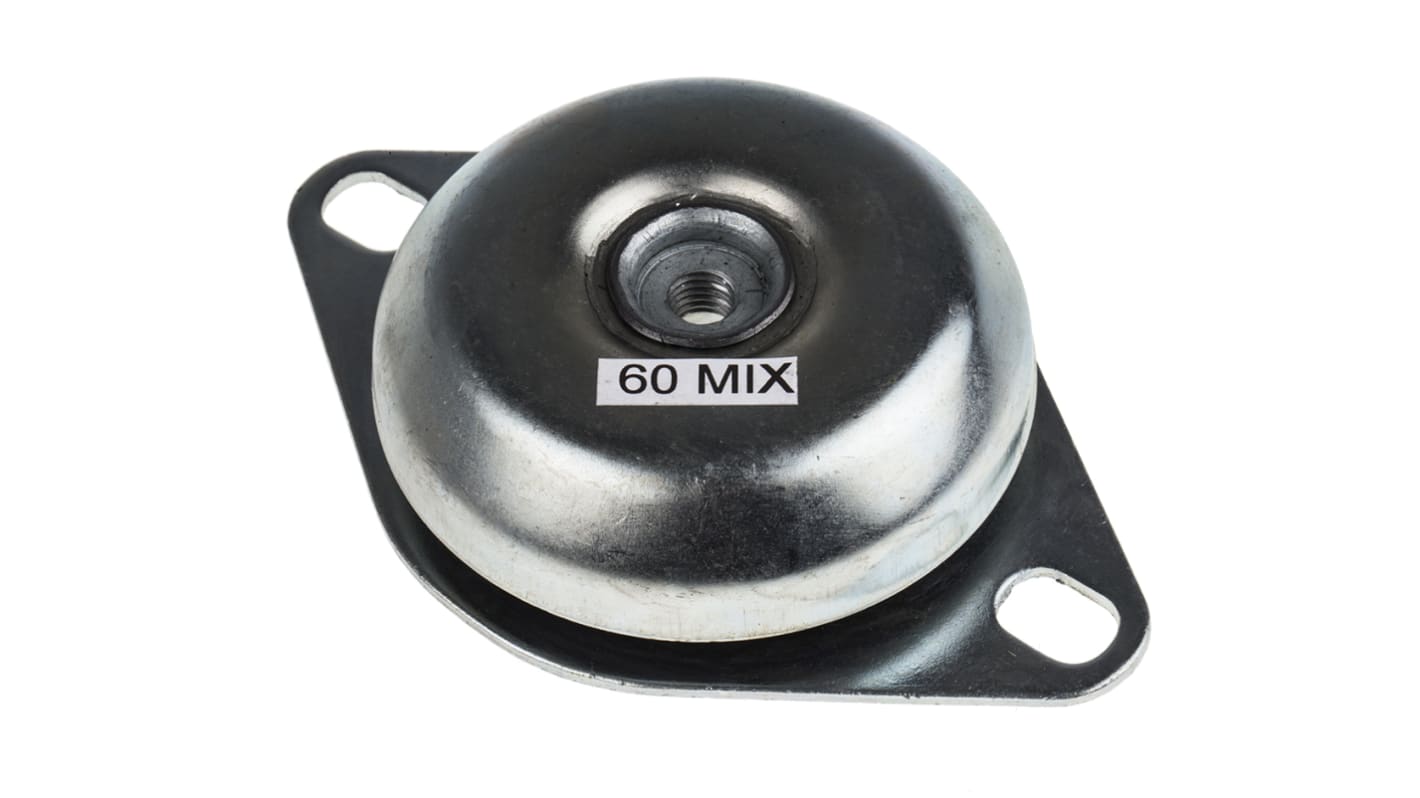

RS PRO 106mm Round Anti-Vibration Pedestal Mount (663kg)
A 106mm round pedestal mount comprising of a captive flanged mount with a rubber element. Designed for shear and compression vertical loads the flanged pedestal mount achieves excellent vibration isolation.
The anti-vibration mount features a thick base and a low captive mounting height enabling it to support loads of up to 663kg and the dome shaped design protects the internal parts from splashes and contamination.
When in transit the pedestal mounts compact design and built in bump and rebound feature protects sensitive equipment and the compression design greatly reduces noise when compared to spring mounted alternatives.
Suitable for use in a wide variety of applications including pumps, compressors, centrifugal fans and blowers.
Features and Benefits
106mm Pedestal mount
172mm full length
38mm in height
663kg load capacity
Anti vibration
Fail safe mount
60 Shore A
Bump and rebound feature
M12 centre hole
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
Specifications
Attribute | Value |
|---|---|
| Anti Vibration Mount Type | Pedestal Mount |
| Thread Size | M12 |
| Diameter | 172mm |
| Foot Height | 3mm |
| Overall Height | 38mm |
| Static Load Capacity | 450kg |
| Material | Natural Rubber |
| Mounting Type | 2-Hole Flange |
| Metalwork | Zinc Plated Steel |
| Foot Shape | Round |
| Compression Load | 450kg |
| Shore Hardness | 60 Shore A |
| Maximum Operating Temperature | +100°C |
| Compression Deflection | 3.5mm |
