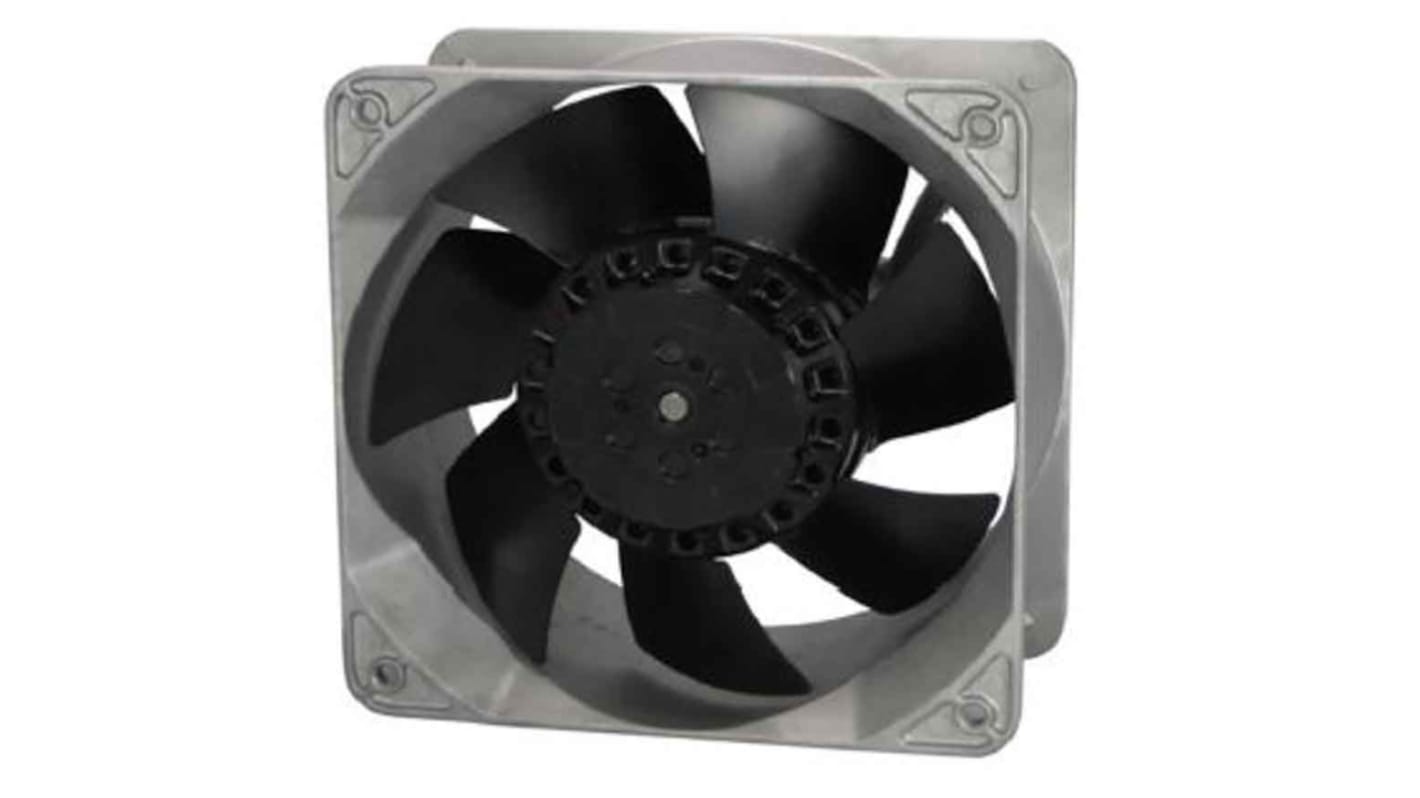

RS PRO Axial Fan, 230 V ac, AC Operation, 645.6m³/h, 80W, IP56, 176 x 176 x 89mm

RS Stock No.:: 175-9784
Brand:: RS PRO

RS PRO Axial Fan, 230 V ac, AC Operation, 645.6m³/h, 80W, IP56, 176 x 176 x 89mm

29 In stock for delivery within 7 working day(s)

Added

Price (ex. GST) Each

$194.99

(exc. GST)

$224.24

(inc. GST)

Units	Per unit
1 - 4	$194.99
5 +	$175.49

RS Stock No.:: 175-9784
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

The RS PRO axial fan keeps your components cool and ensures ventilation by rotating and moving the air. It can be used to prevent the overheating of motors and other instruments. This RS PRO 60 W AC axial fan has fan speed of 2750 RPM and operates at 230 V AC. The frame of this fan is made of diecast aluminium and its impeller is made of metal alloy. It also has a dual ball bearing system.

176 mm height
176 mm width
89 mm depth
330 CFM air flow
63dB noise level
Operates at voltage range between 200-240V
Life Expectancy : 50, 000 hours (L10 at 55C)
Backward direction of curve
IP56 protection rating
RoHS compliant
RS PRO approved
3 years warranty

Specifications

Attribute	Value
Supply Voltage	230 V ac
AC or DC Operation	AC
Height	176mm
Power Consumption	80W
Width	176mm
Depth	89mm
Termination Type	Lead Wire
Dimensions	176 x 176 x 89mm
Air Flow	645.6m³/h
Noise Level	63dB
Fan Speed	3250rpm
Direction of Curve	Backward
IP Rating	IP56
