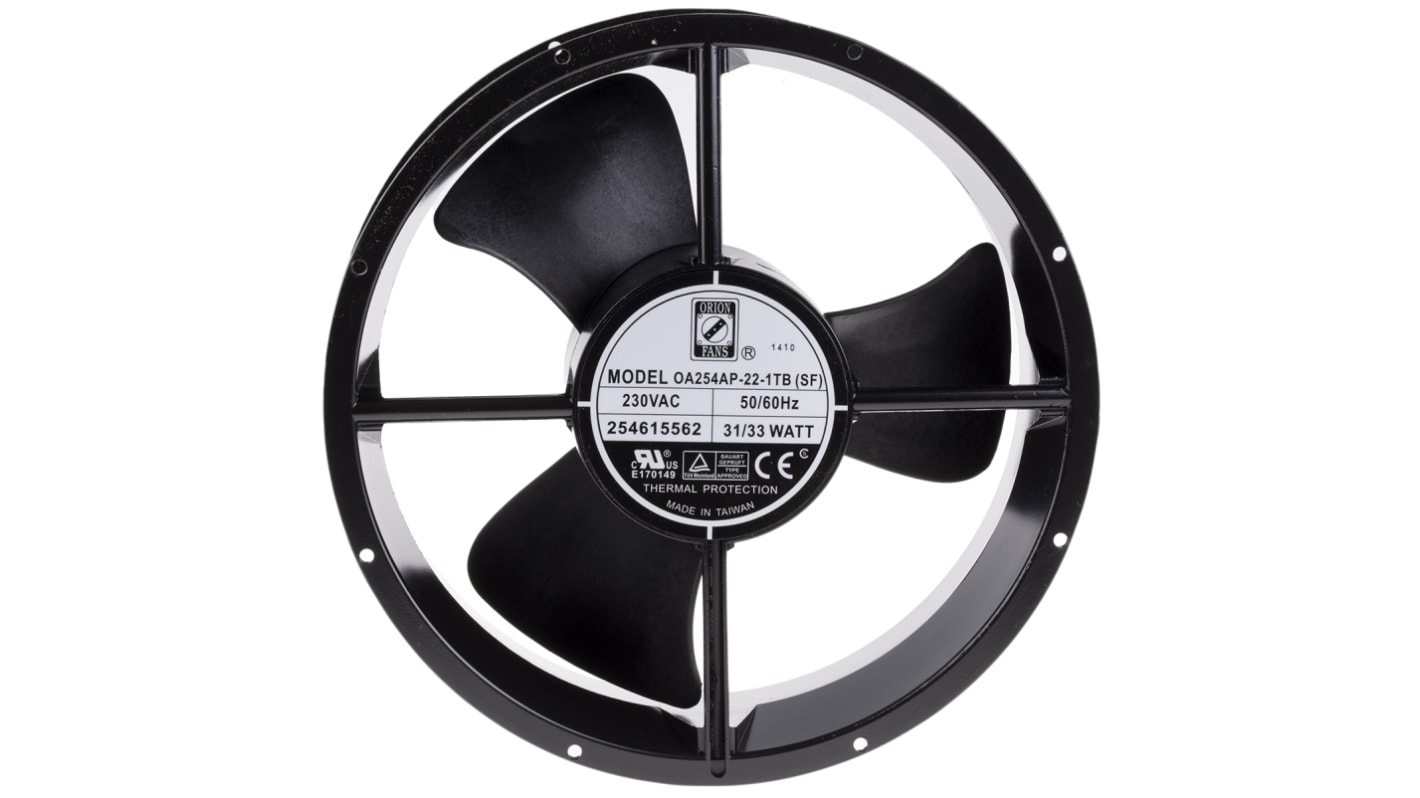

RS PRO Axial Fan, 230 V ac, AC Operation, 934.4m³/h, 33W, 140mA Max, 254 (Dia.) x 89mm
- RS Stock No.:
- 175-9810
- Brand:
- RS PRO
10 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each
$238.22
(exc. GST)
$273.95
(inc. GST)
| Units | Per unit |
| 1 - 4 | $238.22 |
| 5 - 24 | $230.37 |
| 25 + | $222.77 |
- RS Stock No.:
- 175-9810
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The RS PRO AC Axial Fan uses electrical machinery to cool it down and keep it running smoothly. It has frame made of aluminium diecast and once installed it offers the perfect cooling solution with reliability and quality.
Capacitor Drive Motor
Dual Ball Bearing
Impedance Protected Motor
Dual Ball Bearing
Impedance Protected Motor
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 230 V ac |
| AC or DC Operation | AC |
| Power Consumption | 33W |
| Depth | 89mm |
| Maximum Current | 140mA |
| Termination Type | Lead Wire |
| Dimensions | 254 (Dia.) x 89mm |
| Air Flow | 934.4m³/h |
| Noise Level | 55dB |
| Fan Speed | 1650rpm |
| Direction of Curve | Forward |
