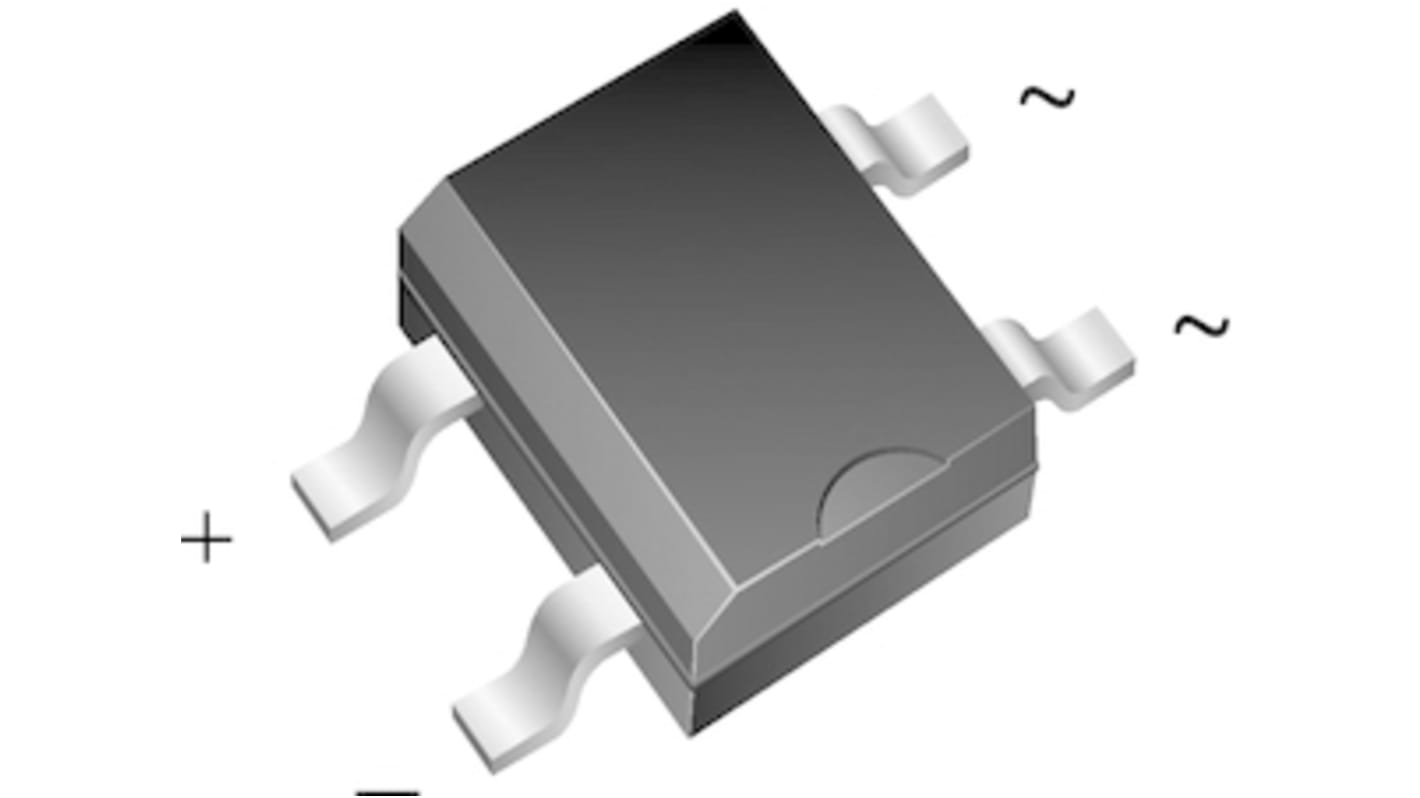

Vishay MB6S-E3/80, Quad Bridge Rectifier, 35A 600V, 4-Pin TO-269AA

  • RS Stock No. 180-7233
  • Mfr. Part No. MB6S-E3/80
  • Manufacturer Vishay
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

General purpose use in AC/DC bridge full wave rectification for power supply, lighting ballaster, battery charger, home appliances, office equipment, and telecommunication applications.

Saves space on printed circuit boards
Ideal for automated placement
APPLICATIONS:
General purpose use in AC/DC bridge full wave rectification for power supply, lighting ballaster, battery charger, home appliances, office equipment, and telecommunication applications.

Specifications
Attribute Value
Peak Average Forward Current 35A
Bridge Type Single Phase
Peak Reverse Repetitive Voltage 600V
Mounting Type Surface Mount
Package Type TO-269AA
Pin Count 4
Configuration Quad
Peak Non-Repetitive Forward Surge Current 450A
Maximum Operating Temperature +150 °C
Minimum Operating Temperature -55 °C
Peak Forward Voltage 1V
Peak Reverse Current 100µA
Length 4.95mm
Dimensions 4.95 x 4.1 x 2.7mm
Width 4.1mm
Height 2.7mm
Junction Capacitance 13pF
1775 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Pack of 25)
$ 0.911
(exc. GST)
$ 1.048
(inc. GST)
units
Per unit
Per Pack*
25 - 75
$0.911
$22.775
100 - 475
$0.879
$21.975
500 - 975
$0.759
$18.975
1000 +
$0.726
$18.15
*price indicative
Packaging Options:
Related Products
The Bridge Rectifier converts an Alternating Current (AC) ...
Description:
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement ...
