HellermannTyton FG Series Grey PP Cable Gland, PG36 Thread, 35.6mm Max, IP54
- RS Stock No.:
- 186-107
- Mfr. Part No.:
- 167-00516 FG45-PG36-PP-GY
- Brand:
- HellermannTyton
13 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each
$54.46
(exc. GST)
$62.63
(inc. GST)
| Units | Per unit |
| 1 - 9 | $54.46 |
| 10 - 49 | $53.48 |
| 50 + | $52.12 |
- RS Stock No.:
- 186-107
- Mfr. Part No.:
- 167-00516 FG45-PG36-PP-GY
- Brand:
- HellermannTyton
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

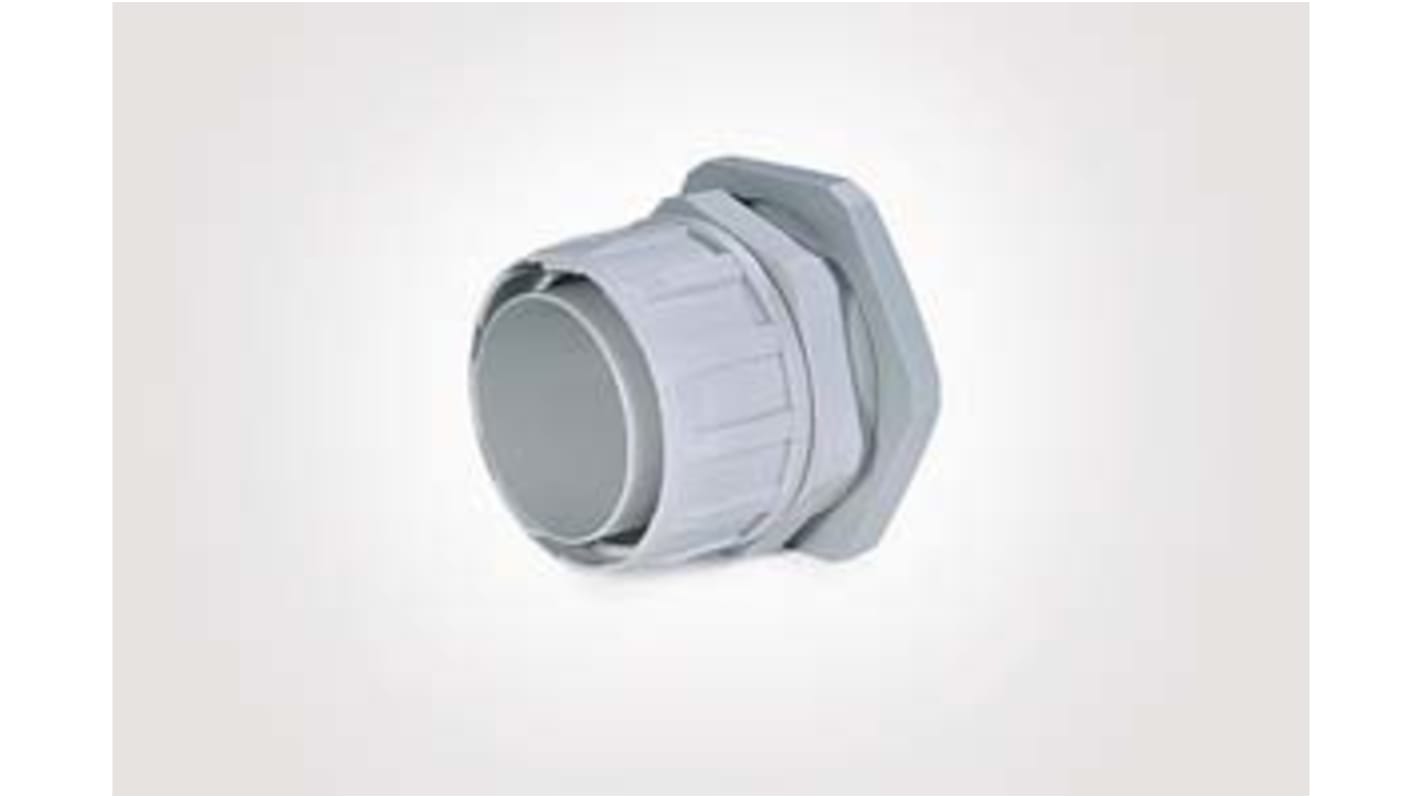

HellermannTyton IP54 Cable Glands
The HellermannTyton polypropylene, grey cable glands are IP54 screw connections for the Flexigaurd corrugated tubing.
Features and Benefits
Available in PG (NV) or metric (TV) thread
Easy to use
IP54 rating
Operating temperatures of -35°C to +80°C
Protects cables against liquids
Robust
Specifications
Attribute | Value |
|---|---|
| Thread Size | PG36 |
| Maximum Cable Diameter | 35.6mm |
| Material | PP |
| Colour | Grey |
| Series | FG |
| IP Rating | IP54 |
| Locknut Included | No |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -35°C |
| Standards Met | UL 94 V-2 |
| Operating Temperature Range | -35 → +80 °C |
