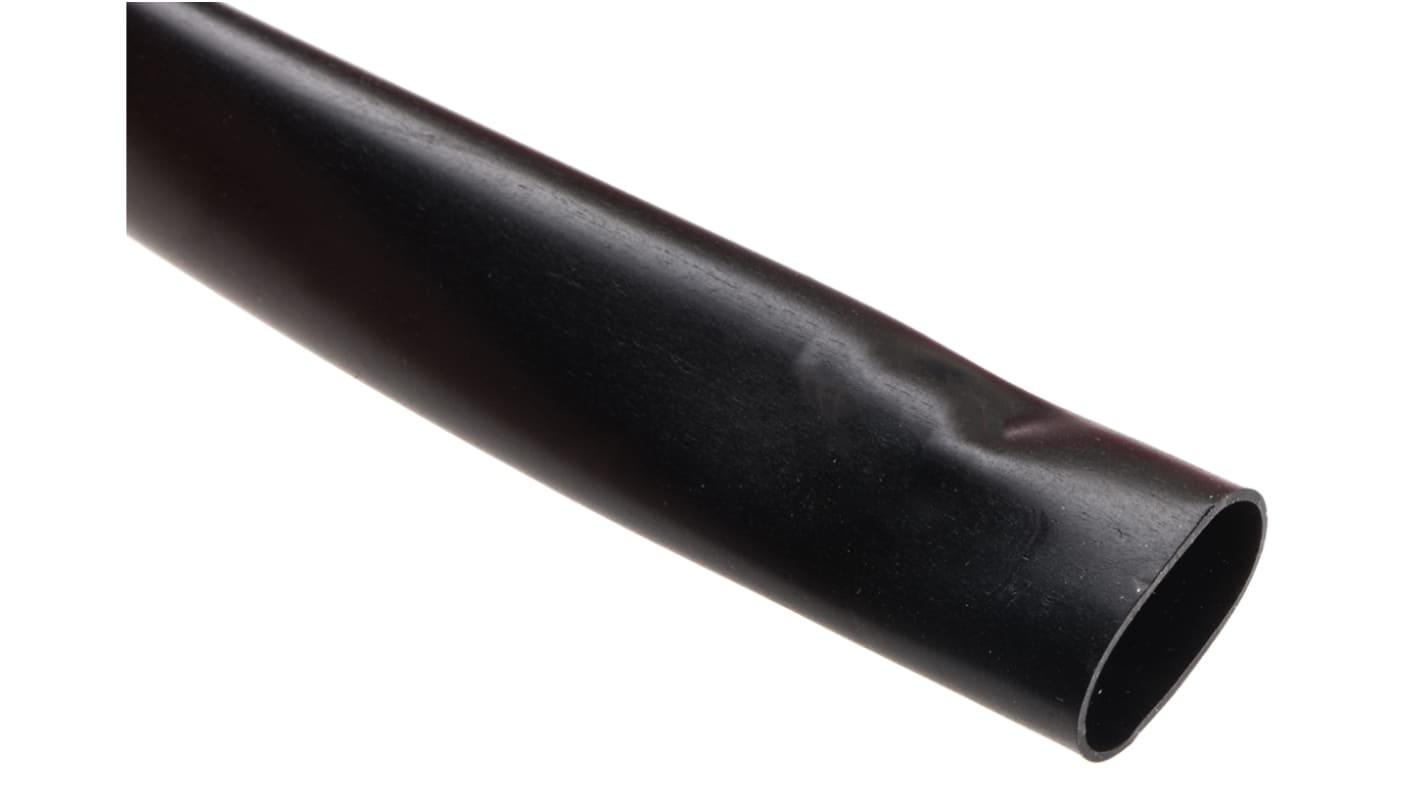

Alpha Wire PVC Black Cable Sleeve
- RS Stock No.:
- 111-9565
- Mfr. Part No.:
- P1051/2A BK005
- Brand:
- Alpha Wire
10 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) 1 Reel of 30 Metre(s)
$130.10
(exc. GST)
$149.62
(inc. GST)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 14 | $130.10 | $4.337 |
| 15 - 49 | $127.81 | $4.26 |
| 50 + | $126.37 | $4.212 |
| *price indicative | ||
- RS Stock No.:
- 111-9565
- Mfr. Part No.:
- P1051/2A BK005
- Brand:
- Alpha Wire
Legislation and Compliance
Product Details
Protective PVC Cable Sleeving
The Alpha Wire multi-purpose protective PVC cable sleeves are moulded from extruded plastic that results in a highly flexible and insulated cable sleeve with excellent mechanical, thermal and electrical properties. The protective tubing remains functional through a large temperature range of -20°C to 105°C and offers high resistance to abrasion, oil and chemicals.
Features and Benefits
• Protective PVC cable sleeves that offers resistance to high heat, oil, abrasion and mould
• Hard-wearing, flexible wire protection
• Can be used in many general applications
• Non-corrosive
Standards
UL Standard 224, ASTM D-876, D-922 MIL-I-631-D, CSA Standard 198
Specifications
Attribute | Value |
|---|---|
| Colour | Black |
| Material | PVC |
| Braided | No |
| Minimum Cable Diameter | 12.7mm |
| Maximum Cable Diameter | 13.3mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +105°C |
| Dielectric Strength | 870V/mm |
| Wall Thickness | 0.63mm |
