Fluke A3001 FC Clamp Meter, Max Current 2.5kA ac CAT III 1000 V, CAT IV 600 V

  • RS Stock No. 811-1331
  • Mfr. Part No. FLK-A3001 FC
  • Manufacturer Fluke
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

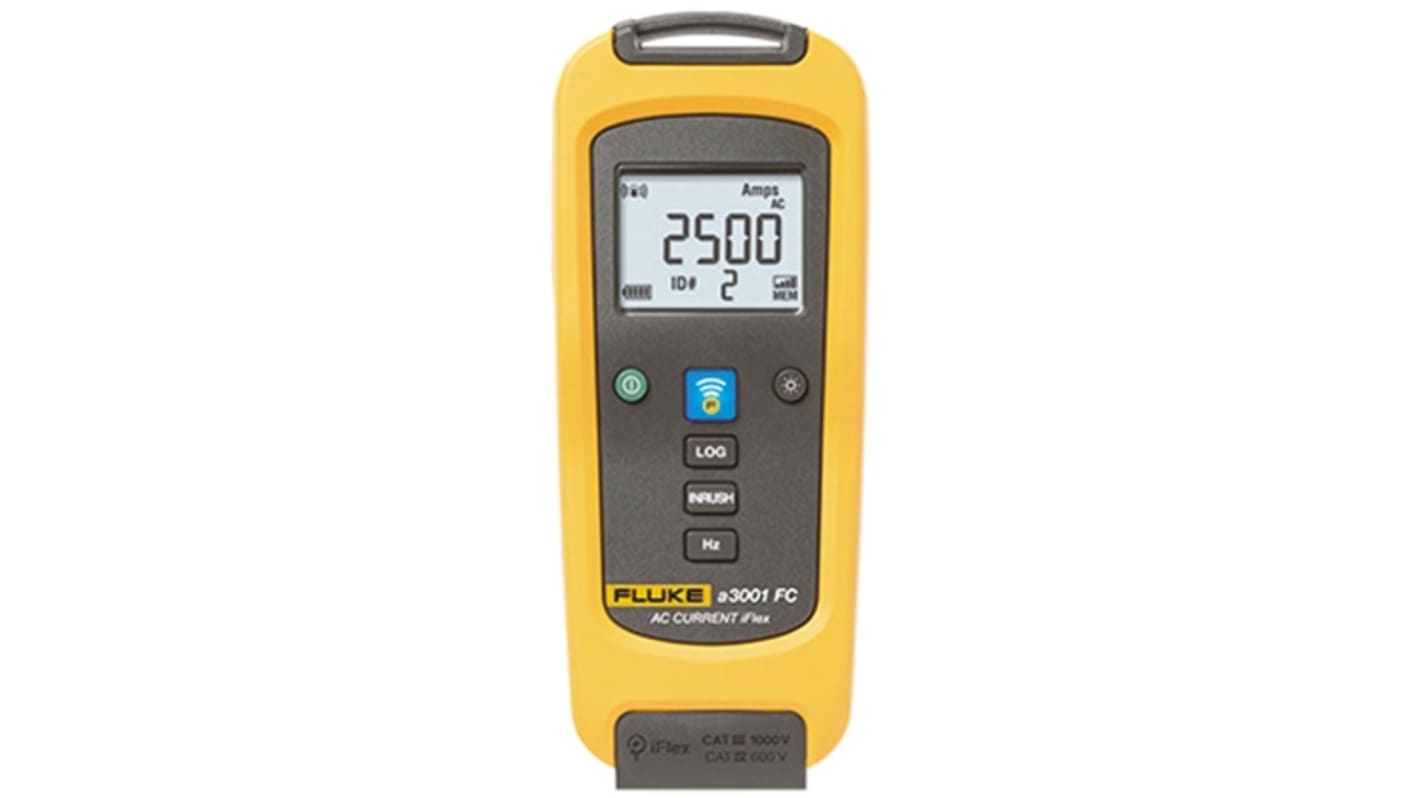

Fluke a3001 FC Wireless iFlex AC Current Module Fluke CONNECT™

The Fluke a3001 FC Wireless iFlex AC Current Module is a fully functional true-RMS current meter that wirelessly relays measurements to other Fluke Connect™ enabled master units.

The iFlex™ Wireless Current Module allows you to measure around awkward sized conductors or get into tight spaces and makes wire access easier
Measure up to 2500 A ac
Use as a standalone meter or as part of the system
Logging function for recording and saving up to
65000 readings
Inrush function

Supplied with

One true-rms flexible current meter and one iFlex i2500-10 Flexible Current Probe.

Fluke Clamp Meter

The Fluke 3000 FC series True-RMS iFlex wireless clamp meter measures the current range between 0.5A to 2500A AC. This kit contains a multimeter, flex clamp module, batteries and other accessories. It allows you to measure awkward sized conductors or get into tight spaces and makes wire access easier.

Supplied with one True-RMS flexible current meter and one iFlex i2500-10 Flexible Current Probe and magnetic hanging strap.
Fluke CONNECT™
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more. Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. (Not compatible with Fluke CNX test tools).

Features and Benefits

• Can be used as a standalone meter or a part of the system
• Logging function for recording and saving up to 65000 readings
• Send data to your laptop and go from logging to analysis and diagnosis
• Record overtime to monitor circuit load changes for an hour, a shift or a week
• Connect the wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data
• Perform for analysis with your PC and share the results using Fluke Cloud™ storage and ShareLive™ video call
• Inrush function
• The safety rating of CAT III 1000V, CAT IV 600V
• LCD w/backlight: 3 1/2 digits
• Operating temperature ranges between -10°C and 50°C

Applications

• Petrochemical industry
• Oil and gas
• Food and beverages
• Pharmaceuticals

Certifications

• CE
• cCSAus
• CSA
• FCC: T68-FBLE
• IC: 6627A-FBLE
• IP42 rated
• EN 61326-1:2013
• IEC 61010-1

Fluke CONNECT™

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field.
The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place.
(Not compatible with Fluke CNX test tools)

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 2.5kA ac
Model Number A3001 FC
Connectivity Wi-Fi
AC Current Measurement Resolution 100mA
Clamp Meter Type Current Clamp
Best AC Current Accuracy ±(3% rdg + 5dgts)
Safety Category Level CAT III, CAT IV
Weight 220g
Jaw Capacity Busbars 254mm
Battery Life 400 h
Height 165mm
Minimum Operating Temperature -10°C
Functions Measured AC Current
True RMS Yes
Dimensions 14 x 63.5 x 165mm
Power Source Battery
Safety Category Voltage 600 V, 1000 V
Width 63.5mm
Battery Type AA
Length 14mm
Maximum Operating Temperature +50°C
Safety Category CAT III 1000 V, CAT IV 600 V
Display Type LCD
