Samtec GRF1-C Series Male MMCX to Male MMCX Coaxial Cable, 300mm, RG316 Coaxial, Terminated

RS Stock No.:: 123-6830
Mfr. Part No.:: GRF1-P-C-06-0300-C1-D-S
Brand:: Samtec

Samtec GRF1-C Series Male MMCX to Male MMCX Coaxial Cable, 300mm, RG316 Coaxial, Terminated

1 In stock for delivery within 7 working day(s)

Added

Price (ex. GST) Each

$376.47

(exc. GST)

$432.94

(inc. GST)

Units	Per unit
1 - 24	$376.47
25 - 49	$365.19
50 - 99	$353.91
100 - 249	$346.40
250 +	$338.83

RS Stock No.:: 123-6830
Mfr. Part No.:: GRF1-P-C-06-0300-C1-D-S
Brand:: Samtec

Technical data sheets

6 way ganged MMCX cable assembly 300mm drawing

Legislation and Compliance

Product Details

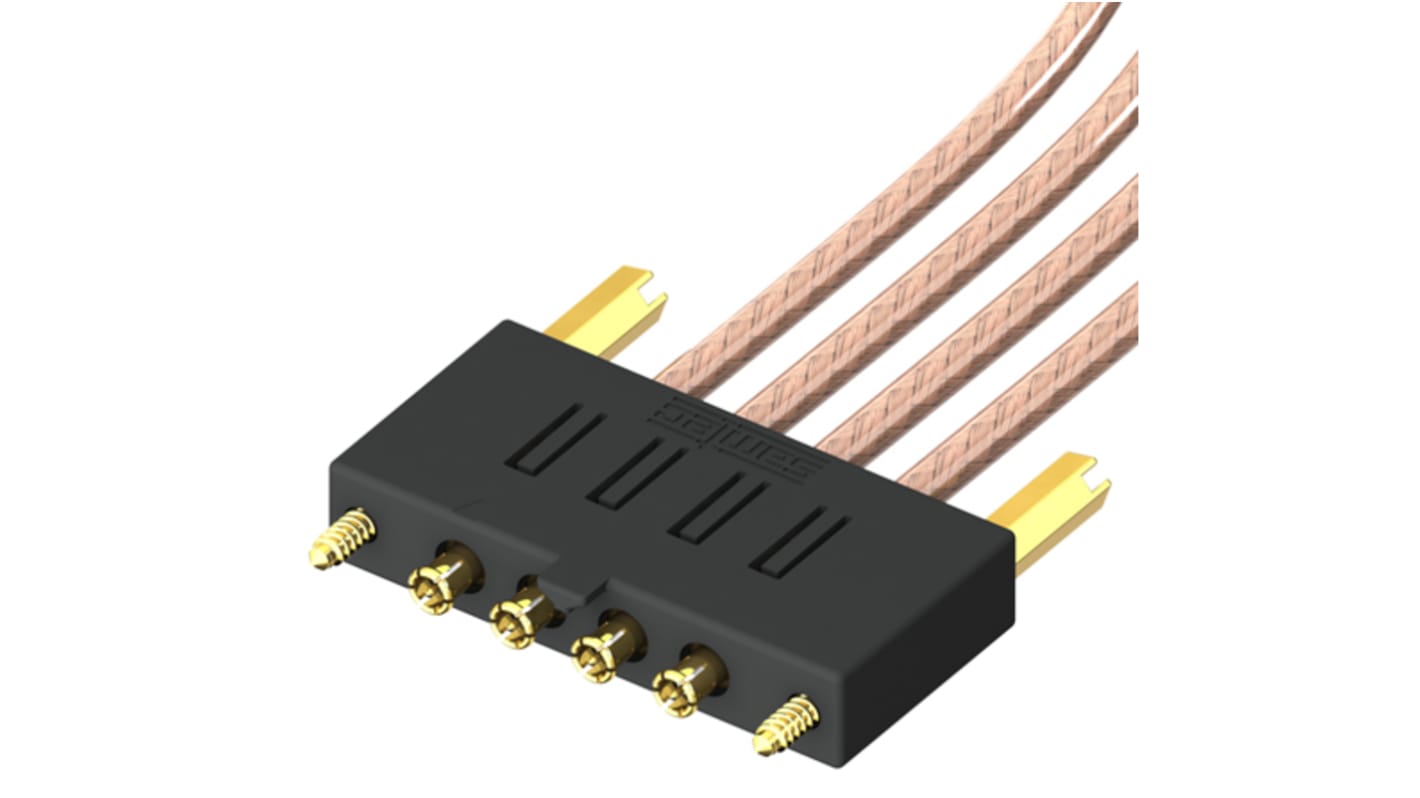

Samtec Ganged MMCX Cable Assemblies

From Samtec, a range of ganged micro-mini MMCX RF cable assemblies. The 50ohm MMCX cable assemblies are constructed from RG 316 cable and have double ended ganged plugs housed in robust polycarbonate housings. One end supplied with captive panel screws. The MMXC connections feature a snap together design allowing for 360° rotation when mated. Ideal for space critical applications. Available in various lengths and number of positions. Mates with GRF1J series MMCX jacks, typical part number 123-6808

Features and Benefits

Multiple positions
Micro miniature size
Reliable snap together connection
Durable polycarbonate housings

Applications

WiFi
GPS
PCMCIA

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Samtec MMCX

Specifications

Attribute	Value
Terminated/Unterminated	Terminated
Connector 1	MMCX
Coaxial Type	RG316
Connector 2	MMCX
Connector 1 Gender	Male
Connector 2 Gender	Male
Characteristic Impedance	50 Ω
Length	300mm
Current Rating	5 A
Sheath Colour	Amber
Operating Temperature Range	-40 → +90 °C
Standards Met	cULus Recognised
Maximum Operating Temperature	+90°C
Minimum Operating Temperature	-40°C
Conductor Material	Silver Plated Copper
Insulation Material	PTFE
Shielding	Silver Plated Copper Clad Steel
Series	GRF1-C
