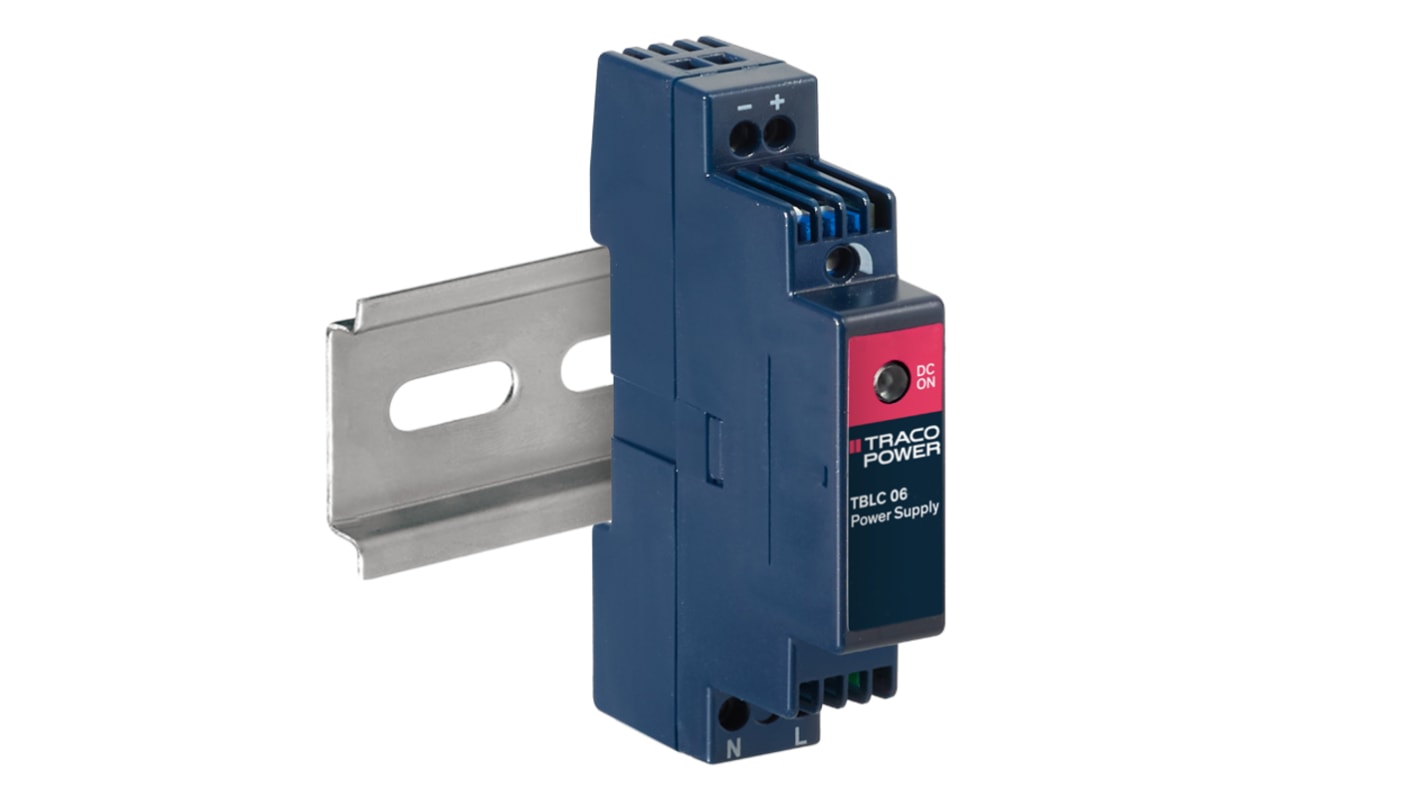

TRACOPOWER TBLC 06 DIN Rail Power Supply, 85 → 264V ac ac Input, 5V dc dc Output, 1.2A Output, 6W
- RS Stock No.:
- 125-8540
- Mfr. Part No.:
- TBLC 06-105
- Brand:
- TRACOPOWER
98 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each
$96.21
(exc. GST)
$110.64
(inc. GST)
| Units | Per unit |
| 1 - 4 | $96.21 |
| 5 + | $79.19 |
- RS Stock No.:
- 125-8540
- Mfr. Part No.:
- TBLC 06-105
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Traco Power DIN Rail Power Supply, Single Output, Screw Terminal Connection - TBLC Series - TBLC 06-105
Need a flexible way to energise your electrical kit? This 6W DIN rail power supply from Traco Power does the job. It turns inputs in a broad range between 85 and 264V AC into a stable DC output of 5V and 1.2A. Thanks to its 74% efficiency rating, you can be sure minimal energy is wasted as heat during conversion. The rail mounting style means you can slot the unit into racks, panels, enclosures and control cabinets for versatile installation. As this hardy choice withstands temperatures from -25°C to +70°C, it's reliable in harsh work areas.
Features & Benefits
• IP20 rating means it's touch-proof and shielded from objects larger than 12mm for safe maintenance
• Highly reliable thanks to a mean time between failures of 1.9 million hours
• Low weight of 60g adds minimal pressure to your DIN rail
• Hassle-free status monitoring with a built-in green LED indicator
• Tested up to 3,000V AC for protection from voltage surges
• Highly reliable thanks to a mean time between failures of 1.9 million hours
• Low weight of 60g adds minimal pressure to your DIN rail
• Hassle-free status monitoring with a built-in green LED indicator
• Tested up to 3,000V AC for protection from voltage surges
Applications
• Process control
• Power distribution
• Home appliances
• Power distribution
• Home appliances
Can I mount this unit in a flat rack?
Yes. It has compact dimensions of 59.5 (L) x 18 (W) x 89.5mm (D) so you can easily mount it in a flat rack.
Specifications
Attribute | Value |
|---|---|
| Type | DIN Rail Power Supply |
| Output Voltage | 5V dc |
| Output Current | 1.2A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Power Rating | 6W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 59.5mm |
| Width | 18mm |
| Depth | 89.5mm |
| Series | TBLC 06 |
| MTBF | 1900kh |
| Ripple And Noise | 50mV Pk-Pk |
| Output Voltage Adjustment Range | 5 → 5.5V |
| Efficiency | 74% |
| Minimum Temperature | -25°C |
| Mounting Type | DIN Rail Mount |
| Special Features | Adjustable Output Voltage, Compliant to New Standby Power & Efficiency Requirements, Low Output Ripples & Spikes |
| Load Regulation | 0.3% |
| Maximum Temperature | +70°C |
| Standards Met | ErP Compliant |
