- RS Stock No.:
- 125-8553
- Mfr. Part No.:
- TBLC 90-112
- Brand:
- TRACOPOWER
- RS Stock No.:
- 125-8553
- Mfr. Part No.:
- TBLC 90-112
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

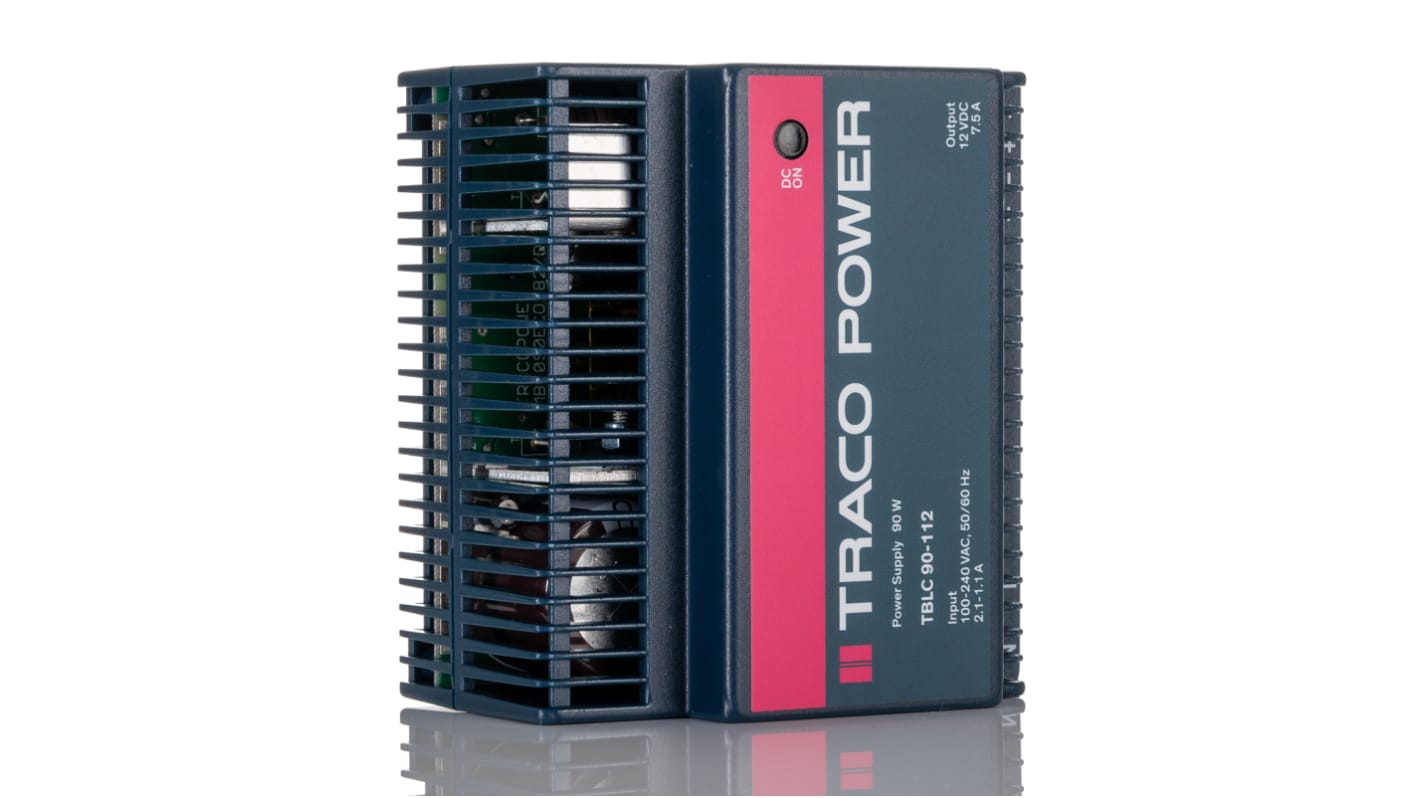

Traco Power DIN Rail Power Supply, Screw Terminals, 90% Efficiency - TBLC Series - TBLC 90-112
Get your electrical source into shape with this DIN rail power supply from Traco Power. It steps down wide-ranging input voltages to a steady 12V DC output to keep your applications running smoothly and safely. By converting 90% of loads, this unit cuts down on waste to deliver energy-efficient power distribution. Installation in a cabinet is a breeze as it simply snaps onto a DIN rail. As it comes with integrated short-circuit protection, this device shuts down if a fault pops up to prevent damage to downstream equipment.
Features & Benefits
• Ripple voltage of 50mV to minimise risk of electrical interference
• Compact dimensions of 59.5 (L) x 90 (W) x 89.5mm (D), so it slips easily into busy setups
• Insulating plastic casing for safe handling
• Screw terminals clamp conductors in place to make reliable connections
• LED power indicator clearly signals the input status
• Compact dimensions of 59.5 (L) x 90 (W) x 89.5mm (D), so it slips easily into busy setups
• Insulating plastic casing for safe handling
• Screw terminals clamp conductors in place to make reliable connections
• LED power indicator clearly signals the input status
Applications
• Food processing facilities
• Packaging plants
• Textile manufacturing
• Energy industry
• Packaging plants
• Textile manufacturing
• Energy industry
Will this power supply work with my system's unstable mains connection?
Yes, this product works with source voltages between 85 and 264V AC, so it handles input changes without a problem.
Specifications
Attribute | Value |
---|---|
Type | Power Supply |
Output Voltage | 12V dc |
Output Current | 7.5A |
AC or DC Input Voltage | ac |
AC or DC Output Voltage | dc |
Input Voltage | 85 → 264V ac |
Power Rating | 90W |
Electrical Phase | 1 |
Number of Outputs | 1 |
Height | 89.5mm |
Width | 59.5mm |
Depth | 90mm |
Series | TBLC |
Ripple And Noise | 50mV Pk-Pk |
Efficiency | 90% |
Minimum Temperature | -25°C |
Output Voltage Adjustment Range | 12 → 16V |
Load Regulation | 0.3% |
Mounting Type | DIN Rail Mount |
MTBF | 1900000h |
Special Features | Adjustable Output Voltage, Compliant to New Standby Power & Efficiency Requirements, Low Output Ripples & Spikes |
Standards Met | ErP Compliant |
Maximum Temperature | +70°C |
