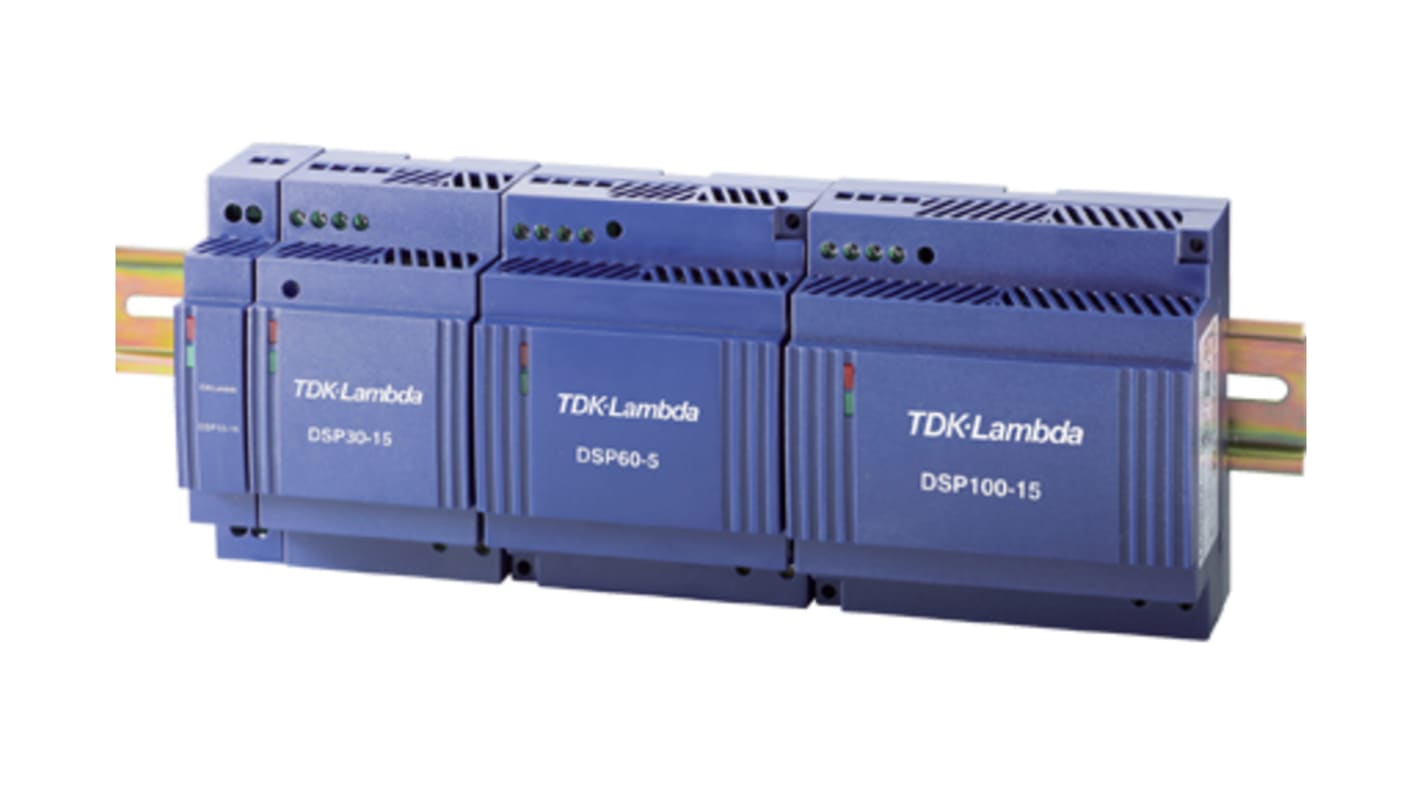

TDK-Lambda DSP Switched Mode DIN Rail Power Supply, 90 → 264 V ac / 120 →370V dc ac, dc Input, 24V dc dc

RS Stock No.:: 168-2958
Distrelec Article No.:: 300-87-665
Mfr. Part No.:: DSP-100-24/C2
Brand:: TDK-Lambda

TDK-Lambda DSP Switched Mode DIN Rail Power Supply, 90 → 264 V ac / 120 →370V dc ac, dc Input, 24V dc dc

Subtotal (1 unit)**

$144.40

(exc. GST)

$166.06

(inc. GST)

22 In stock for delivery within 7 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80 ex GST

Units	Per unit
1 +	$144.40

**price indicative

RS Stock No.:: 168-2958
Distrelec Article No.:: 300-87-665
Mfr. Part No.:: DSP-100-24/C2
Brand:: TDK-Lambda

Datasheet

Attribute	Value
Series	DSP
Type	Switched Mode
Electrical Phase	1
AC or DC Input Voltage	ac, dc
Number of Outputs	1
Input Voltage	90 → 264 V ac / 120 →370V dc
AC or DC Output Voltage	dc
Output Voltage	24V dc
Output Current	3.8A
Power Rating	100W
Dimensions	89.9 x 56.8 x 91mm
Width	89.9mm
Depth	56.8mm
Height	91mm
Standards Met	CE, EN 55022, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-6, UL 1310 Class 2, UL 508, UL 60950-1, UL 94 V-0
Maximum Temperature	+71°C
Ripple And Noise	50mV
Minimum Temperature	-25°C
Output Voltage Adjustment Range	20 → 24.2V
Load Regulation	1%
Mounting Type	DIN Rail Mount

TDK-Lambda DSP Switched Mode DIN Rail Power Supply, 90 → 264 V ac / 120 →370V dc ac, dc Input, 24V dc dc
