RS PRO Panel Mount Multi Tone Alarm Sounder, 9 → 28 V dc, 92dB at 1 m, IP65, DC, 32-Tone

RS Stock No.:: 264-9557
Brand:: RS PRO

RS PRO Panel Mount Multi Tone Alarm Sounder, 9 → 28 V dc, 92dB at 1 m, IP65, DC, 32-Tone

224 In stock for delivery within 7 working day(s)

Added

Price (ex. GST) Each

$46.04

(exc. GST)

$52.95

(inc. GST)

units	Per unit
1 +	$46.04

RS Stock No.:: 264-9557
Brand:: RS PRO

Technical data sheets

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

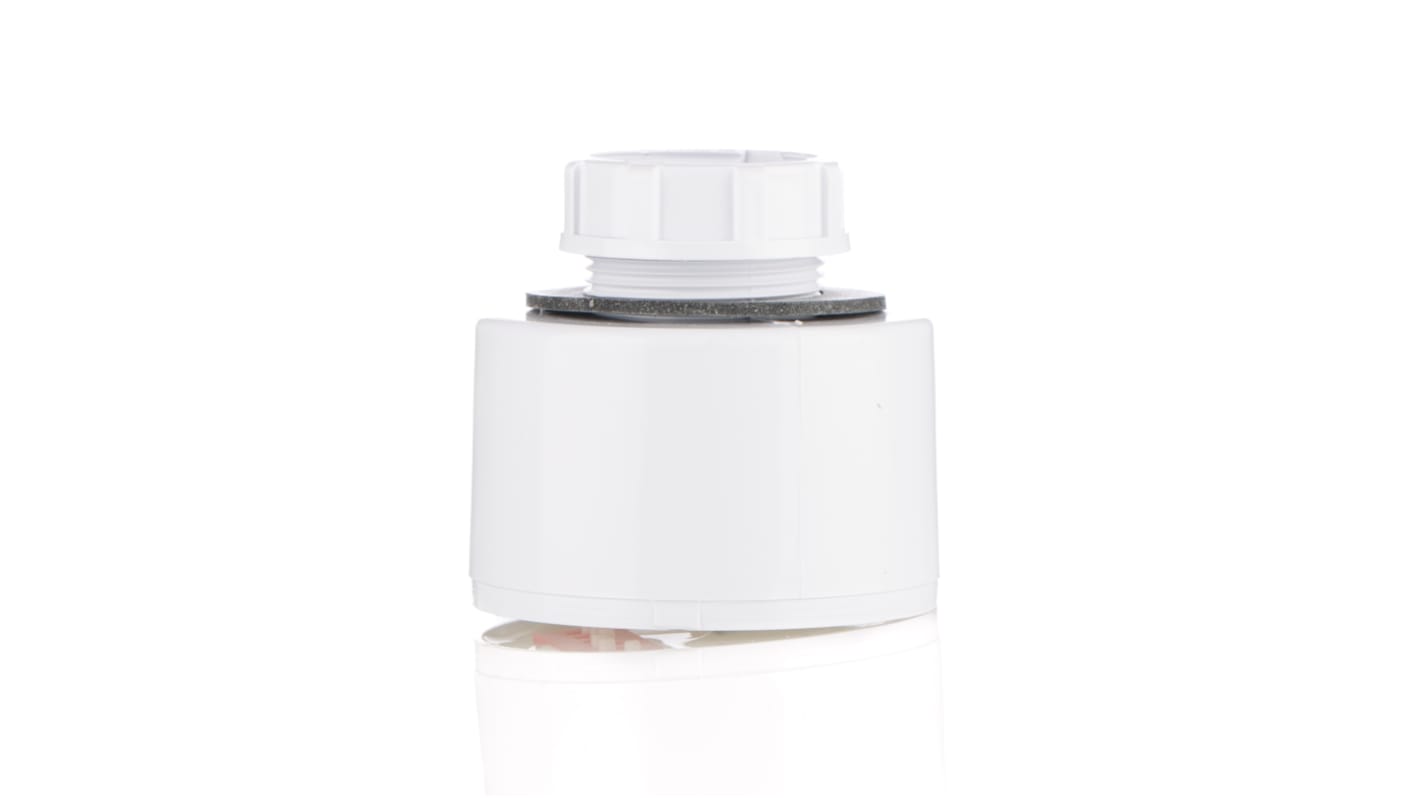

RS PRO Panel Mount Multi-Tone Alarm Sounder

Get peace of mind with the RS PRO Multi-Tone Alarm Sounder. Easy to install and with 32 selectable tones, you can customise your security system to fit your needs. Quickly switch between primary and secondary tones, keeping your property safe and secure. Choose the perfect audio signal for any application with the RS PRO Multi-Tone Alarm Sounder.

Why Would You Choose This Alarm Sounder?

Our alarm sounder is fitted with an adjustable volume control, adjusted from 67dB to 92 dB. The "9-28VDC" specification indicates the range of voltage that the sounder operates onin this case a direct current (DC) power source

Features and Benefits

White in colour, the sounder has an aesthetically pleasing finish

Tone selectable switch and volume control options

Easily to install into control enclosures

ABS construction, strong resistance to corrosive chemicals and physical impacts

Excepts most DC supplies

Option to use internally or externally

Dedicated panel fixing

32 tones, the tones are compatible with Roshni, Squashni and Flashni sounders

Offers a second tone for a two-stage alarm

ABS construction, strong resistance to corrosive chemicals and physical impacts

92dBA sound output at 24VDC

Automatic synchronisation

Current rating: 18mA

Voltage rating: 9VDC to 28VDC

IP65 rating

Specifications

Casing Material: ABS

Electrical connection: 3 Wire flying leads version

Housing Colour: White

Diameter: 50 mm

Weight: 0.09kg

Fully sealed IP65 protection

Variants – Available Separately

RS PRO Multi-Tone Alarm Sounder, 9-28VAC/DC - RS stock no: 264-9555

RS PRO Multi-Tone Alarm Sounder, 9-28VDC - RS stock no: 264-9557

Applications

Control Panels

Electrical Enclosures

FAQs

Can I use this sounder in harsh conditions?
Yes – this sounder operates in temperatures ranging from -25°C to +70°C so it's suitable for use in heavy-duty indoor and outdoor settings. The housing is made from rugged ABS (acrylonitrile butadiene styrene), which is resistant to corrosives and chemicals.

Can I change the volume on this electronic sounder?
Yes. This electronic sounder has both tone-select and volume-control options.
