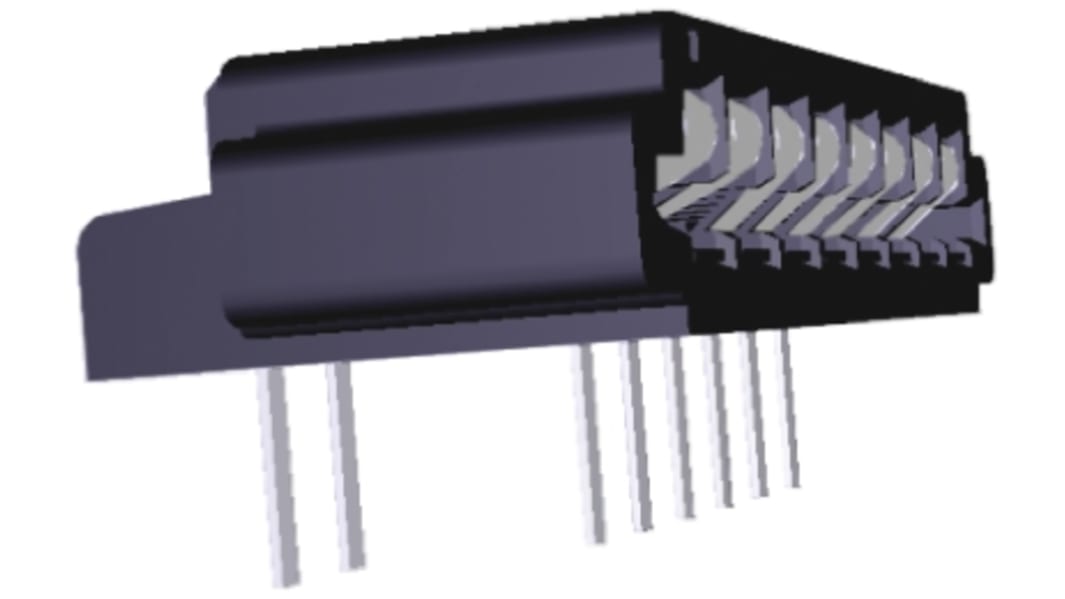

TE Connectivity, Trio-Mate 2.54mm Pitch 7 Way Straight Female FPC Connector, Top Contact
- RS Stock No.:
- 793-6962
- Mfr. Part No.:
- 5-520314-7
- Brand:
- TE Connectivity
On back order for despatch 02/09/2024, delivery within 7 working days from despatch date.
Added
Price (ex. GST) Each (In a Pack of 5)
$1.522
(exc. GST)
$1.75
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 175 | $1.522 | $7.61 |
| 180 - 355 | $1.486 | $7.43 |
| 360 + | $1.146 | $5.73 |
| *price indicative | ||
- RS Stock No.:
- 793-6962
- Mfr. Part No.:
- 5-520314-7
- Brand:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
TE Connectivity Trio-Mate Flexible Film Connectors
Trio-Mate flexible film connectors with a 2.54mm centerline. These Trio-Mate receptacle connectors accept Flat Flexible Cable (FFC), flexible etched circuitry (FPC) or membrane switch circuitry 0.13 to 0.38 mm thick in the contact area. The Trio-Mate flexible film connector has a high extraction force and are reusable 25 times with the same cable thickness. All these Trio-Mate FFC/FPC connectors are preloaded with socket contacts and have black UL 94V-0 thermoplastic housings and are available in vertical and right angle cable mount styles.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
2.54mm Tyco AMP Trio-Mate FFC range
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 7 |
| Contact Material | Phosphor Bronze |
| Pitch | 2.54mm |
| Mounting Type | Through Hole |
| Gender | Female |
| Termination Type | Top Contact |
| Body Orientation | Straight |
| Current Rating | 1A |
| Voltage Rating | 250 V ac |
| Series | Trio-Mate |
| Number of Rows | 1 |
| Termination Method | Solder |
| Contact Plating | Tin |
| Housing Material | Thermoplastic |
