Rose Polyester Standard Series Grey Glass Fibre Reinforced Polyester Enclosure, IP66, IK08, Grey Lid, 320 x 100 x 81mm
- RS Stock No.:
- 229-1371
- Mfr. Part No.:
- 02103208
- Brand:
- Rose
On back order for despatch 25/06/2024, delivery within 7 working days from despatch date.
Added
Price (ex. GST) Each
$110.68
(exc. GST)
$127.28
(inc. GST)
| Units | Per unit |
| 1 - 24 | $110.68 |
| 25 - 49 | $108.37 |
| 50 + | $105.88 |
- RS Stock No.:
- 229-1371
- Mfr. Part No.:
- 02103208
- Brand:
- Rose
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
ROSE Grey Glass Fibre-Reinforced Polyester Enclosure, 100mm Height, 320mm Width - Polyester Standard Series - 02103208
Use this enclosure from ROSE to house your tools and electrical equipment. A wide operating temperature range between -40°C and +100°C means it's safe to use in demanding environments. It's designed for mounting on a DIN rail or a mounting plate for flexible installation. The box has a tough glass fibre-reinforced polyester exterior for resistance to impact and wear. It's sealed with a chloroprene gasket that prevents contaminants from damaging your sensitive devices.
Features & Benefits
• IP66 (ingress protection) rating means it's dustproof and protected against high-pressure water jets
• Fully insulated to protect you from electric shock
• Halogen-free to prevent toxic fumes in the event of a fire
• Broad external dimensions of 100 (height) x 320 (width) x 81mm (depth) offer ample space for storing multiple components
• Fully insulated to protect you from electric shock
• Halogen-free to prevent toxic fumes in the event of a fire
• Broad external dimensions of 100 (height) x 320 (width) x 81mm (depth) offer ample space for storing multiple components
Applications
• Food production and packaging
• Oil and gas industry
• Construction sites
• Oil and gas industry
• Construction sites
Is this enclosure protected against tampering?
Yes, this enclosure is supplied with captive screws that allow you to fix the lid securely in place. This helps to prevent unauthorised personnel from tampering with the equipment inside the enclosure.
Specifications
Attribute | Value |
|---|---|
| Body Material | Glass Fibre Reinforced Polyester |
| External Length | 320 mm |
| External Height | 81 mm |
| External Width | 100 mm |

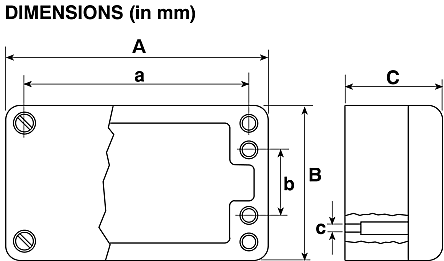

| External Dimensions | 320 x 100 x 81mm |
| Range | Polyester Enclosure |
| IP Rating | IP66 |
| Colour | Grey |
| Lid Colour | Grey |
| Flanged | No |
| Hazardous Area Certification | Lloyds Register, Maritime Register, UL 508 |
| Shielded | No |
| Series | Polyester Standard |
| Number Of Knockouts | 0 |
| IK Rating | IK08 |
| Transparent Door | No |
| Weight | 1300g |
| RAL Code | RAL 7000 |
| Gasket Material | Chloroprene |
