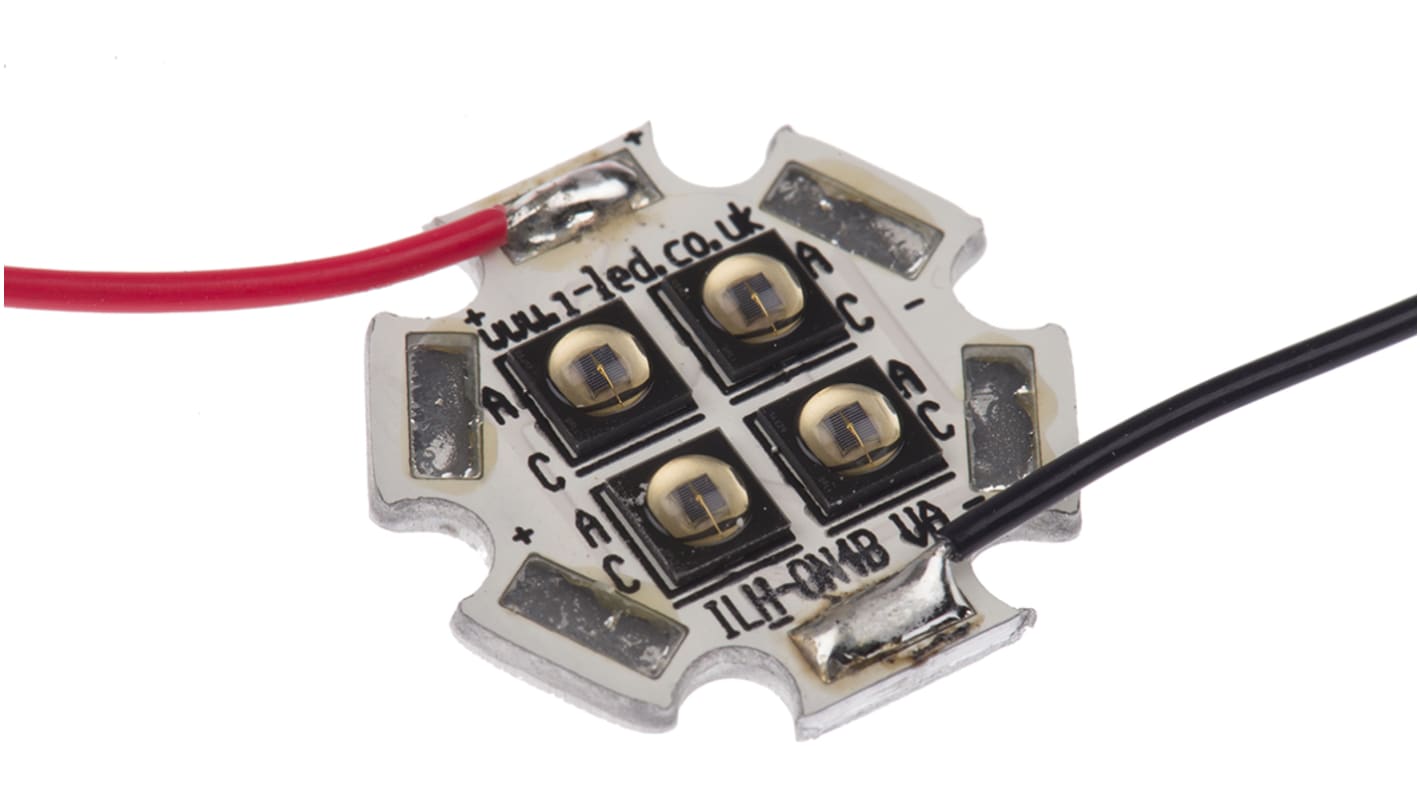

ILH-IW04-85SL-SC211-WIR200. ILS, OSLON Black PowerStar 850nm IR LED Module, PCB SMD package
- RS Stock No.:
- 796-1763
- Mfr. Part No.:
- ILH-IW04-85SL-SC211-WIR200.
- Brand:
- Intelligent LED Solutions
On back order for despatch 29/04/2024, delivery within 7 working days from despatch date.
Added
Price (ex. GST) Each
$84.77
(exc. GST)
$97.49
(inc. GST)
| Units | Per unit |
| 1 - 9 | $84.77 |
| 10 - 49 | $84.37 |
| 50 + | $83.64 |
- RS Stock No.:
- 796-1763
- Mfr. Part No.:
- ILH-IW04-85SL-SC211-WIR200.
- Brand:
- Intelligent LED Solutions
Technical data sheets
Legislation and Compliance
Product Details
PowerStar Wide IR LED Arrays - IR OSLON Black
The Intelligent LED Solutions IR PowerStar Wide-angle LED modules utilise the OSRAM Opto IR Oslon® Black Series LEDs – the smallest infrared LEDs with more than one watt of optical power currently available. The small integrated-lens package allows superior and highly compact arrangements of very high power density. These LED light sources are constructed on aluminium substrates for durability and optimal thermal management; they are supplied with 200mm connecting wires as standard. Typical applications include surveillance and security systems, IR illumination for cameras, machine vision, night vision lighting and driver assistance systems.
The Oslon® 1 IR PowerStar contains a single IR Oslon Black Series LED
The Oslon® 4 IR PowerStar contains four IR Oslon Black Series LEDs
Integrated silicon lens provides 150° half-power radiation angle
Up to 100,000 hour operating life to 70% of original brightness
Multiple PowerStar modules can be linked together to produce longer chains
Current range 100 to 1000mA, up to 5A pulsed
Mounting holes using M3 screws allows easy installation
Size (L x W x H):
— PowerStar 20 x 20 x 3.5mm
For suitable Heat Sinks see typically 780-5893, 780-5938 etc.
For suitable Power Supplies see 736-2368, 780-5798, 780-5792 etc.
The Oslon® 4 IR PowerStar contains four IR Oslon Black Series LEDs
Integrated silicon lens provides 150° half-power radiation angle
Up to 100,000 hour operating life to 70% of original brightness
Multiple PowerStar modules can be linked together to produce longer chains
Current range 100 to 1000mA, up to 5A pulsed
Mounting holes using M3 screws allows easy installation
Size (L x W x H):
— PowerStar 20 x 20 x 3.5mm
For suitable Heat Sinks see typically 780-5893, 780-5938 etc.
For suitable Power Supplies see 736-2368, 780-5798, 780-5792 etc.
Caution
Depending on the mode of operation, these devices emit highly concentrated non-visible infrared light which can be hazardous to the human eye.
Warning
PowerStar & PowerCluster IR LED modules will overheat in operation if not attached to a suitable Heat Sink. Over-heating can cause failure or irreparable damage. These IR LED modules should only be used with current-limited power supplies. Connection to constant voltage Power Supplies that are not current limited may cause excessive current above the specified maximum and cause failure or irreparable damage.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Intelligent LED Solutions (ILS) IR LED Arrays
Specifications
Attribute | Value |
|---|---|
| Peak Wavelength | 850nm |
| Package Type | PCB |
| Radiant Flux | 4120mW |
| Radiant Intensity | 4120 mW |
| Mounting Type | Surface Mount |
| Number of LEDs | 4 |
| Dimensions | 20 x 20 x 3.5mm |
| Lens Shape | Dome |
| Series | OSLON Black PowerStar |
