IP65 Key Switch, 5 A @ 250 V ac 2-Way
- RS Stock No.:
- 745-2439
- Brand:
- RS PRO
2 in Global stock for delivery within 1 working day (+3 days for regional areas).
238 in Global stock for delivery within 7 working day (+3 days for regional areas).
Added
Price (ex. GST) Each
$21.56
(exc. GST)
$24.79
(inc. GST)
| Units | Per unit |
| 1 - 4 | $21.56 |
| 5 + | $17.73 |
- RS Stock No.:
- 745-2439
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

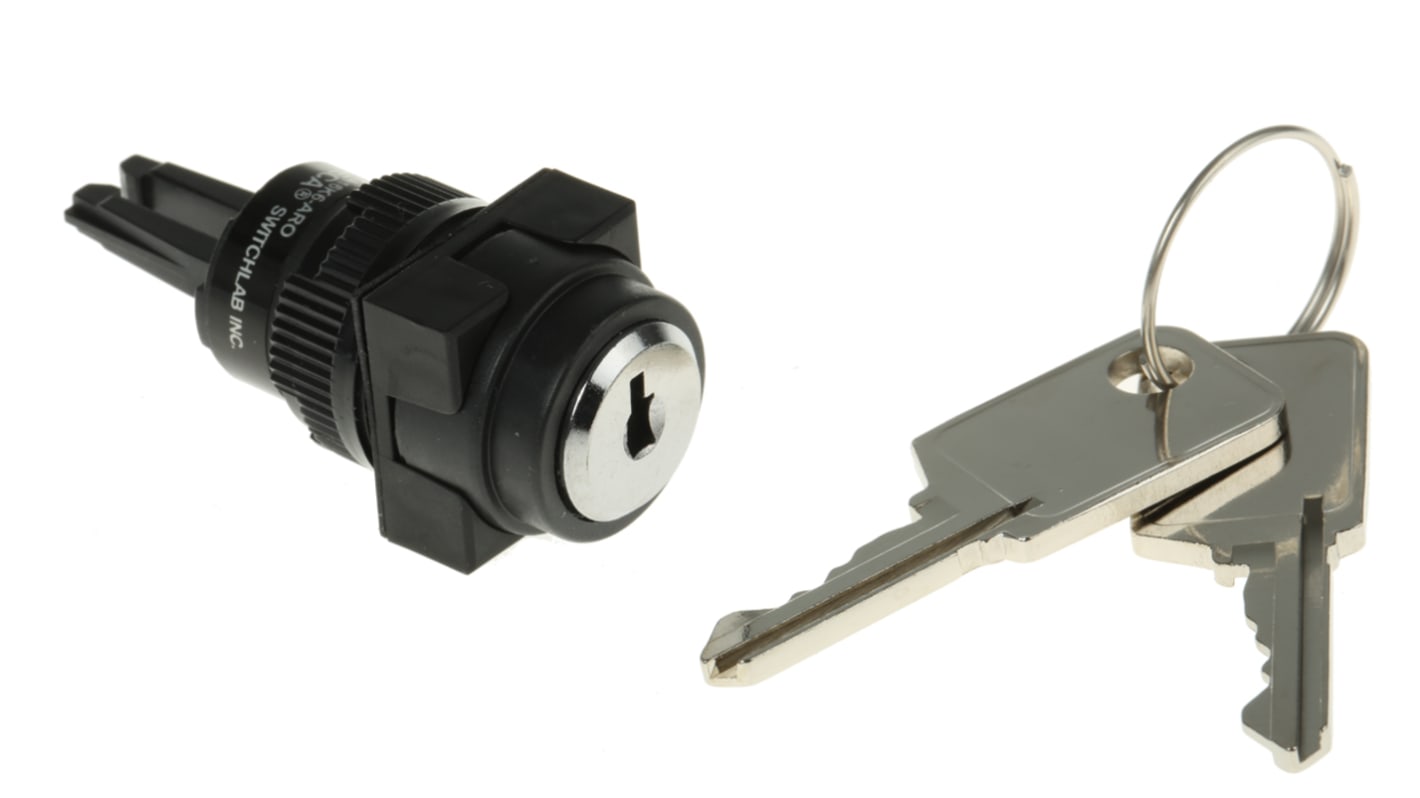

RS PRO IP65 2-Way Key Switch, 5 A at 250 V AC
Do you need to restrict access to your electrical systems? This two-way key switch from RS PRO is a reliable choice. A switch like this one is often used for controlling access to powered equipment used in public spaces, such as shop-front roller shutters.
This key switch fits a 16 mm diameter cut-out on any industry-standard panel. It comes supplied with two keys, so you can either provide access to two users or keep a spare. The silver contacts are highly rust and corrosion-resistant for a longer-lasting product.
This component has been tested by engineers for safety and efficacy. It's suitable for both indoor and outdoor installation, as its IP65 rating means it's protected against water jets from any angle.
This key switch fits a 16 mm diameter cut-out on any industry-standard panel. It comes supplied with two keys, so you can either provide access to two users or keep a spare. The silver contacts are highly rust and corrosion-resistant for a longer-lasting product.
This component has been tested by engineers for safety and efficacy. It's suitable for both indoor and outdoor installation, as its IP65 rating means it's protected against water jets from any angle.
Features and Benefits
- Square bezel shape
- Key index angle of 90°
- Silver contact material
- Operating temperature range of -25°C to +55°C
- Contact current rating of 5 A at 250 V AC
- Two positions
- Latching switch operation
- Ingress Protection (IP) rating of IP65
- Tab terminal
- Voltage rating of 250 V AC and 30 V DC
- Mechanical life of >200,000 operations
- Meets US (UL) and Canadian (cUL) Underwriters' Laboratories, Verband Deutscher Elektrotechniker (VDE) and European Norms Electrical Certification (ENEC) standards
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 2 |
| Switch Operation | Latching |
| Contact Current Rating | 5 A @ 250 V ac |
| IP Rating | IP65 |
| Terminal Type | Tab |
| Bezel Shape | Square |
| Key Index Angle | 90° |
| Contact Material | Silver |
| Maximum Operating Temperature | +55°C |
| Standards Met | cUL, ENEC, UL, VDE |
| Voltage Rating AC | 250V |
| Operating Temperature Range | -25 → +55°C |
| Minimum Operating Temperature | -25°C |
| Mechanical Life | >200000Operations |
| Voltage Rating DC | 30V |
