IP40 Key Switch, DPDT, 5 A 2-Way
- RS Stock No.:
- 877-1943
- Brand:
- RS PRO
72 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each
$47.09
(exc. GST)
$54.15
(inc. GST)
| Units | Per unit |
| 1 - 24 | $47.09 |
| 25 - 49 | $45.33 |
| 50 - 99 | $43.46 |
| 100 - 499 | $42.34 |
| 500 + | $34.86 |
- RS Stock No.:
- 877-1943
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

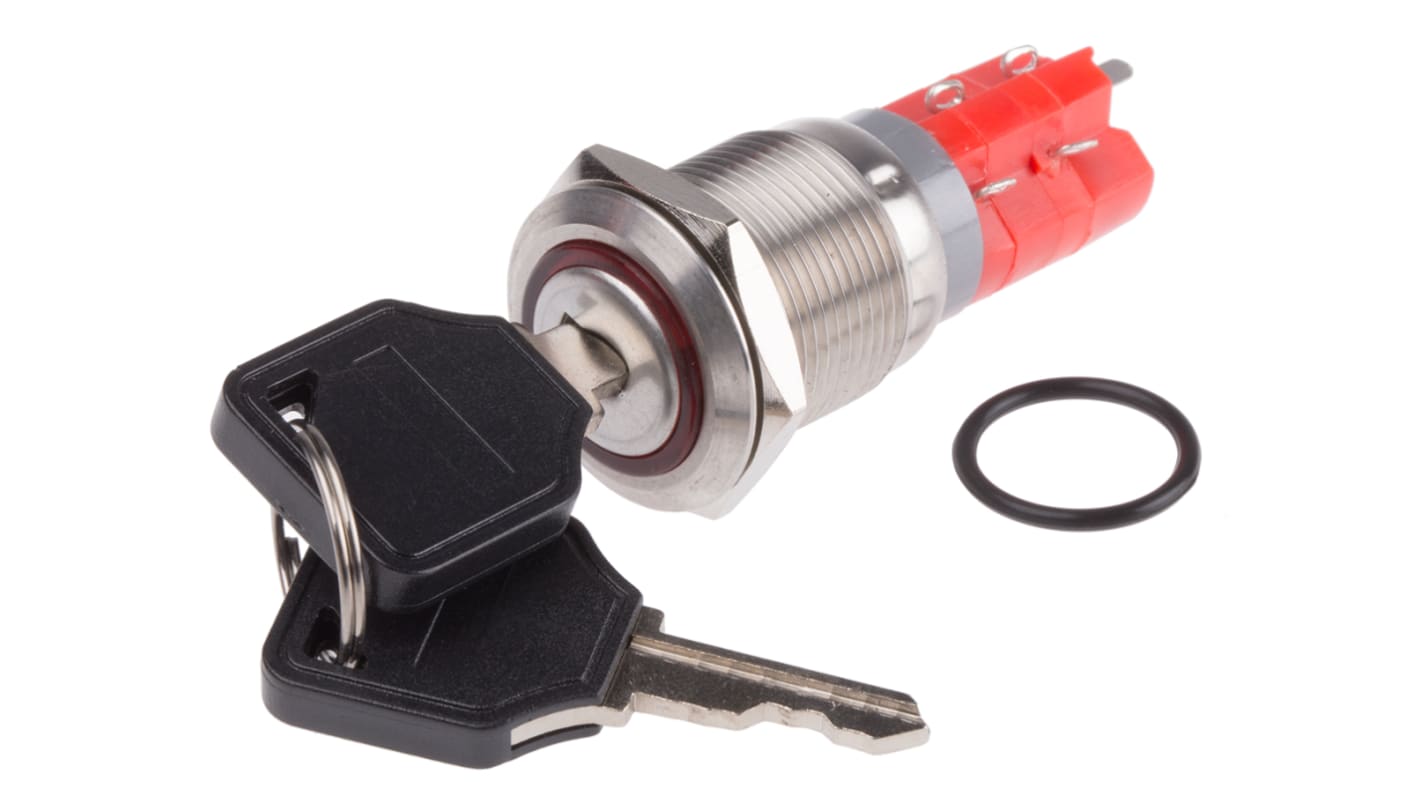

19mm Anti-Vandal Key Lock Switches
Anti-vandal key lock switches with ring for location or power indication, various colours are available.The switches have an impact resistance rating of IK03, and a front panel protection rating of IP40. They are fitted with an LED resistor to protect from forward voltage fluctuations.The switch body and button are construction from varnished stainless steel.
"Electrical life: 50000 make and break operations at full load
Panel cut-out diameter: 19.2 mm
Keys can be removed in all positions
Panel cut-out diameter: 19.2 mm
Keys can be removed in all positions
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 2 |
| Switch Operation | Latching |
| Contact Configuration | DPDT |
| Contact Current Rating | 5 A |
| IP Rating | IP40 |
| Terminal Type | Solder |
| Case Material | Stainless Steel |
| Bezel Shape | Round |
| Depth Behind Panel | 48.5mm |
| Key Index Angle | 90° |
| Contact Material | Silver |
| Voltage Rating DC | 30V |
| Voltage Rating AC | 250V |
| Standards Met | CE, cUL, UL |
| Maximum Operating Temperature | +55°C |
| Mechanical Life | 50000Operations |
| Operating Temperature Range | -20 → +55°C |
| Minimum Operating Temperature | -20°C |
