Fluorescent T8/T12 Lamp Holder Snap-Fit - 26.290.4012.50

  • RS Stock No. 270-1569
  • Mfr. Part No. 26.290.4012.50
  • Manufacturer BJB
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

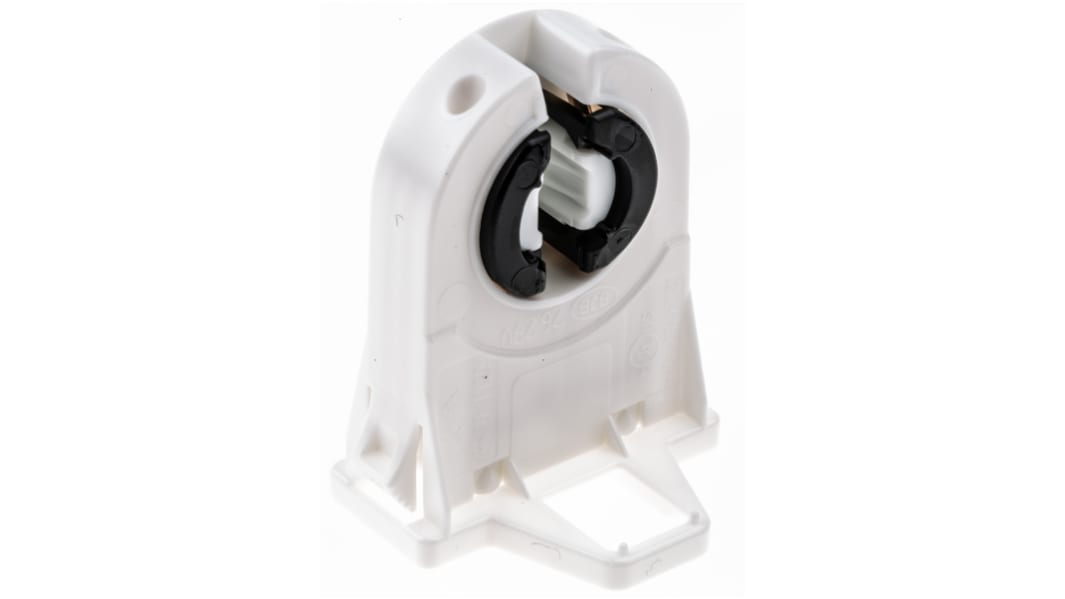

T8/T12 Snap-Fit Lamp Holder

A range of White BJB T8/T12 fluorescent lamp holders with push fit mounting for enclosed cut-outs. These snap-fit lamp holders are designed for the best possible fit in the metal luminaire housing. The snap-in elements accommodate for different metal thicknesses and a secure easy fit to assembly. The housing material and Airpass-Rotor feature makes the T8/T12 bottom wiring lamp holder ideally practical and cost friendly. Giving you confidence that the holder has optimal heat dissipation and a secure lamp fit.

Features & Benefits

Airpass-Rotor
Push fixing
A pair of lamp holders provides a lamp length tolerance compensation of 3 mm
Designed for enclose cut-outs
Bottom wiring

Product Application Information

Suited to almost all lighting schemes installed in commercial and industrial premises. Ideal for custom built assemblies using T12 and T8 standard fluorescents, circular fluorescents and 2D lamps.

//media.rs-online.com/t_line/L270156-21.gif
Specifications
Attribute Value
Supported Lamp Type Fluorescent
Base G13
Lamp Size T8/T12
Material PC
Fixing Method Snap-Fit
Number of Pins 2
Wattage 660 W
Wiring Points Bottom
Length 28.8 mm
Width 23.6 mm
Wiring Type Push-Wire
260 : Next working day
3680 Within 5 working day(s) (Global stock)
Price (ex. GST) Each (In a Pack of 10)
$ 2.813
(exc. GST)
$ 3.235
(inc. GST)
units
Per unit
Per Pack*
10 +
$2.813
$28.13
*price indicative
