Leica D810 Laser Measure, 200 m Range, ± 1 mm Accuracy

  • RS Stock No. 126-0961
  • Mfr. Part No. 792297
  • Manufacturer Leica
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): AT
Product Details

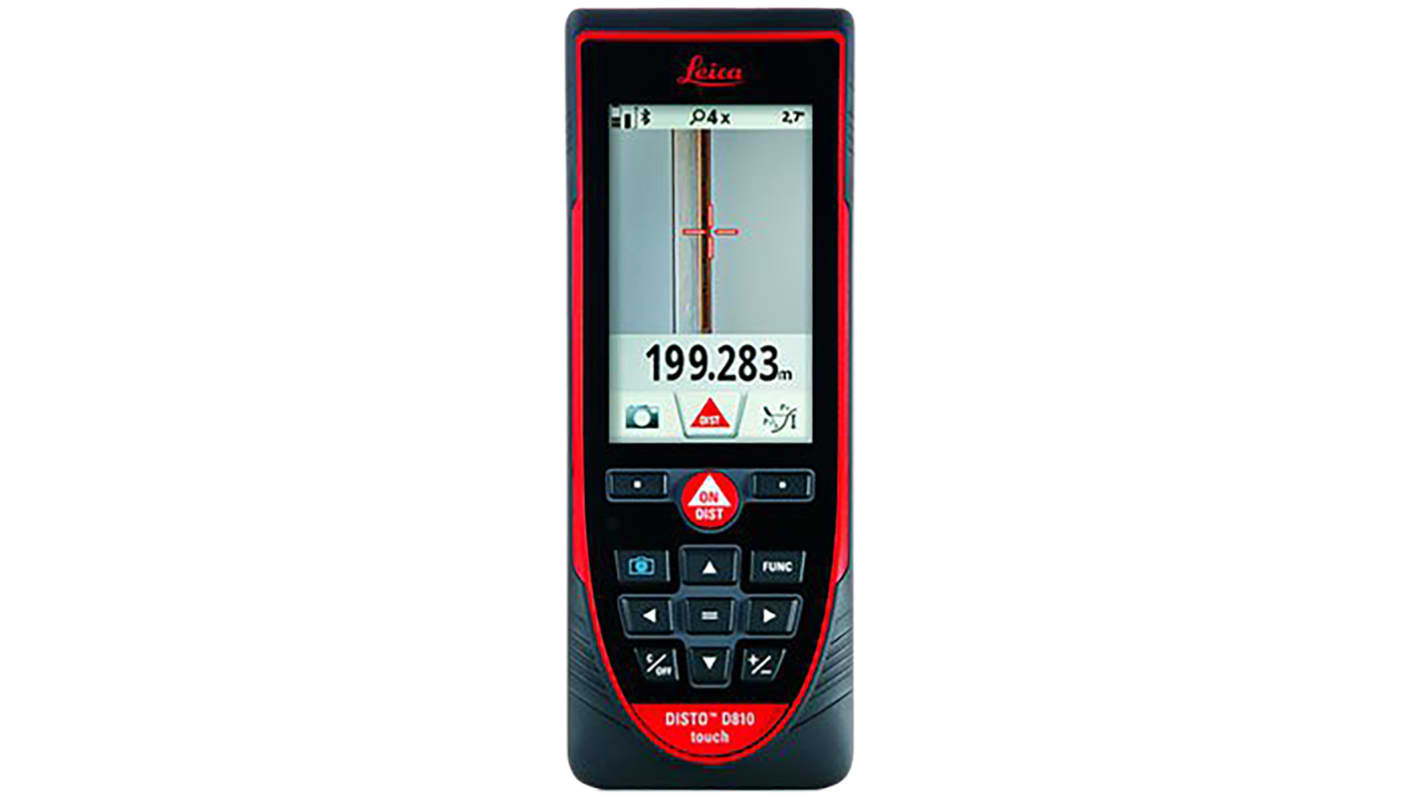

Leica Laser Distance Meter

The Leica laser distance meter is a 200m measuring range most sophisticated device. It is equipped with 15 measurement modes, a touchscreen LCD display, an integrated digital camera with a 4 x Zoom, a tilt sensor and Bluetooth connectivity. It has an exclusive measure feature picture (MIP) technology which can determine the height, width, area, diameter or circumference of an object in a picture taken by the distance meter. There is a provision to bracket your target using pointers on the touchscreen to measure the object in the front of the camera. It has a digital Pointfinder with a 4x zoom camera which allows targeting and measuring at great distances (up to 200m), even when you cannot see the laser dot. This meter has a Smart Horizontal mode that allows you to shoot over obstacles so you can measure the level of horizontal distance to your target.

Features and Benefits

Overview camera
Measure with a picture
Precise 360° tilt sensor
Smart horizontal mode
Height tracking
Bluetooth smart
Free application named Leica DISTO sketch
Li-Ion battery

Applications

Construction
Automobile
HVAC
Fire safety
Industrial maintenance
Solar power
Electrical safety and arc/flash protection

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications
Attribute Value
Accuracy ± 1 mm
Imperial or Metric Imperial, Metric
Display Type LCD
Laser Class Class 2
Laser Wavelength 635nm
Battery Type Li-ion
Power Source Battery
Weight 238g
Model Number p D810
2 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 1,652.38
(exc. GST)
$ 1,900.24
(inc. GST)
units
Per unit
1 +
$1,652.38
