Murata 470 μH ±10% Leaded Inductor, Max SRF:1.4MHz, Q:24, 4A Idc, 125mΩ Rdc, 1400
- RS Stock No.:
- 228-618
- Mfr. Part No.:
- 1447440C
- Brand:
- Murata Power Solutions

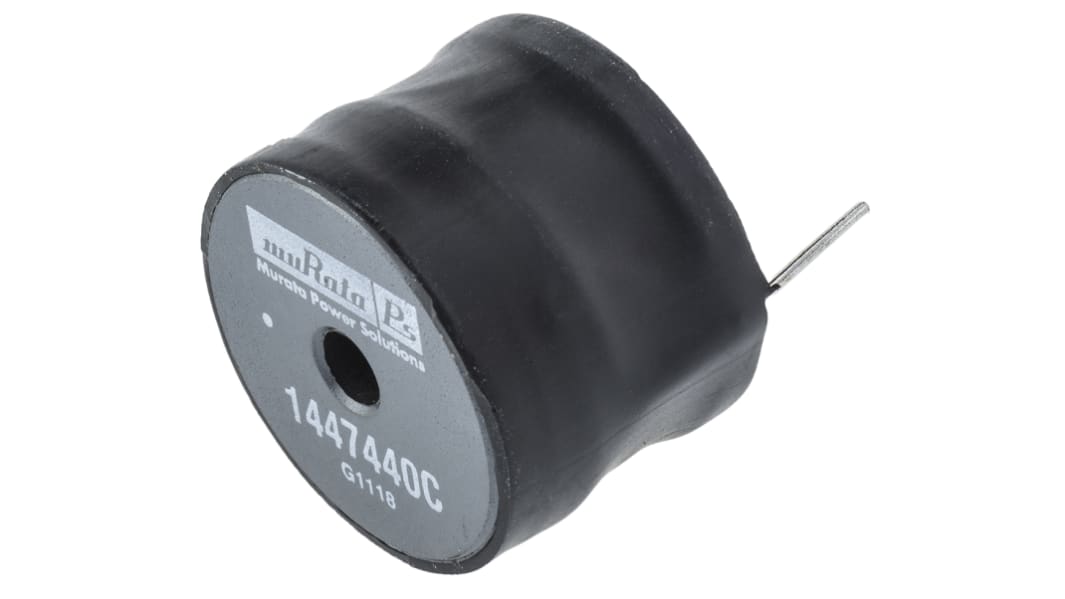

This image is representative of the product range
View all Leaded Inductors
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price (ex. GST) Each
$6.87
(exc. GST)
$7.90
(inc. GST)
| units | Per unit |
| 1 - 3 | $6.87 |
| 4 - 19 | $6.84 |
| 20 + | $5.63 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 228-618
- Mfr. Part No.:
- 1447440C
- Brand:
- Murata Power Solutions
Technical data sheets
Legislation and Compliance
Product Details
Murata 1400 Series High Current Radial Inductors
Designed for use in power line applications such as switching regulators, filters and suppression circuits
Constructed from high saturation flux density material enabling use in high current applications
Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole
Terminated with easy-strip pre-tinned enamelled copper leads
Lead length 10mm
Operating temperature: -40 → +85°C
Inductance Tolerance: ±10%
Constructed from high saturation flux density material enabling use in high current applications
Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole
Terminated with easy-strip pre-tinned enamelled copper leads
Lead length 10mm
Operating temperature: -40 → +85°C
Inductance Tolerance: ±10%
Murata Leaded Inductors (Chokes)
Specifications
| Attribute | Value |
| Inductance | 470 μH |
| Maximum DC Current | 4A |
| Mounting Type | Radial |
| Maximum DC Resistance | 125mΩ |
| Tolerance | ±10% |
| Diameter | 31.7mm |
| Length | 31.8mm |
| Depth | 29.8mm |
| Height | 21.8mm |
| Dimensions | 31.7 x 29.8 x 21.8mm |
| Maximum Self Resonant Frequency | 1.4MHz |
| Lead Pitch | 29mm |
| Series | 1400 |
| Minimum Quality Factor | 24 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Lead Diameter | 0.97mm |
| Terminal Type | Radial Leaded |
