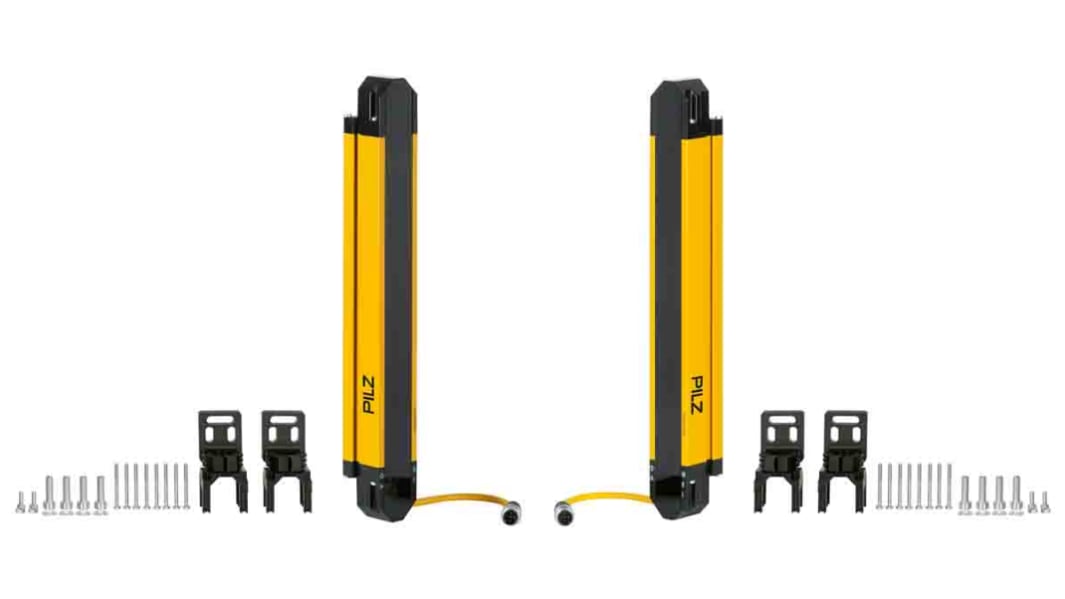

Pilz PSEN opII4F Series Light Curtain Receiver, Transmitter, 14mm Resolution
- RS Stock No.:
- 191-9850
- Mfr. Part No.:
- 632081
- Brand:
- Pilz
On back order for despatch 24/05/2024, delivery within 7 working days from despatch date.
Added
Price (ex. GST) Each
$3,046.25
(exc. GST)
$3,503.19
(inc. GST)
| Units | Per unit |
| 1 + | $3,046.25 |
- RS Stock No.:
- 191-9850
- Mfr. Part No.:
- 632081
- Brand:
- Pilz
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CH
Product Details
"Infrared protected field is generated LED indicator for status information Optical synchronisation of transmitters and receivers Aluminium alloy housing Die-cast zinc end caps Shock resistance "
Specifications
Attribute | Value |
|---|---|
| Series | PSEN opII4F |
| Beam Resolution | 14mm |
| Component Type | Receiver, Transmitter |
| Safety Type | 4 |
| PL EN ISO 13849-1 | e |
| Protective Height | 300mm |
| Minimum Scanning Distance | 0.2m |
| Maximum Scanning Distance | 8m |
| Maximum Response Time | 15.2 ms |
| Length | 35mm |
| Supply Voltage | 24 V dc |
| Height | 304mm |
| Features | Infrared Protected Field is Generated, Led Indicator for Status Information, Optical Synchronisation of Transmitters and Receivers, Aluminium Alloy Housing, Die-Cast Zinc End Caps |
| Dimensions | 35 x 40 x 304 mm |
| Width | 40mm |
| Terminal Type | 5-Pin M12 Connector |
| Application | Industrial |
