Product Details
LS-Titan Plastic Body
This range of easy to use limit switches by Eaton offer a variety of compact safety position switches to suit worldwide application.
Features and Benefits
Modular system
Conforms to EN 50047
IP66 protection rating in plastic bodies
Standard action or snap-action contacts, early break (EB)/Late break (LB) option available
Interlocked opposing contacts for positive operation
Cage clamp terminals which are maintenance-free and vibration proof
Operating heads can be installed in a choice of 8 positions
Suitable for use with electronic devices
LSE versions include electronically adjustable opearting point and visible status display
Conforms to EN 50047
IP66 protection rating in plastic bodies
Standard action or snap-action contacts, early break (EB)/Late break (LB) option available
Interlocked opposing contacts for positive operation
Cage clamp terminals which are maintenance-free and vibration proof
Operating heads can be installed in a choice of 8 positions
Suitable for use with electronic devices
LSE versions include electronically adjustable opearting point and visible status display
Uses and Applications
A limit switch is made up of an actuator head, switch body and receptacle, and is used to control machinery as part of a control system in many types of industrial applications. Limit switch uses include:
Escalators
Food and beverage industry
Electrical assembly equipment
Material handling
Escalators
Food and beverage industry
Electrical assembly equipment
Material handling

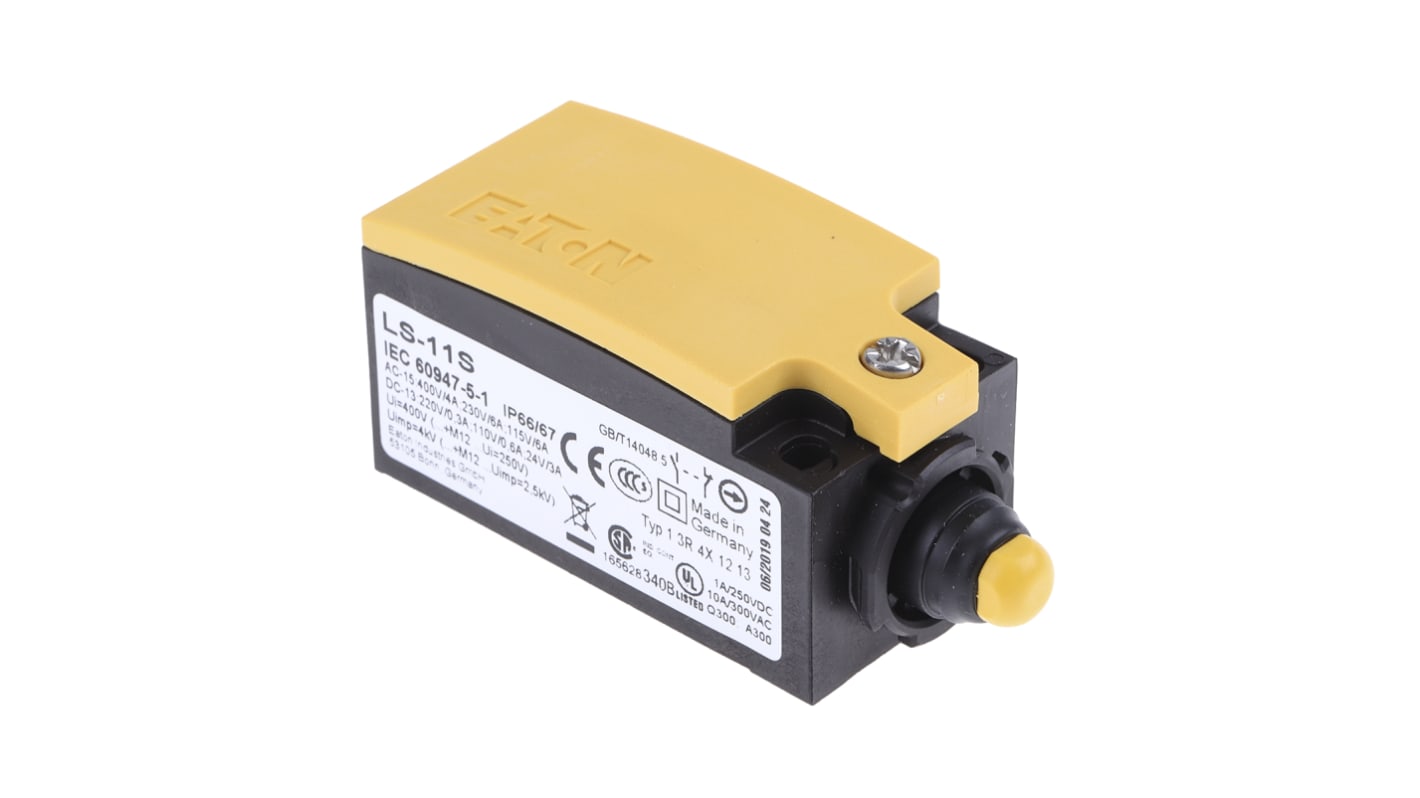

Eaton Snap-Action Plunger Limit Switch, AC/DC - LS Series - LS-11S
This position (or limit) switch from Eaton uses a plunger actuator to mechanically sense the position of an object. It's ideal for industrial applications where correct positioning is vital, such as production lines or assembly equipment. The plunger switch depresses as the object makes contact with it. This opens or closes the electrical contacts to allow automated control of machinery. The mechanical method of automation uses less electricity and isn't as prone to failure, so it's a reliable and efficient way to control the limit of travel of manufactured objects.
IP66/67 (ingress protection) ratings mean it's suitable for challenging environments
Eight possible positions for operating heads means extra versatility
Snap-action contacts help prevent arcing or false signalling
Wide operating temperature range of -25°C to +70°C
Easy to install, maintenance-free cage clamp
Eight possible positions for operating heads means extra versatility
Snap-action contacts help prevent arcing or false signalling
Wide operating temperature range of -25°C to +70°C
Easy to install, maintenance-free cage clamp
Why should I use a limit switch?
Limit switches use mechanical actuators to perform functions like count moving objects, control a limit of travel or open or close a circuit in the presence or absence of an object. Because they depend on mechanical actuation – physical contact – it's less breakable and more energy-efficient way to automate your system.
Specifications
Attribute | Value |
---|---|
Actuator Type | Plunger |
Normal State Configuration | NO/NC |
IP Rating | IP66, IP67 |
Maximum Current | 6A |
Housing Material | Plastic |
Maximum AC Voltage | 415V |
Maximum DC Voltage | 220V |
Series | LS-Titan |
Action Type | Snap Action |
Length | 33.5mm |
Maximum Operating Temperature | +70°C |
Width | 31mm |
Depth | 76.5mm |
Minimum Operating Temperature | -25°C |
Mechanical Life | 8 x 1000000Cycles |
Operating Force | 1 N |
