Honeywell Plunger Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 480V ac Max, 10A Max
- RS Stock No.:
- 293-7033
- Mfr. Part No.:
- 3LS1-4C
- Brand:
- Honeywell
21 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each
$945.96
(exc. GST)
$1,087.85
(inc. GST)
| Units | Per unit |
| 1 + | $945.96 |
- RS Stock No.:
- 293-7033
- Mfr. Part No.:
- 3LS1-4C
- Brand:
- Honeywell
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

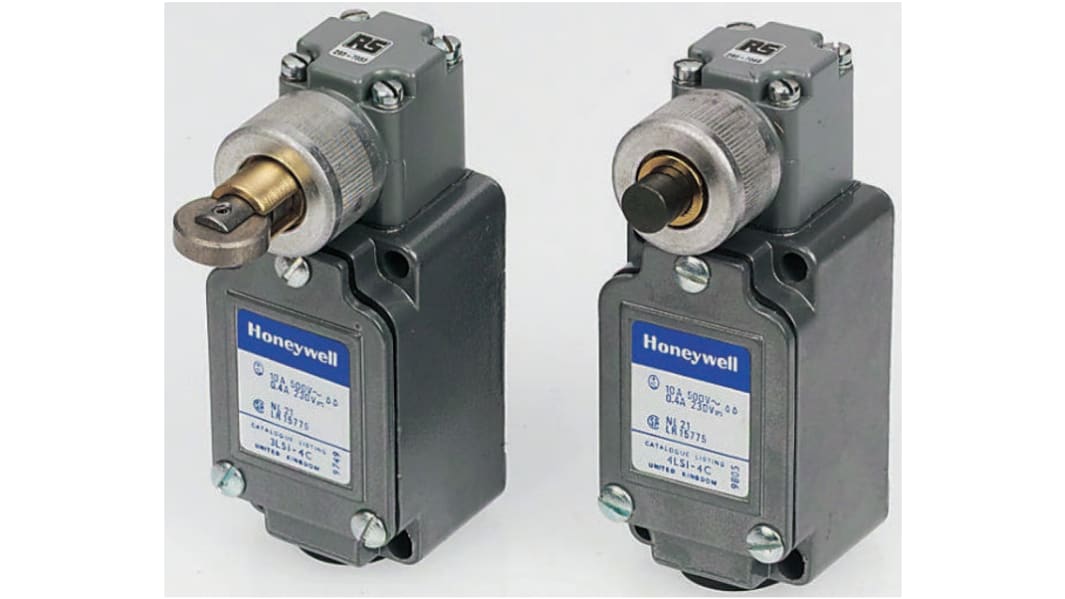

Side Actuation
Two switches for specific applications where the switch can only be mounted in the same plane as the target to be sensed, in side roller and side roller plunger versions. The side roller plunger may also be rotated through 360° allowing the target to pass the switch at any angle.
Suitable for most industrial applications
Bifurcated contacts for switching wide current and voltage requirements
Galvanically isolated contacts for switching different polarities between circuits
Conformity to EN 50947-5-1 (IEC 947-5-1) safety switches with forced disconnect mechanism-independently tested
Sealed up to IP67 independently tested
Bifurcated contacts for switching wide current and voltage requirements
Galvanically isolated contacts for switching different polarities between circuits
Conformity to EN 50947-5-1 (IEC 947-5-1) safety switches with forced disconnect mechanism-independently tested
Sealed up to IP67 independently tested
Standards
EN60947-5-1, IEC947-5-1, AC15, A300 or A600 , DC13, Q300
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Approvals
UL; CSA
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 10A |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 480V |
| Maximum DC Voltage | 550V |
| Action Type | Snap Action |
| Minimum Operating Temperature | -29°C |
| Maximum Operating Temperature | +71°C |
