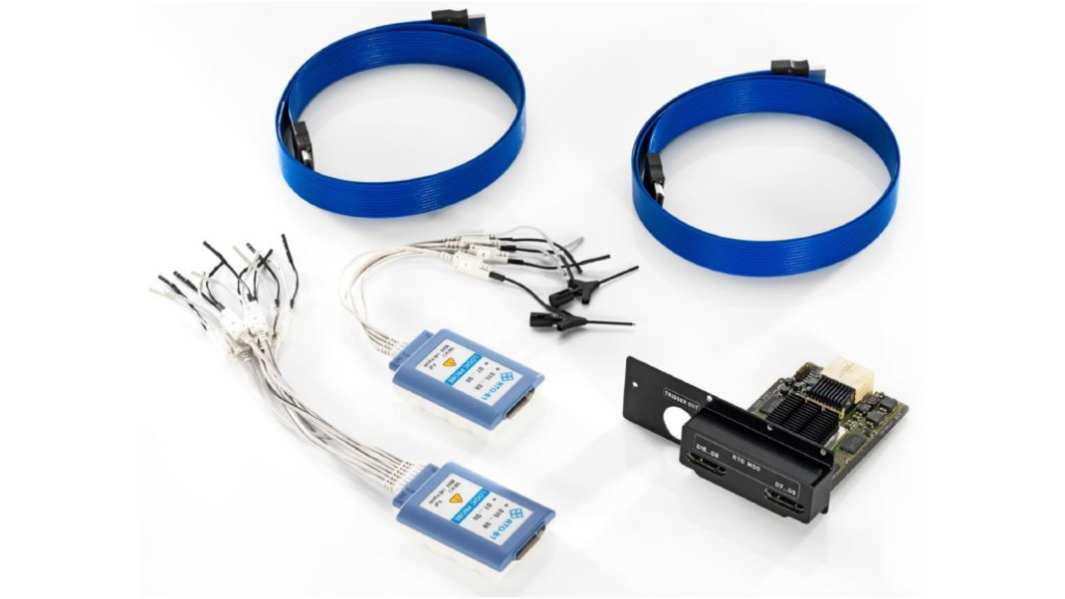

Rohde & Schwarz Oscilloscope Module Mixed Signal Upgrade RTH-B1, For Use With RTH1002 Series, RTH1004 Series

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

Mixed Signal Logic Analyser Option

Mixed signal upgrade option for non-MSO (Mixed Signal Option) models, 250 MHz. The R&S RTO-B1 MSO option turns the R&S RTO oscilloscopes into fast, precise and easy-to-use mixed signal oscilloscopes (MSO).
Suitable for use with the following ScopeRider digital oscilloscopes: RTH1002 and RTH1004 (RS Stock No's. 125-9462 125-9463 respectively).

Benefits

MSO option enhances analysis capabilities of the R&S®RTO oscilloscopes More signal details thanks to high time resolution across the entire memory depth
Reliable triggering on signal events

Specifications

Digital channels: 16 channels (2 logic probes) Input impedance: 100 kΩ ± 2 % || ∼4 pF (meas.) at probe tips

Rohde & Schwarz Scope Rider Handheld Digital Oscilloscope System

Specifications
Attribute Value
Module Type Mixed Signal Upgrade
For Use With RTH1002 Series, RTH1004 Series
Model Number p RTH-B1
On back order for despatch 04/05/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each
$ 2,460.84
(exc. GST)
$ 2,829.97
(inc. GST)
units
Per unit
1 +
$2,460.84
