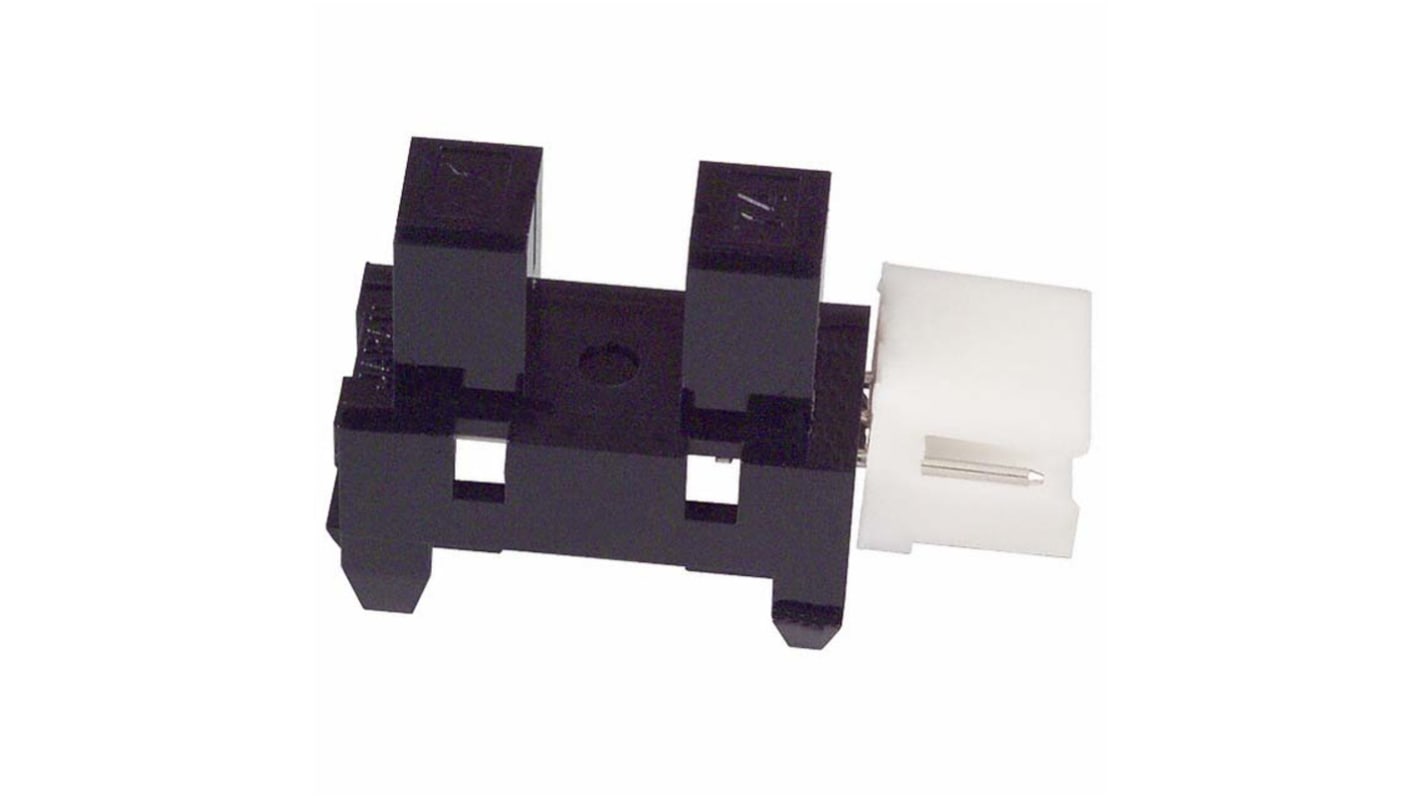

GP2A28AJ000F Sharp, SMT Reflective Optical Sensor, Photointerrupter Output
- RS Stock No.:
- 146-0730
- Mfr. Part No.:
- GP2A28AJ000F
- Brand:
- Sharp
On back order for despatch 14/10/2024, delivery within 7 working days from despatch date.
Added
Price (ex. GST) Each (In a Bag of 100)
$7.753
(exc. GST)
$8.916
(inc. GST)
| Units | Per unit | Per Bag* |
| 100 - 100 | $7.753 | $775.30 |
| 200 - 300 | $7.572 | $757.20 |
| 400 + | $7.443 | $744.30 |
| *price indicative | ||
- RS Stock No.:
- 146-0730
- Mfr. Part No.:
- GP2A28AJ000F
- Brand:
- Sharp
Technical data sheets
Legislation and Compliance
Product Details
Reflective photointerrupters with emitter and detector facing the same direction in a molding that provides non-contact sensing. This family of devices uses light modulation to reduce the affects of disturbing light, and the sensor is optimized to work in the selected focal distance. A 3-pin connector is included to allow remote-mount or off-board designs.
Reflective with OPIC Light Modulated Output
Detecting distance: 1 to 9mm (White paper) 3 to 7mm (Black paper)
Undetecting distance: over 27mm (White paper)
Connector Tyco Electronics AMP K.K. (PN : 292133-3)
RoHS directive compliant
Detecting distance: 1 to 9mm (White paper) 3 to 7mm (Black paper)
Undetecting distance: over 27mm (White paper)
Connector Tyco Electronics AMP K.K. (PN : 292133-3)
RoHS directive compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Peak Sensor Distance | 27 (Non-Detection) mm, 9 (Detection) mm |
| Output Device | Photointerrupter |
| Mounting Type | Surface Mount |
| Dimensions | 26.8 x 9 x 8mm |
| Height | 8mm |
| Length | 26.8mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -10°C |
| Width | 9mm |
| Output Signal Type | Analogue |
| Operating Temperature Range | -10 → +60°C |
