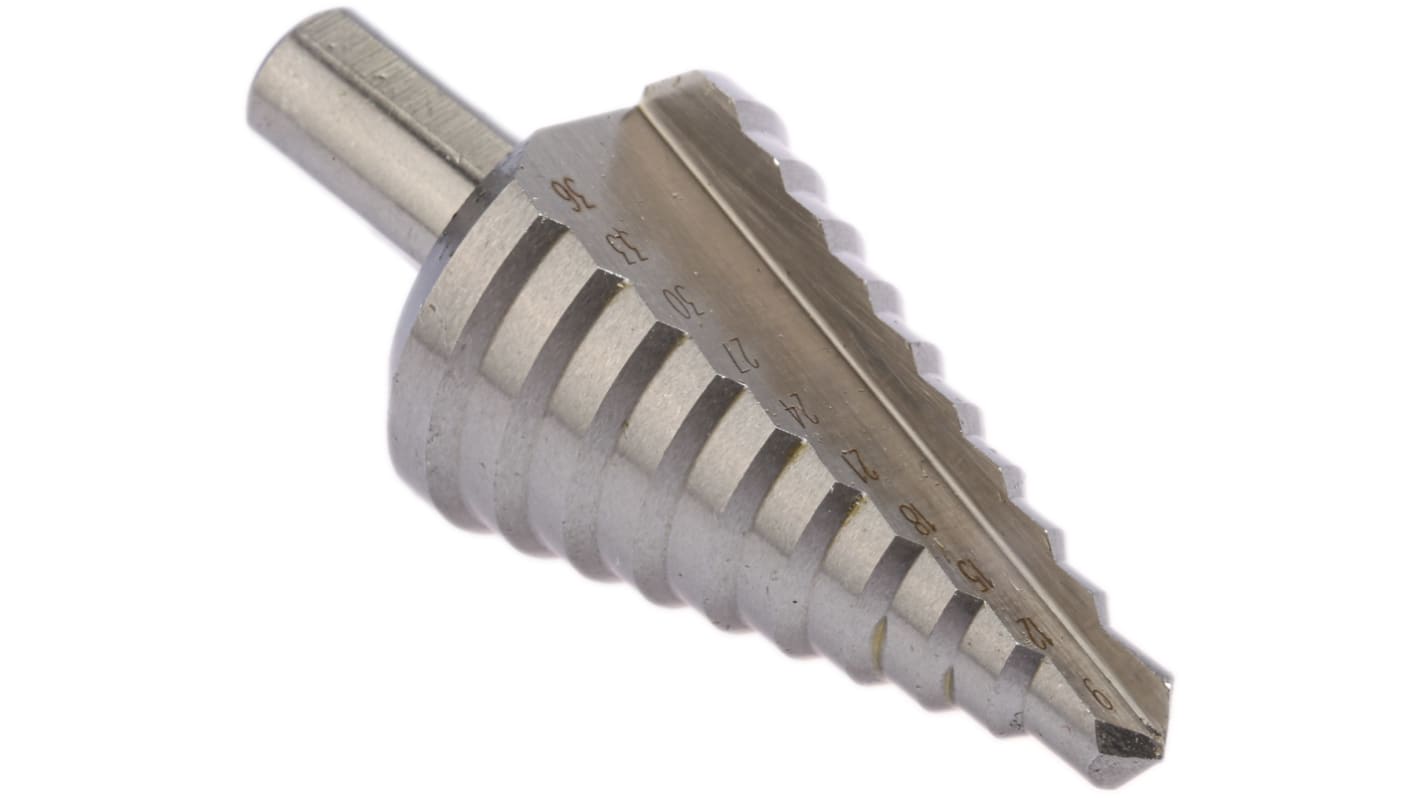

EXACT HSS 9 → 36mm Step Drill Bit, 10 Steps, 3mm Max Drilling Thickness

  • RS Stock No. 508-9171
  • Mfr. Part No. 05330
  • Manufacturer EXACT
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Step drill, straight tap

HSS step drill with straight tap, two-edged
For burr-free drilling and planing sheet metal, pipes and profiles
No centre-punching necessary, drill bits do not run
Suitable for construction steel, CrNi steel, non-ferrous metals, Plexiglas, plastics and wood up to 6 mm thick
Diameter specification is lasered on every level
Three-faced driving shaft, prevents slipping in the drill chuck
Sets delivered in a plastic case

Specifications
Attribute Value
Drill Bit Type Step Drill Bit
Number of Steps 10
Maximum Drilling Thickness 36mm
Material HSS
Minimum Head Size 9mm
Maximum Head Size 36mm
22 Within 5 working day(s) (Global stock)
24 Within 5 working day(s) (Global stock)
Price (ex. GST) Each
$ 152.49
(exc. GST)
$ 175.36
(inc. GST)
units
Per unit
1 +
$152.49
