RS PRO Non-Fused Terminal Block, 4-Way, 15 → 57A, 8 AWG Wire, Screw Down Termination
- RS Stock No.:
- 813-3108
- Brand:
- RS PRO
140 in Global stock for delivery within 1 working day (+3 days for regional areas).
775 in Global stock for delivery within 7 working day (+3 days for regional areas).
Added
Price (ex. GST) Each (In a Pack of 5)
$7.462
(exc. GST)
$8.581
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 + | $7.462 | $37.31 |
| *price indicative | ||
- RS Stock No.:
- 813-3108
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

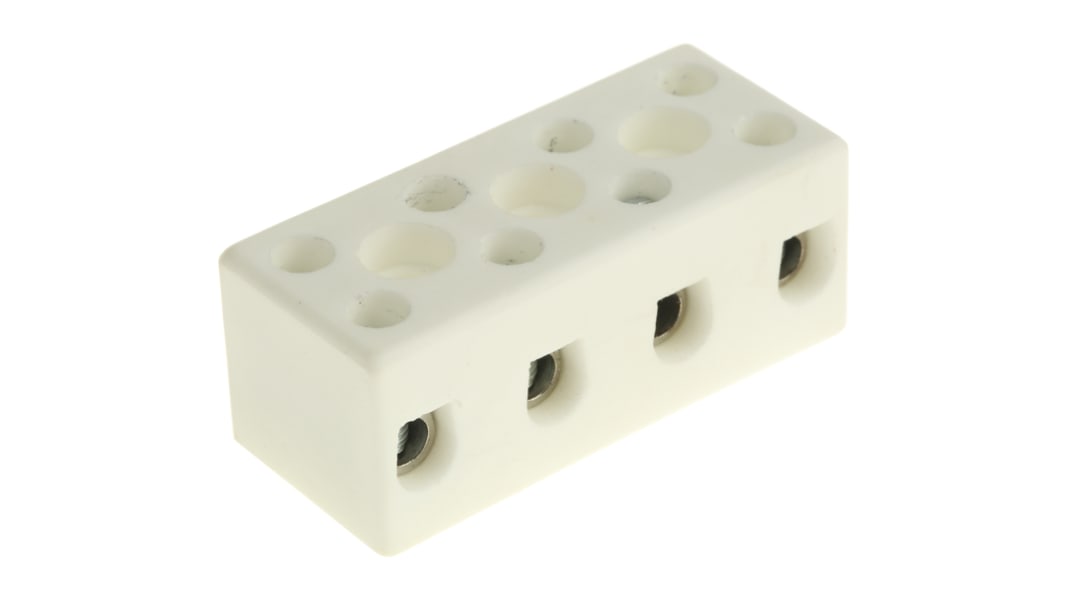

RS PRO 4 Way Non-Fused Terminal Block, 8 AWG, 15 to 57 A, Screw, 10 mm², Screw Down Terminals, Ceramic, 450 V
Use this terminal block from RS PRO to connect and insulate open wires. It ensures safety as it insulates exposed wires to protect you against electric shocks.
The block's ceramic composition makes it resistant to chemical damage and temperatures of up to +800°C, making it ideal for use in demanding environments. The housing portals are lined with nickel-plated brass to guarantee good electrical current conduction. The clamping terminals screw down tightly to secure wires so they don't loosen or detach.
This item complies with the Restriction of Hazardous Substances (RoHS) standards, ensuring that it contains only trace quantities of harmful materials. As it's suitable for harsh applications, it's commonly used for heater wiring and process machinery.
The block's ceramic composition makes it resistant to chemical damage and temperatures of up to +800°C, making it ideal for use in demanding environments. The housing portals are lined with nickel-plated brass to guarantee good electrical current conduction. The clamping terminals screw down tightly to secure wires so they don't loosen or detach.
This item complies with the Restriction of Hazardous Substances (RoHS) standards, ensuring that it contains only trace quantities of harmful materials. As it's suitable for harsh applications, it's commonly used for heater wiring and process machinery.
Features and Benefits
- Cable cross-sectional area of 10 mm²
- White colour
- Brass contact material
- Nickel contact plating
- Current rating of 15 to 57 A
- Enclosed
- Not fused
- Ceramic material
- Maximum operating temperature of +800°C
- Minimum operating temperature of -40°C
- Screw mounting type
- Four ways
- Screw down termination method
- High-temperature terminal block type
- Voltage rating of 450 V
- Wire size of 8 AWG (American Wire Gauge)
Specifications
Attribute | Value |
|---|---|
| Number of Ways | 4 |
| Current Rating | 15 → 57A |
| Wire Size | 8 AWG |
| Termination Method | Screw Down |
| Mounting Type | Screw |
| Fused | No |
| Material | Ceramic |
| Voltage Rating | 450 V |
| Cable CSA | 10mm² |
| Minimum Operating Temperature | -40°C |
| Colour | White |
| Maximum Operating Temperature | +800°C |
| Enclosed | Yes |
| Contact Material | Brass |
| Contact Plating | Nickel |
