RS PRO Non-Fused Terminal Block, 1-Way, 15 → 57A, 8 AWG Wire, Screw Down Termination
- RS Stock No.:
- 813-3117
- Brand:
- RS PRO
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each (In a Pack of 10)
$1.78
(exc. GST)
$2.05
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 + | $1.78 | $17.80 |
| *price indicative | ||
- RS Stock No.:
- 813-3117
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details

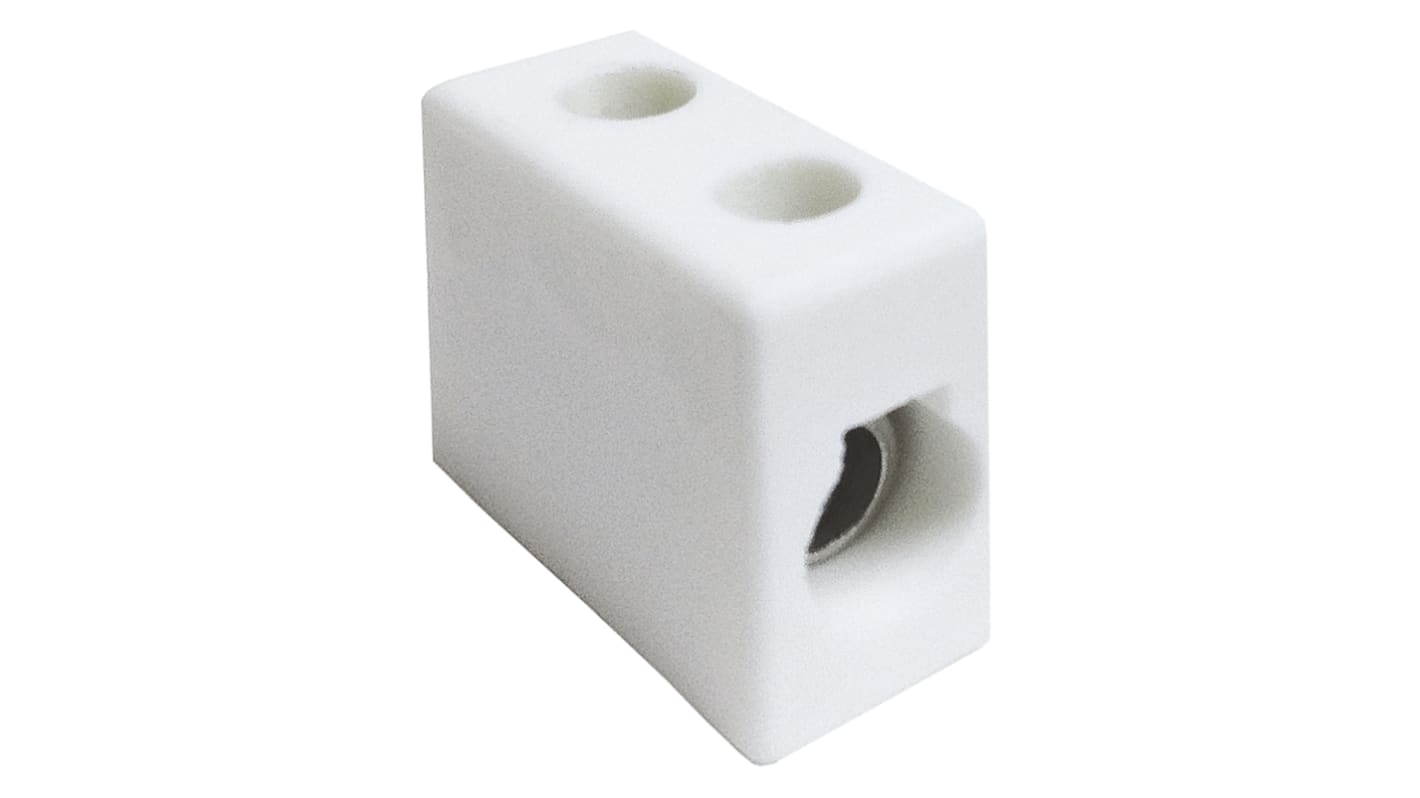

RS PRO 1 Way Non-Fused Terminal Block, 8 AWG, 15 to 57 A, Screw, 10 mm², Screw Down Terminals, Ceramic, 450 V
This terminal block from RS PRO makes neat and safe connections for running your electrical components. It prevents electric shocks by insulating exposed wires, keeping your working environment safe.
The wires are held securely in position using brass screw clamps, so they won't disconnect or come loose. The block's ceramic material is chemical-resistant and suitable for use at temperatures of up to +800°C. This means it's a good choice for use in demanding environmental conditions. The housing portals are lined with nickel-plated brass for good conductivity and a reliable connection.
This product is made with only trace amounts of any harmful materials, so it conforms to Restriction of Hazardous Substances (RoHS) standards. You can use this product for connecting wires in extreme industrial settings.
The wires are held securely in position using brass screw clamps, so they won't disconnect or come loose. The block's ceramic material is chemical-resistant and suitable for use at temperatures of up to +800°C. This means it's a good choice for use in demanding environmental conditions. The housing portals are lined with nickel-plated brass for good conductivity and a reliable connection.
This product is made with only trace amounts of any harmful materials, so it conforms to Restriction of Hazardous Substances (RoHS) standards. You can use this product for connecting wires in extreme industrial settings.
Features and Benefits
- Cable cross-sectional area of 10 mm²
- White colour
- Brass contact material
- Nickel contact plating
- Current rating of 15 to 57 A
- Enclosed
- Not fused
- Ceramic material
- Maximum operating temperature of +800°C
- Minimum operating temperature of -40°C
- Screw mounting type
- One way
- Screw down termination method
- High temperature terminal block type
- Voltage rating of 450 V
- Wire size of 8 AWG (American Wire Gauge)
Specifications
Attribute | Value |
|---|---|
| Number of Ways | 1 |
| Current Rating | 15 → 57A |
| Wire Size | 8 AWG |
| Termination Method | Screw Down |
| Mounting Type | Screw |
| Fused | No |
| Material | Ceramic |
| Voltage Rating | 450 V |
| Minimum Operating Temperature | -40°C |
| Colour | White |
| Cable CSA | 10mm² |
| Maximum Operating Temperature | +800°C |
| Enclosed | Yes |
| Contact Material | Brass |
| Contact Plating | Nickel |
