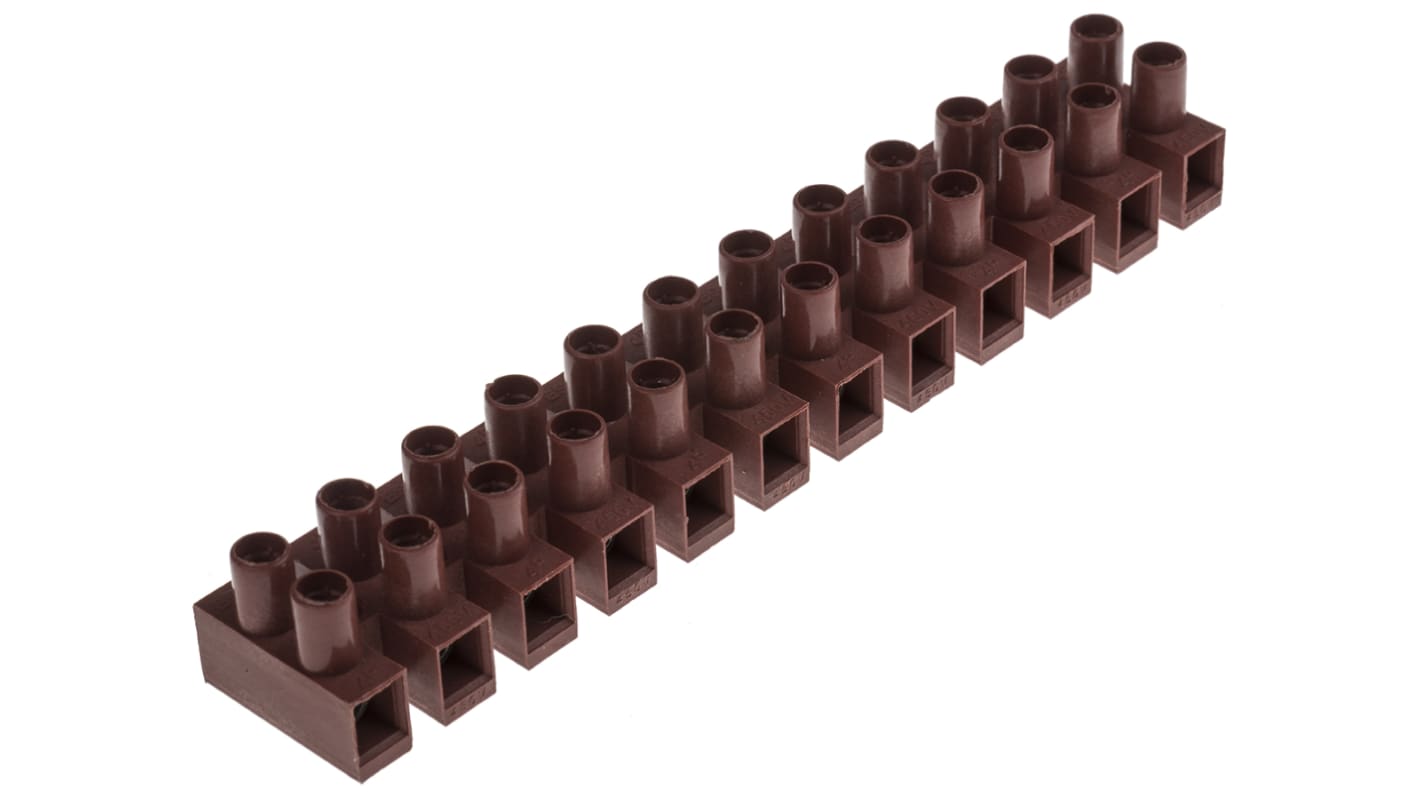

RS PRO Non-Fused Terminal Block, 12-Way, 24A, 14 AWG Wire, Screw Termination
- RS Stock No.:
- 840-7948
- Brand:
- RS PRO
375 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$5.262
(exc. GST)
$6.051
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 20 | $5.262 | $26.31 |
| 25 + | $4.332 | $21.66 |
| *price indicative | ||
- RS Stock No.:
- 840-7948
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details
Polyamide Terminal Blocks - High Temperature with Wire Protector
RS semi-rigid high temperature (160°C) polyamide/glass fibre terminal blocks with wire protector, nickel plated brass inserts and galvanised steel screws which are captive and raised for easy wiring.
Housing made from semi-rigid polyamide (PA) and fiberglass
Flame retardant
High temperature: 160°C
Nickel plated brass inserts
Galvanised steel screws, captive and raised for easy wiring
Colour: dark brown
VDE approved
Flame retardant
High temperature: 160°C
Nickel plated brass inserts
Galvanised steel screws, captive and raised for easy wiring
Colour: dark brown
VDE approved
Approvals
VDE
Specifications
Attribute | Value |
|---|---|
| Number of Ways | 12 |
| Current Rating | 24A |
| Wire Size | 14 AWG |
| Termination Method | Screw |
| Mounting Type | Cable Mount |
| Fused | No |
| Material | Polyamide |
| Voltage Rating | 450 V |
| Wire Protection | Yes |
| Colour | Dark Brown |
| Minimum Operating Temperature | -40°C |
| Cable CSA | 2.5mm² |
| Maximum Operating Temperature | +105°C |
| Contact Material | Brass |
| Contact Plating | Nickel |
