Fluke 820 LED Stroboscope

  • RS Stock No. 877-7250
  • Mfr. Part No. Fluke-820-2
  • Manufacturer Fluke
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Fluke Stroboscope

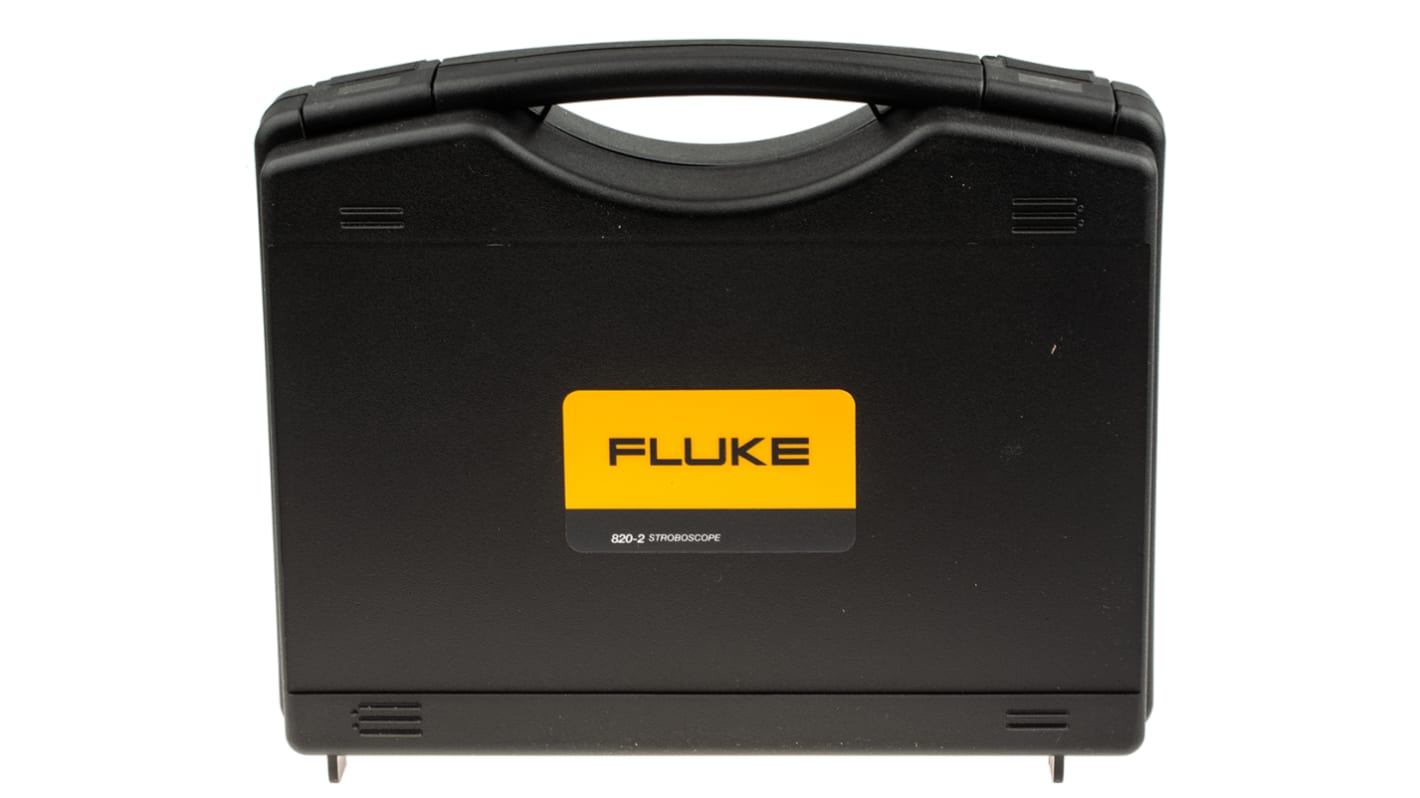

The Fluke Stroboscope is a new age device ideal for stop motion diagnostics and frontline mechanical troubleshooting. The Fluke 820-2 LED stroboscope allows you to observe potential mechanical failure on a variety of machinery, covering a wide range of industries, without making physical contact with a machine or shutting it down. Due to the stroboscopes rugged, compact and easy-to-use structure, it makes an ideal portable strobe for stop motion diagnostics, mechanical troubleshooting, process and product research. Stop motion diagnostics let you identify the running speed of rotating equipment, identify part numbers or other markings. You can measure the speed of rotation and frequency of a rotating shaft, speaker, or mechanical part, troubleshoot belt-drive machines, and more. It supplied with a protective case and an external trigger connector.

Features and Benefits

Adjustable flash duration
Digital pulse width modulation for exceptionally sharp images at high-speeds
Find belt rotation speed and look for belt slippage
Find machine element components - fan blades, pump vanes, compressor screws, and gear teeth
High efficiency LED solid-state light source with uniform flash characteristics allows for higher flash rates - 30-300,000 FPM (flashes per minute)
High-intensity 7-LED array - 4, 800 Lux @ 6,000FPM/30cm
Multi-line LCD display
No need for reflective tape
Quartz-accuracy control system provides high accuracy - 0.02% (+/- 1 digit)
RPM measurement and frequency investigation
Rugged and durable design utilizes solid-state LEDs with no filaments, gases, hollow cavities, or glass - (1m drop)
Slip measurement

Applications

Belt driven machines—HVAC fans, pumps
Clutches and cogwheels
Foundations—resonance vibrations
Mixing and dosage processes
Roller bearings, shafts, gear teeth or other machine components

Certifications

CE certified
Class III (SELV) pollution degree 2
EN61326-1:2006

Specifications
Attribute Value
Best Accuracy ±0.02 %
Dimensions 191 x 61 x 57.1mm
Weight 240g
Height 57.1mm
Length 191mm
Maximum Operating Temperature +45°C
Minimum Operating Temperature 0°C
Model Number p 820
Width 61mm
Temporarily out of stock - back order for despatch 16/07/2020, delivery within 1 working days from despatch date.
Price (ex. GST) Each
$ 2,024.64
(exc. GST)
$ 2,328.34
(inc. GST)
units
Per unit
1 +
$2,024.64
