RS PRO 68μF Electrolytic Tantalum Electrolytic Capacitor 25V dc

RS Stock No.:: 181-4581
Brand:: RS PRO

RS PRO 68μF Electrolytic Tantalum Electrolytic Capacitor 25V dc

On back order for despatch 26/06/2024, delivery within 7 working days from despatch date.

Added

Price (ex. GST) Each (In a Bag of 250)

$3.688

(exc. GST)

$4.241

(inc. GST)

Units	Per unit	Per Bag*
250 - 250	$3.688	$922.00
500 - 750	$3.596	$899.00
1000 +	$3.541	$885.25
*price indicative

RS Stock No.:: 181-4581
Brand:: RS PRO

Technical data sheets

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

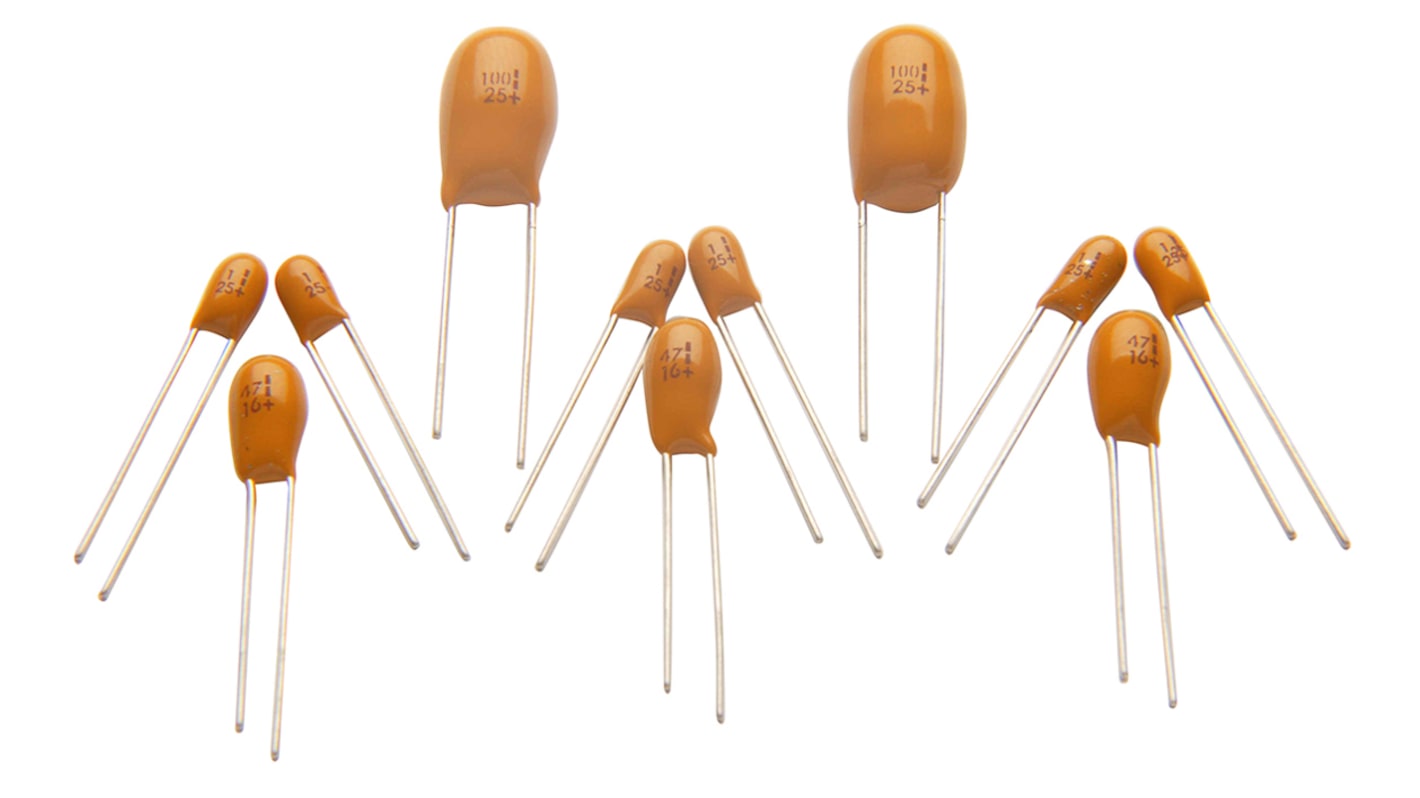

RS PRO Tantalum Capacitor

The RS PRO CB series 68μf epoxy-coated solid electrolytic tantalum capacitor has 25VDC voltage rating with a leakage current of 500nA. It has dimensions of 9.5mm x 9.5mm x 16.5mm x 0.5mm (L x D x H x lead diameter).

Features and Benefits

• Tolerance: ±20%
• Operating temperature ranges between -55°C and 125°C
• Life test: 1000 hours
• Lead pitch: 5mm
• Dissipation factor: Less than 0.08%
• Through hole mount
• Package/Case: F
• Positive polarised

Applications

• Electronics industry

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Technology	Electrolytic
Capacitance	68µF
Voltage	25V dc
Mounting Type	Through Hole
Package/Case	F
Lead Pitch	5mm
Tolerance	±20%
Length	9.5mm
Depth	9.5mm
Height	16.5mm
Dimensions	9.5 x 9.5 x 16.5mm
Electrolyte Type	Solid
Maximum Operating Temperature	+125°C
Tolerance Plus	+20%
Lead Diameter	0.5mm
Leakage Current	500 nA
Polarised	Positive
Tolerance Minus	-20%
Dissipation Factor	<lteq/>0.08%
Minimum Operating Temperature	-55°C
Dielectric Material Family	Tantalum
