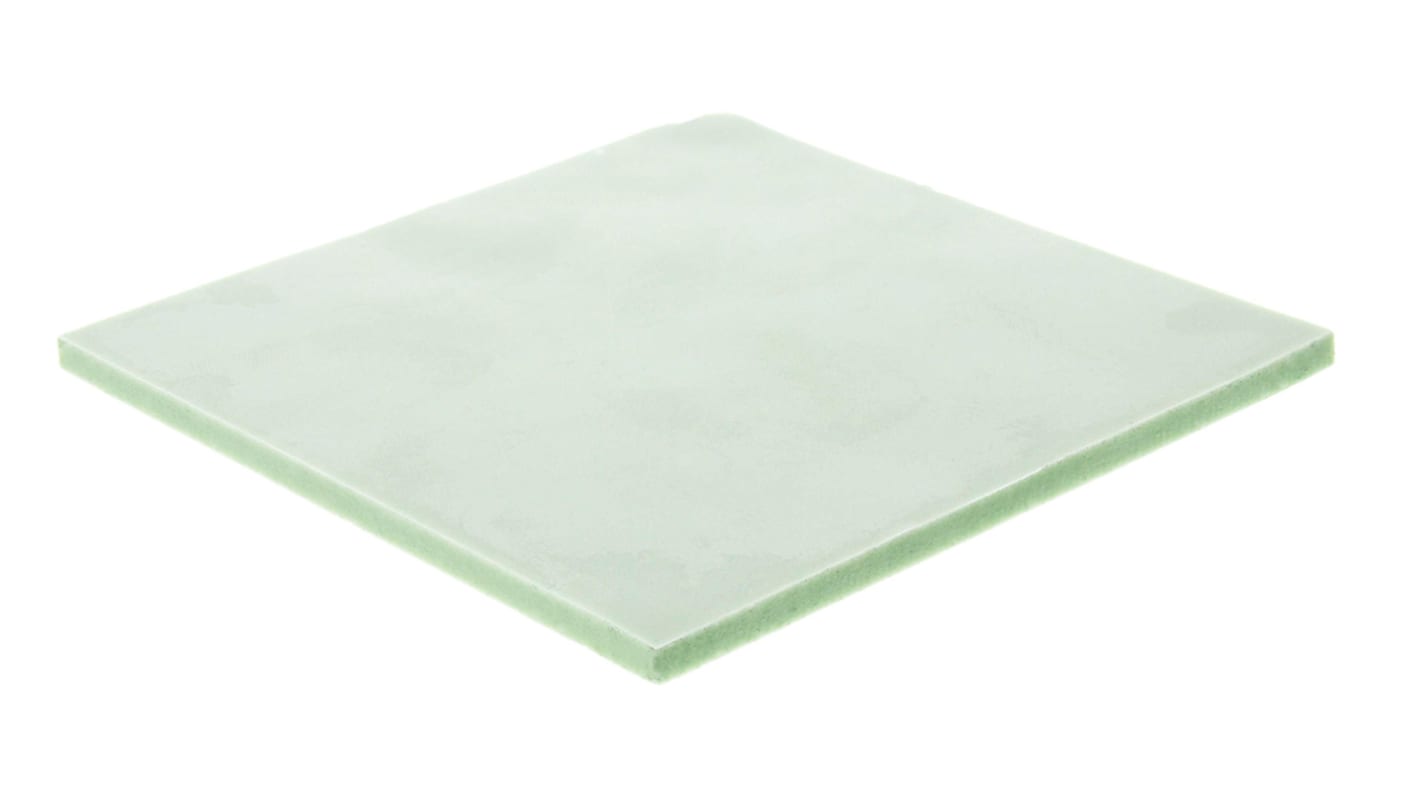

Laird Self-Adhesive Thermal Interface Sheet, 4mm Thick, 1.2W/m·K, Ceramic Filled Silicone Rubber, 100 x 100mm
- RS Stock No.:
- 446-582
- Mfr. Part No.:
- U021041-18-U1
- Brand:
- Laird
9 in Global stock for delivery within 7 working day (+3 days for regional areas).
272 in Global stock for delivery within 7 working day (+3 days for regional areas).
Added
Price (ex. GST) Each
$44.04
(exc. GST)
$50.65
(inc. GST)
| Units | Per unit |
| 1 - 99 | $44.04 |
| 100 - 249 | $43.25 |
| 250 - 499 | $42.14 |
| 500 + | $40.95 |
- RS Stock No.:
- 446-582
- Mfr. Part No.:
- U021041-18-U1
- Brand:
- Laird
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
T-flex 300 & 3000
T-flex™ 300 is a silicone gel combined with a ceramic powder to offer a unique combination of compliancy, thermal resistance and price. At pressures of 50 psi, it deflects over 50% the original thickness. This high rate of compliancy allows the material to “totally blanket” the component, enhancing thermal transfer. The material has a very low compression set, enabling the pad to be reused many times. Low thermal resistances can be achieved at low pressures.
Exceptional compliancy
Square package outline
Thermal conductivity 1.1 W/mK
Breakdown voltage > 10,000 Vac
Operating temperature -40 → 160°C
Square package outline
Thermal conductivity 1.1 W/mK
Breakdown voltage > 10,000 Vac
Operating temperature -40 → 160°C
Specifications
Attribute | Value |
|---|---|
| Dimensions | 100 x 100mm |
| Thickness | 4mm |
| Length | 100mm |
| Width | 100mm |
| Thermal Conductivity | 1.2W/m·K |
| Material | Ceramic Filled Silicone Rubber |
| Self-Adhesive | Yes |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +160°C |
| Hardness | Shore OO 27 |
| Operating Temperature Range | -40 → +160 °C |
