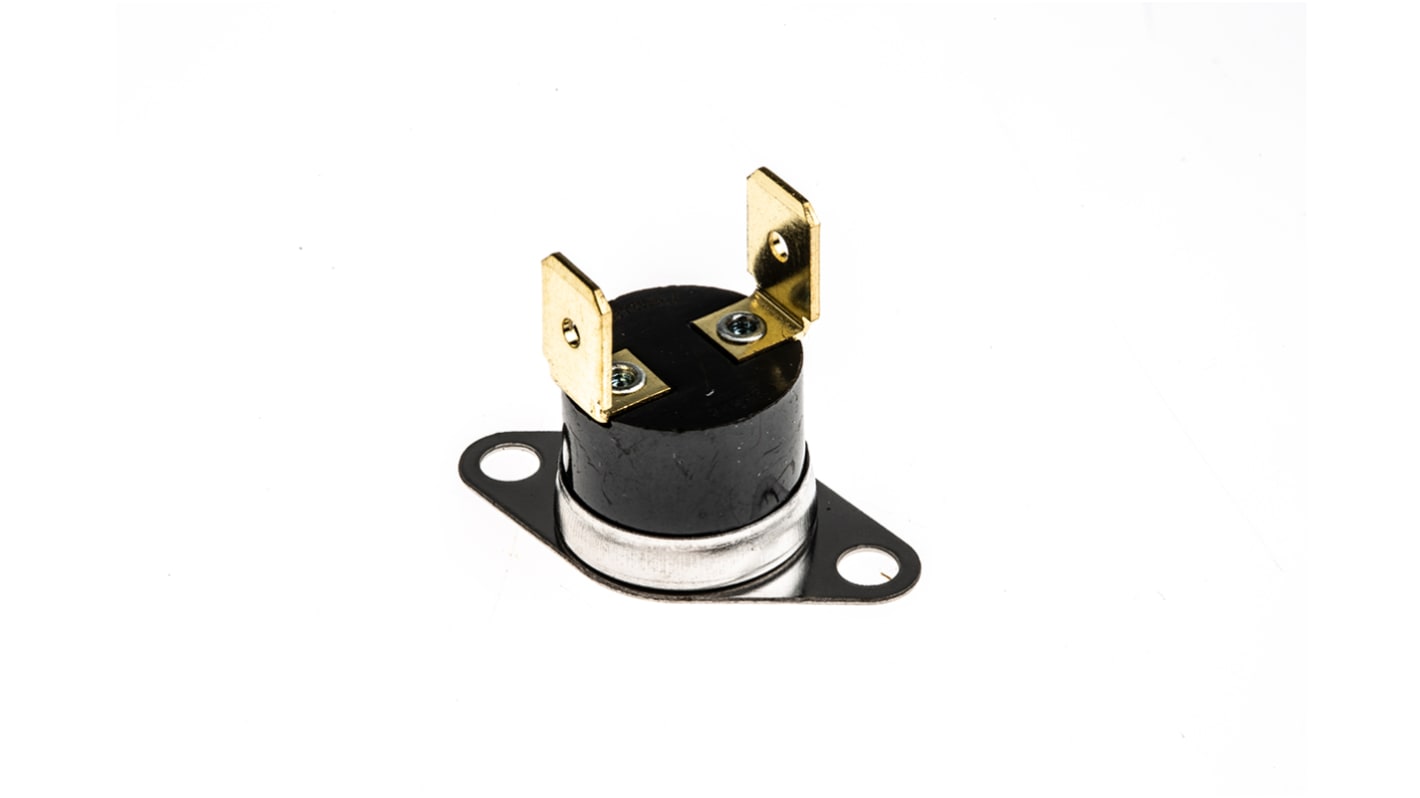

Honeywell NO 15 A Bi-Metallic Thermostat, Opens at+75°C

  • RS Stock No. 331-562
  • Mfr. Part No. 2455R 82-714 F90C
  • Manufacturer Honeywell
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Bi-Metallic Thermostat

Snap action bi-metallic disc operates an SPST contact which is electrically isolated from the mounting bracket.
All types reset when the temperature falls to nominally 15° below operating temperature.
• Phenolic body with stainless steel end cap.
• 1/4in tab termination.
• Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
• Dielectric strength of 2000 Vac.
• N/C types open on temperature rise.
• N/O types close on temperature rise.

Approvals

UL recognised component, CSA Certified

Thermal Switches

Specifications
Attribute Value
Minimum Temperature 0°C
Maximum Temperature +150°C
Opening Temperature +75°C
Closing Temperature +90°C
Thermostat Type Bi-Metallic
Switch Configuration NO
Contact Rating 15 A
Contact Voltage Rating 240 V ac
Terminal Type Quick Connect
17 : Next working day
1186 Within 5 working day(s) (Global stock)
Price (ex. GST) Each
$ 16.36
(exc. GST)
$ 18.81
(inc. GST)
units
Per unit
1 - 14
$16.36
15 - 49
$15.70
50 +
$15.63
