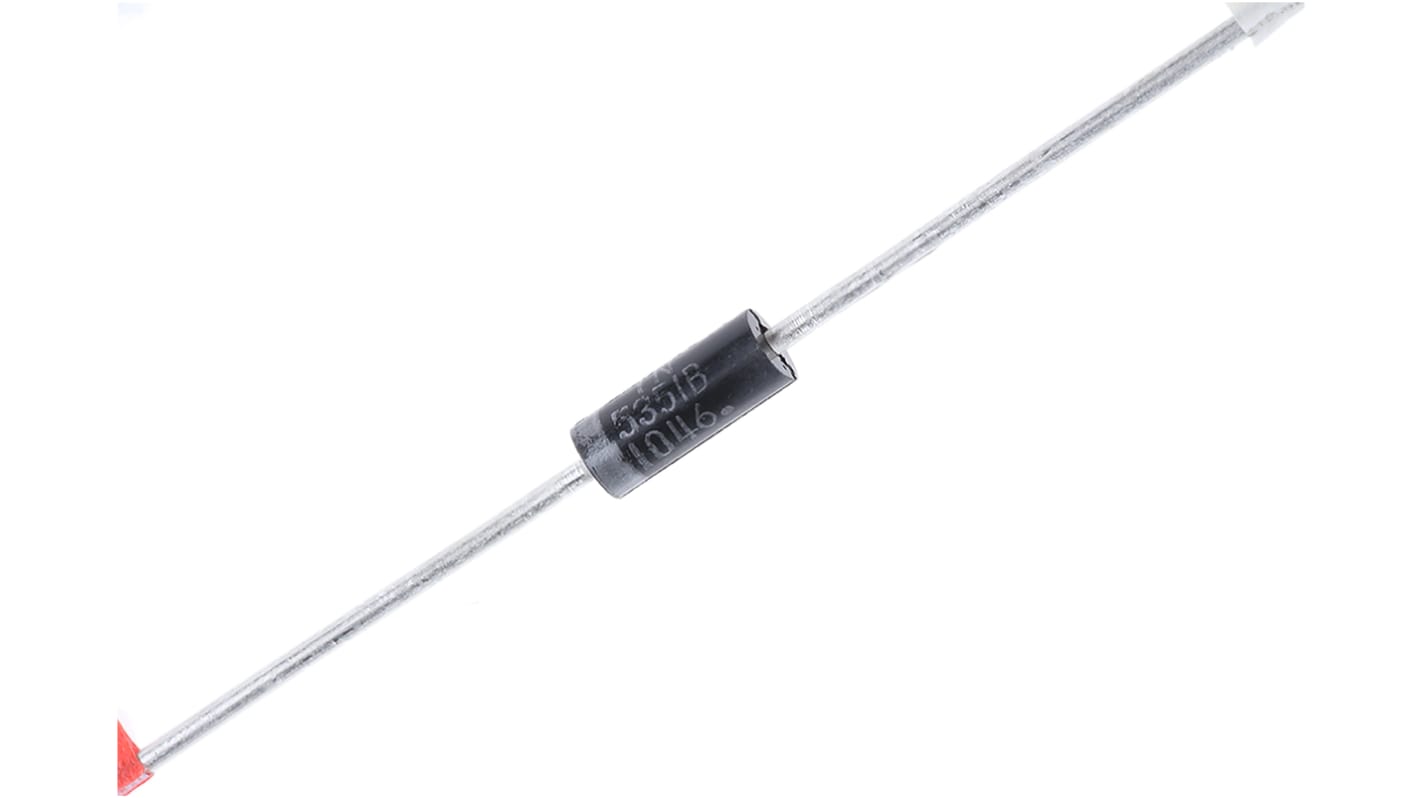

onsemi, 14V Zener Diode 5% 5 W Through Hole 2-Pin DO-15
- RS Stock No.:
- 654-7606
- Mfr. Part No.:
- 1N5351BRLG
- Brand:
- onsemi
170 In stock for delivery within 1 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$0.83
(exc. GST)
$0.95
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 995 | $0.83 | $4.15 |
| 1000 - 1995 | $0.81 | $4.05 |
| 2000 + | $0.67 | $3.35 |
| *price indicative | ||
- RS Stock No.:
- 654-7606
- Mfr. Part No.:
- 1N5351BRLG
- Brand:
- onsemi
Technical data sheets
Legislation and Compliance
Product Details
Zener Diodes 5W Surmetic, 1N5347 to 1N5363 Series, ON Semiconductor
ON Semiconductor 1N53 series is Surmetic™ 40 axial-leaded 5 Watt zener diode This axial lead device features a molded package which is void-free transfer−molded, thermosetting plastic, offers protection in most common environmental conditions, The voltage regulator has tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. The external surfaces are corrosion resistant and leads are readily solderable
Applications
Industrial
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Zener Diodes, ON Semiconductor
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 14V |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 5 W |
| Package Type | DO-15 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 5% |
| Pin Count | 2 |
| Test Current | 100mA |
| Maximum Zener Impedance | 2.5Ω |
| Maximum Reverse Leakage Current | 1µA |
| Dimensions | 8.89 x 3.68 x 3.68mm |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +200 °C |
