EPCOS 2.2 mF Capacitor 25V dc, Radial, Through Hole Radial Lead
- RS Stock No.:
- 261-0648
- Mfr. Part No.:
- B41858C5228M000
- Brand:
- EPCOS

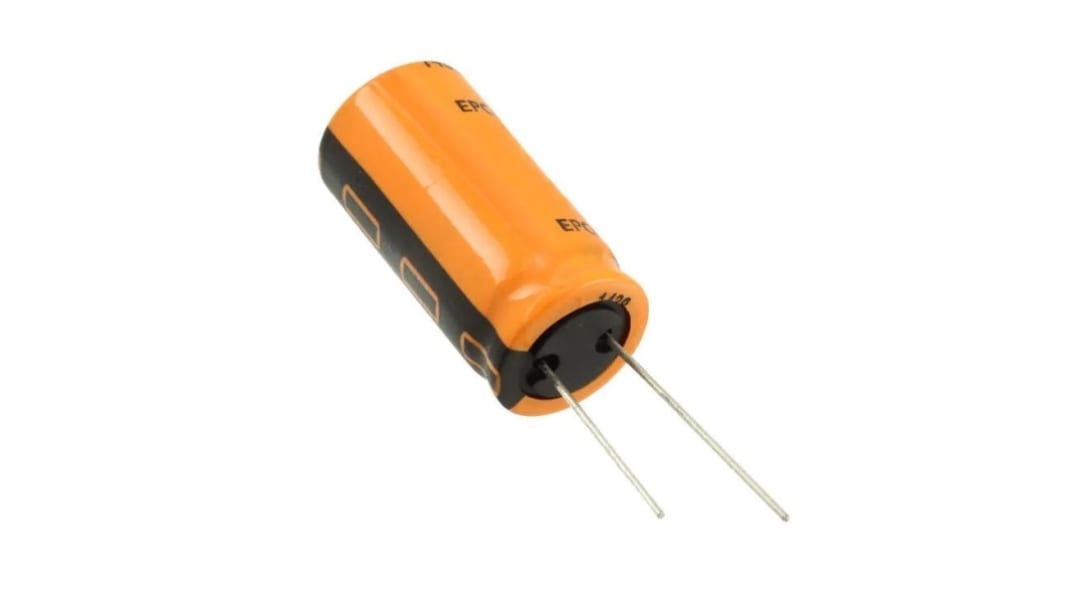

This image is representative of the product range
Bulk discount available
Subtotal (1 bag of 2 units)*
$9.10
(exc. GST)
$10.46
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Bag* |
|---|---|---|
| 2 - 8 | $4.55 | $9.10 |
| 10 - 38 | $4.155 | $8.31 |
| 40 - 98 | $3.75 | $7.50 |
| 100 + | $3.355 | $6.71 |
*price indicative
- RS Stock No.:
- 261-0648
- Mfr. Part No.:
- B41858C5228M000
- Brand:
- EPCOS
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Product Type | Capacitor | |
| Capacitance | 2.2mF | |
| Voltage | 25V dc | |
| Mount Type | Radial, Through Hole | |
| Polarity | Polar | |
| Length | 25.2mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 16mm | |
| Termination Type | Radial Lead | |
| Capacitor Ripple Current | 2.5A | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Lifetime | 5000 h | |
| Lead Pitch | 7.5mm | |
| Series | B41858 | |
| Tolerance | ±20 % | |
| Leakage Current | 550μA | |
| Automotive Standard | AEC-Q200 | |
| Dissipation Factor | 0.19% | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Product Type Capacitor | ||
Capacitance 2.2mF | ||
Voltage 25V dc | ||
Mount Type Radial, Through Hole | ||
Polarity Polar | ||
Length 25.2mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 16mm | ||
Termination Type Radial Lead | ||
Capacitor Ripple Current 2.5A | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Lifetime 5000 h | ||
Lead Pitch 7.5mm | ||
Series B41858 | ||
Tolerance ±20 % | ||
Leakage Current 550μA | ||
Automotive Standard AEC-Q200 | ||
Dissipation Factor 0.19% | ||
The EPCOS aluminium electrolytic capacitor is a long life grade capacitor. This capacitor has low impedance at high frequency and high ripple current capability.
High reliability
Low ESR
RoHS compatible
Applicable in automotive electronics
