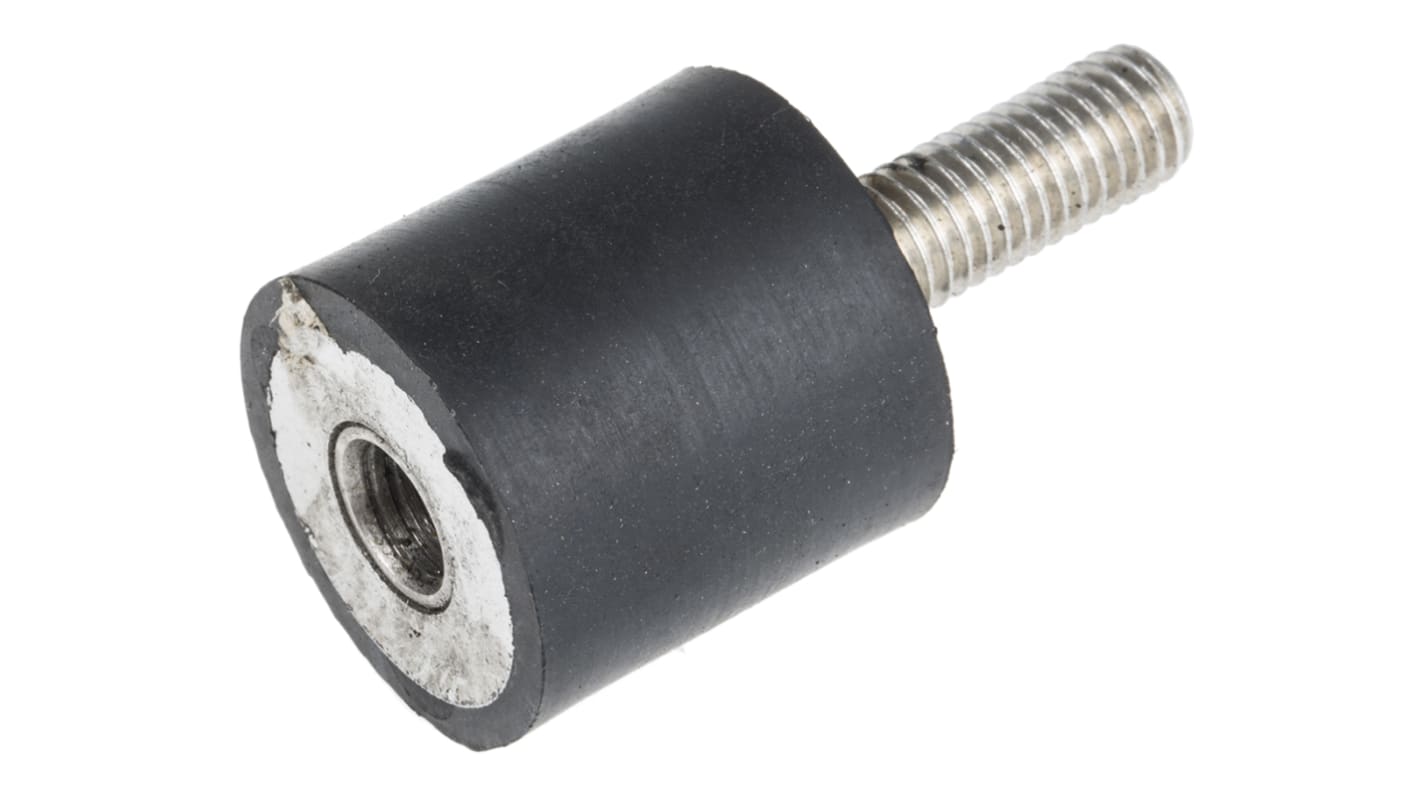

RS PRO RS PRO M8 Anti-Vibration Mount, Male to Female Bobbin with 37.62 kg Compression25 mm OD25 mm H
- RS Stock No.:
- 171-2598
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 2 units)*
$51.79
(exc. GST)
$59.56
(inc. GST)
Spend over $80.00 ex GST for FREE delivery
In Stock
- Plus 55 unit(s) shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | $51.79 | $25.895 |
| 5 - 24 | $49.22 | $24.61 |
| 25 + | $46.76 | $23.38 |
*price indicative
Sponsored
- RS Stock No.:
- 171-2598
- Brand:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Anti-Vibration Mount | |
| Anti Vibration Mount Type | Male to Female Bobbin | |
| Thread Size | M8 | |
| Trade Name | RS PRO | |
| Overall Height | 25mm | |
| Outside Diameter | 25mm | |
| Minimum Operating Temperature | -25°C | |
| Material | Natural Rubber | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Compression Load | 37.62kg | |
| Shore Hardness | 60 Shore A | |
| Series | AV Type B | |
| Compression Deflection | 2.5mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Anti-Vibration Mount | ||
Anti Vibration Mount Type Male to Female Bobbin | ||
Thread Size M8 | ||
Trade Name RS PRO | ||
Overall Height 25mm | ||
Outside Diameter 25mm | ||
Minimum Operating Temperature -25°C | ||
Material Natural Rubber | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Compression Load 37.62kg | ||
Shore Hardness 60 Shore A | ||
Series AV Type B | ||
Compression Deflection 2.5mm | ||
- COO (Country of Origin):
- IN
Shock Mounts when properly chosen provide a cost effective solution to problems involving vibration, shock and noise control – the rubber buffer can be used in shear/compression or both. However, it must be noted that they do not provide a fail-safe solution. Available in a large range of sizes, thread lengths and material, the cylindrical vibration damper is a classic all round solution.
