RS PRO Cylindrical M10 Anti Vibration Mount, Male to Female Bobbin with 86.06kg Compression Load
- RS Stock No.:
- 185-4489
- Brand:
- RS PRO
46 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each
$34.17
(exc. GST)
$39.30
(inc. GST)
| Units | Per unit |
| 1 + | $34.17 |
- RS Stock No.:
- 185-4489
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

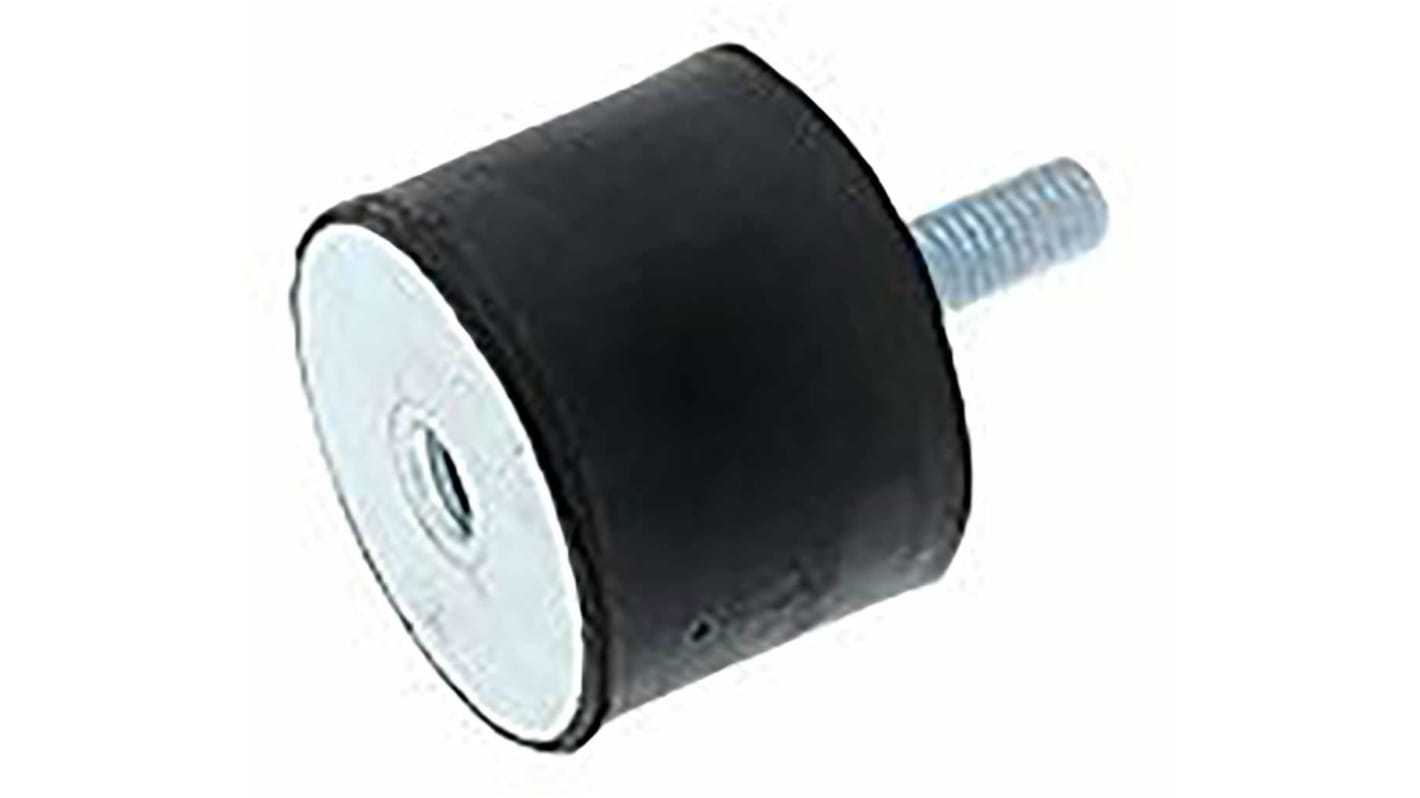

RS PRO Cylindrical Bobbin Mount
The RS PRO male/female cylindrical bobbin mount has a thread size of M10 and dimensions of 40mm x 35mm x 25mm (diameter x height x stud length). This stainless steel (316 grade) bobbin mount has a shore hardness of 55ShoreA and can be used in either compression and/or shear.
Features and Benefits
• Simple and cost-effective vibration isolators
• Compression load: 86.06kg
• Maximum shear load: 29.52kg
• Compression load: 86.06kg
• Maximum shear load: 29.52kg
Applications
• Static generator engines
• Compressors
• Motors
• Compressors
• Motors
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• BS EN 61340-5-1:2007
Specifications
Attribute | Value |
|---|---|
| Anti Vibration Mount Type | Male to Female Bobbin |
| Thread Size | M10 |
| Diameter | 40mm |
| Overall Height | 60mm |
| Material | Stainless Steel |
| Compression Load | 86.06kg |
| Foot Shape | Cylindrical |
| Shore Hardness | 55 Shore A |
| Metalwork | Stainless Steel |
