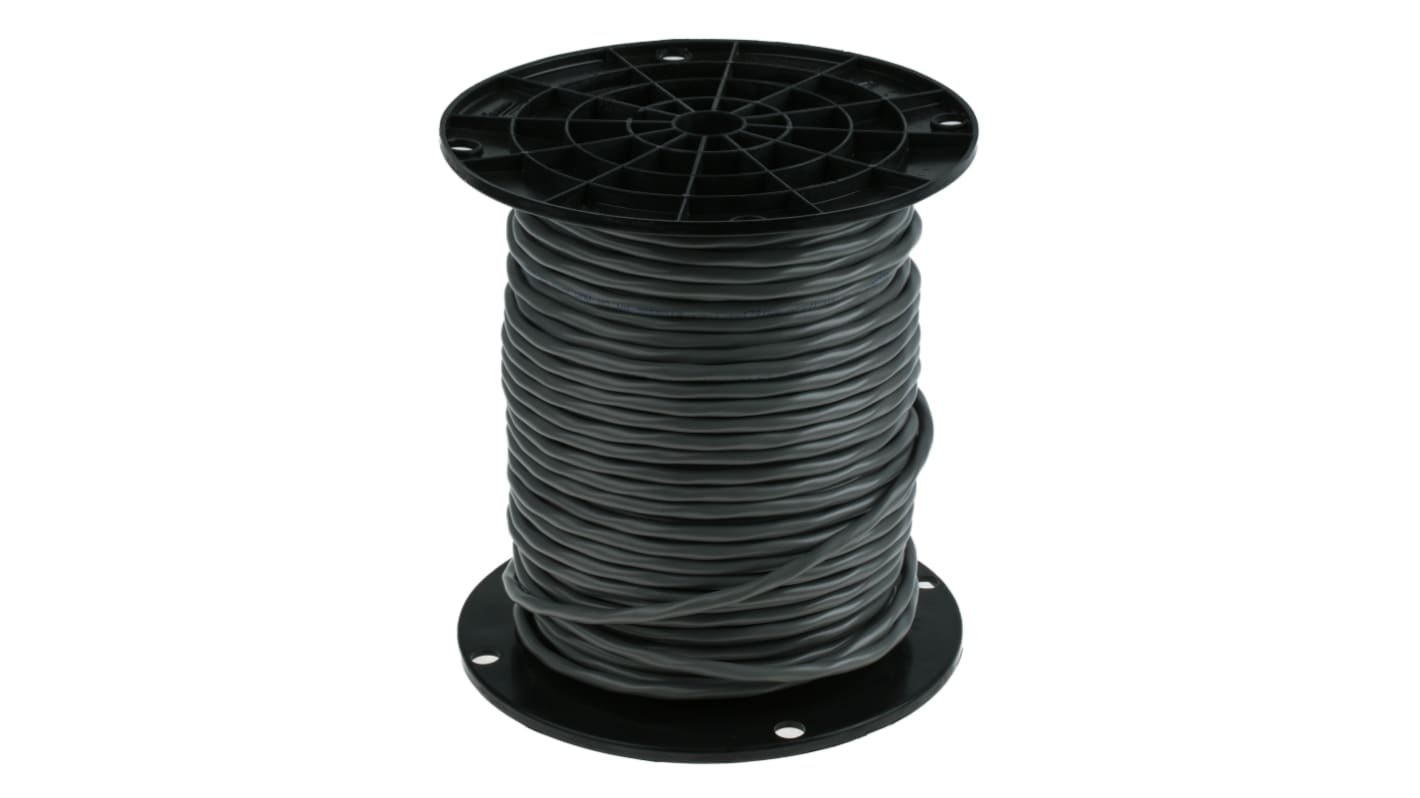

Belden Screened 2 Core Line Level, Low Voltage Signal Cable, 0.51 mm² CSA, 5.18mm od, 76m, Chrome
- RS Stock No.:
- 176-2088
- Mfr. Part No.:
- 8762 060250
- Brand:
- Belden
4 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) 1 Reel of 76 Metre(s)
$717.18
(exc. GST)
$824.76
(inc. GST)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | $717.18 | $9.437 |
| *price indicative | ||
- RS Stock No.:
- 176-2088
- Mfr. Part No.:
- 8762 060250
- Brand:
- Belden
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Belden Screened Line-Level Low-Voltage Signal Cable, 20 AWG - 8762
Use this two-core cable from Belden to transmit line-level signals from microphones and other audio input devices to amplifiers. This component is a versatile choice as it can transmit both analogue and digital signals. It has conductors made of tinned copper material to ensure a secure connection and resistance against corrosion. This means there's little risk of it degrading prematurely if exposed to moisture or dissimilar metals. A cable like this one is frequently used in alarm and security systems.
Features & Benefits
• Low core-to-core capacitance of 27pF/ft (picofarad per foot) ensures high-quality signals
• Polyethylene (PE) insulation material for protection against electric shock
• 300V voltage rating
• Polyethylene (PE) insulation material for protection against electric shock
• 300V voltage rating
Applications
• Instrumentation
• Computing
• Control systems
• Computing
• Control systems
Does this cable have twisted pairs?
Yes, this cable uses twisted pair conductors which helps to limit cross-talk as the signals travel in opposite directions.
Specifications
Attribute | Value |
|---|---|
| Audio Cable Type | Line Level, Low Voltage Signal Cable |
| Number of Cores | 2 |
| Cross Sectional Area | 0.51 mm² |
| Screened/Unscreened | Screened |
| Insulation Material | PE |
| Outer Diameter | 5.18mm |
| Length | 76m |
| CPR Certification | Eca |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) |
| Sheath Colour | Chrome |
| American Wire Gauge | 20 AWG |
| Voltage Rating | 300 V ac |
| Series | 8762 |
| Conductor Strand Type | Stranded |
| Standards Met | Euroclass Eca |
| Cable Shape | Twisted Pair |
| Core Strands | 7/28 AWG |
| Conductor Material | Tinned Copper |
| Current Rating | 3.9 A |
| Size of Strands | 28 AWG |
| Capacitance Core To Core | 27pF/ft |
| Drain Wire | Yes |
| Capacitance Core To Screen | 49pF/ft |
| Number of Strands | 7 |
| Shielded/Unshielded | Shielded |
| Conductor Resistance | 31 Ω/km |
| Characteristic Impedance | 56 Ω |
| Sheath Material | Polyvinyl Chloride PVC |
