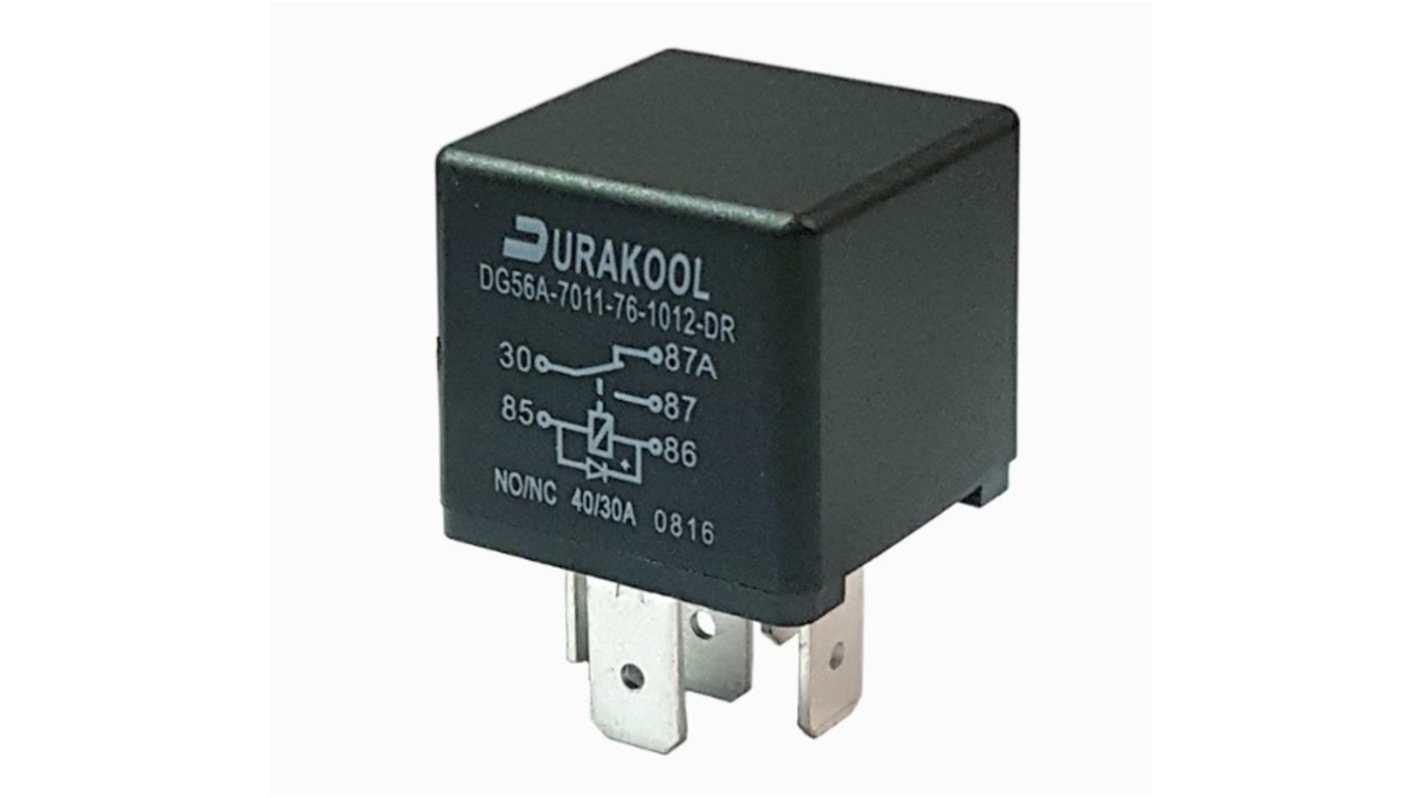

Durakool PCB Automotive Relay, 12V dc Coil Voltage, 40A Switching Current, SPDT
- RS Stock No.:
- 915-6638
- Mfr. Part No.:
- DG56A-7011-96-1012-M1
- Brand:
- Durakool
Temporarily out of stock
- RS Stock No.:
- 915-6638
- Mfr. Part No.:
- DG56A-7011-96-1012-M1
- Brand:
- Durakool
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Durakool | |
| Product Type | Automotive Relay | |
| Coil Power | 1.8W | |
| Coil Resistance | 85Ω | |
| Contact Configuration | SPDT | |
| Number of Poles | 1 | |
| Terminal Type | Quick Connect | |
| Mount Type | PCB | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 41mm | |
| Depth | 26.2mm | |
| Length | 26.2mm | |
| Isolation Coil To Contact | 500Vrms | |
| Contact Material | Silver Tin Oxide Indium Oxide | |
| Series | DG56 | |
| Select all | ||
|---|---|---|
Brand Durakool | ||
Product Type Automotive Relay | ||
Coil Power 1.8W | ||
Coil Resistance 85Ω | ||
Contact Configuration SPDT | ||
Number of Poles 1 | ||
Terminal Type Quick Connect | ||
Mount Type PCB | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 41mm | ||
Depth 26.2mm | ||
Length 26.2mm | ||
Isolation Coil To Contact 500Vrms | ||
Contact Material Silver Tin Oxide Indium Oxide | ||
Series DG56 | ||
- COO (Country of Origin):
- CN
Willow Durakool DG56A Series Automotive Relays
Willow Durakool DG56A Series miniISO automotive power relays feature a non-latching coil with a high expected life cycle. The DG56A relays have a high resistance to inrush current and a high continuous DC current capacity.
General purpose miniature automotive relays
High resistance to inrush current
High continuous DC current capacity
Ideal for DC motor control
Industry standard size and footprint
RoHS Compliant
