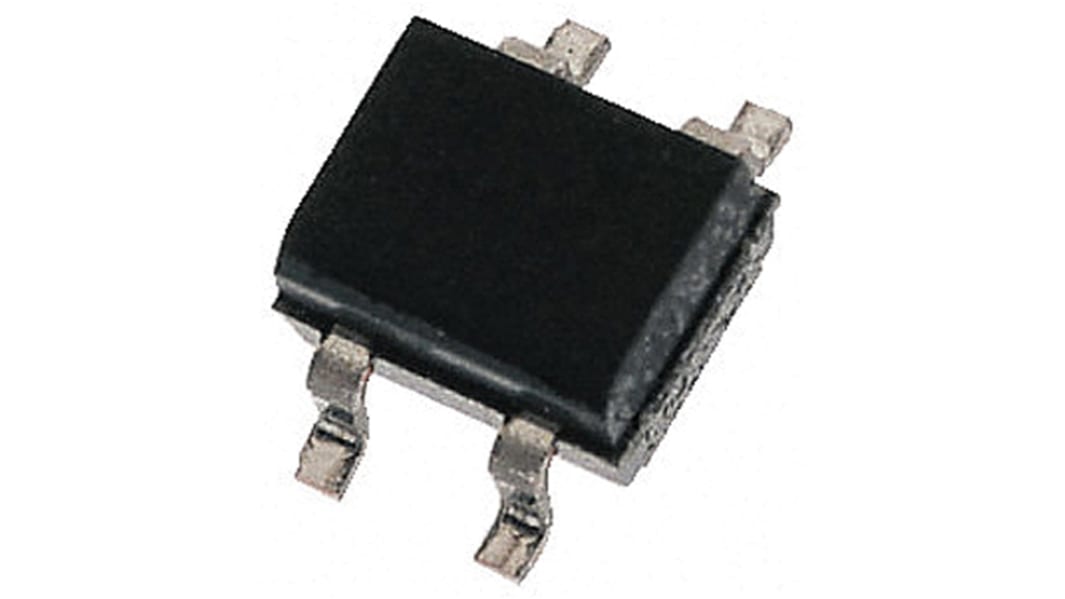

HY Electronic Corp Bridge Rectifier, 2A, 1000V, 4-Pin
- RS Stock No.:
- 917-8969
- Mfr. Part No.:
- DB207S
- Brand:
- HY Electronic Corp
250 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each (In a Pack of 50)
$0.505
(exc. GST)
$0.581
(inc. GST)
| Units | Per unit | Per Pack* |
| 50 - 50 | $0.505 | $25.25 |
| 100 - 200 | $0.489 | $24.45 |
| 250 - 450 | $0.474 | $23.70 |
| 500 - 950 | $0.464 | $23.20 |
| 1000 + | $0.454 | $22.70 |
| *price indicative | ||
- RS Stock No.:
- 917-8969
- Mfr. Part No.:
- DB207S
- Brand:
- HY Electronic Corp
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Bridge Rectifier - DB Series
The DB family of bridge rectifiers from HY Electronic (Cayman) Limited are surface mount rectifiers. The glass passivated bridge rectifier has a forward current of 1 A or 2A with a reverse voltage of 1000 V. They are used in PCB applications and converts AC to DC.
PRV: 1000 V
Low forward voltage drop
Plastic material: UL94V-0 flammability classification
Low forward voltage drop
Plastic material: UL94V-0 flammability classification
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Bridge Rectifiers - HY Electronic (Cayman) Limited
Specifications
Attribute | Value |
|---|---|
| Peak Average Forward Current | 2A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Surface Mount |
| Package Type | DBS |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Diode Type | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 60A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Dimensions | 8.8 x 6.5 x 3.4mm |
| Length | 8.8mm |
| Width | 6.5mm |
| Junction Capacitance | 25pF |
| Height | 3.4mm |
