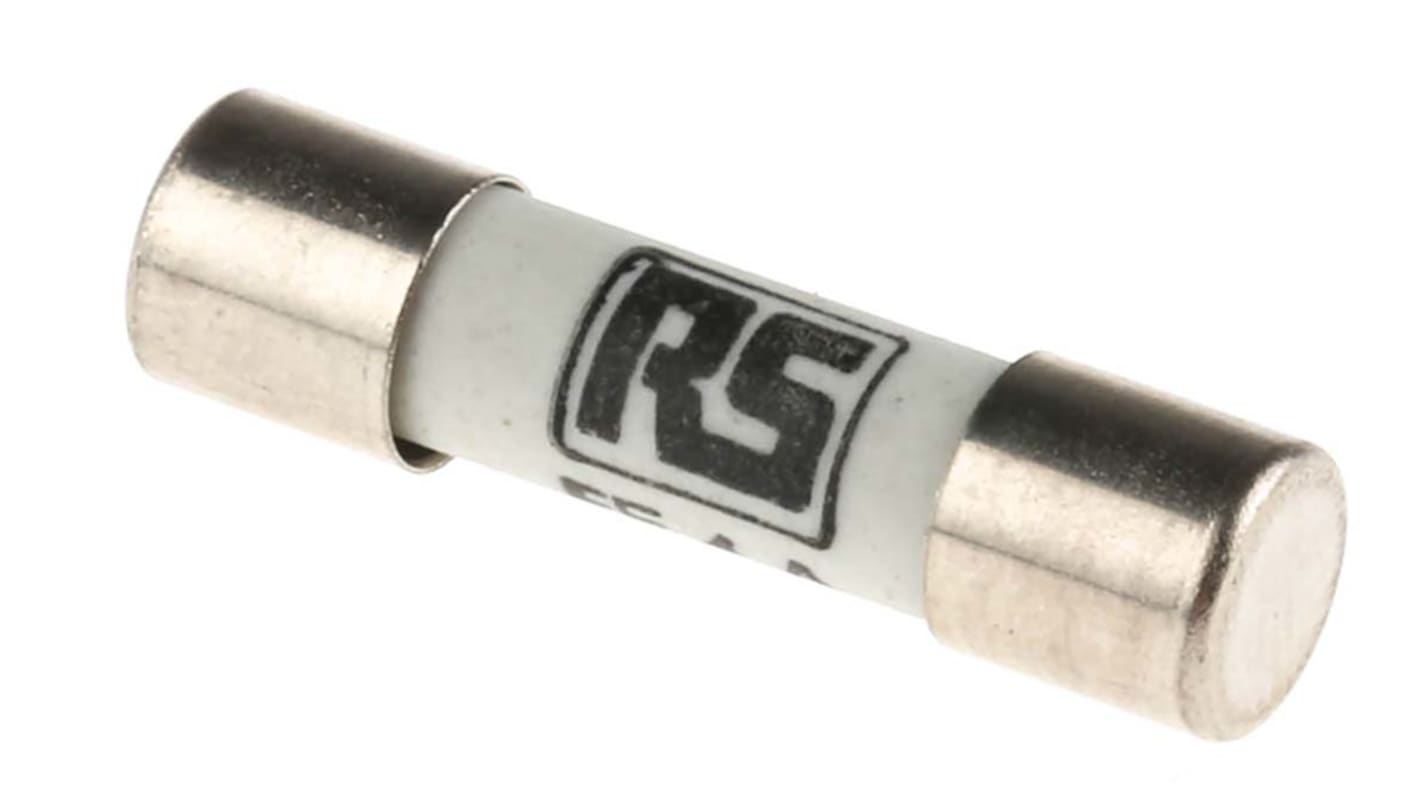

RS PRO 4 A FF Ceramic Cartridge Fuse, 5 x 20 mm

View all Cartridge Fuses
Bulk discount available

Subtotal (1 pack of 10 units)*

$45.15

(exc. GST)

$51.92

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 1,460 unit(s) shipping from 16 March 2026
  • Plus 1,150 unit(s) shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 490$4.515$45.15
500 - 2490$4.459$44.59
2500 +$3.671$36.71

*price indicative

RS Stock No.:
376-5615
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Current Rating

4 A

Product Type

Cartridge Fuse

Fuse Size

5 x 20 mm

Fuse Speed

FF

Voltage

250 V ac

Body Material

Ceramic

Overall Length

20mm

Fuse Characteristics

Super Fast Acting

Series

70001

Diameter

5 mm

Standards/Approvals

UL, RoHS

COO (Country of Origin):
DE

RS PRO Ultra Rapid (FF) HBC – Ceramic Cartridge Fuses 5x20mm


RS PRO range of miniature ceramic cartridge fuses which are ultra-rapid (FF) that operate at higher temperatures so are ideal to provide circuit protection to semiconductor devices. They are ideal for providing protection to devices or internal circuits from short circuits and overcurrent. They are deliberately weaker components which, when too much current is drawn, will blow. Once the fuse has blown it will need replacing in order to make the circuit complete and allow the flow of current.

Fuses are less expensive and react faster than a circuit breaker. However circuit breakers can be reset after they trip but a fuse will have to be replaced once it blows.

RS PRO cartridge fuse packs are available in a range of current ratings with varying resistance values to suit all your requirements. This range is reliable for a broad range of applications.

Features:

Miniature ceramic cartridge

FF Speed rated – very fast acting

5mm x 20mm cartridge size

Very high interrupting rating

High rated voltages

Cylindrical shape

Typical applications:

Cartridge fuses are a relatively cheap way of protecting electrical equipment from short circuits and overcurrent and can be used to protect electrical appliances such as motors air-conditions, refrigerator, pumps etc. They can be found in the following areas:

Industrial

Commercial

Home/Residential

Automotive

Additional Information

What size is it?

5x20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter. They are popular in board and panel protection and will fit a compatible 5x20 fuse holder.

What Speed is it?

These particular fuses are (FF) ultra-rapid which means it is a fast acting fuse. FF fuses are good for semiconductor protection in devices like thyristors, diodes and transistors.

What are fuses used for?

• For the protection of components and equipment from costly damage caused by over-current.

• To isolate sub-systems from the main system once a fault has appeared

What is an over-current?

It is a setting where a circuit experiences a current that is higher than the normal operating current.

What is Breaking Capacity?

Breaking capacity is the level of current that the fuse can safely handle without exploding or rupturing. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit. This particular fuse is HBC (High Breaking Capacity).
