- RS Stock No.:
- 180-0093
- Mfr. Part No.:
- SMB7H-J-P-H-RA-TH1
- Brand:
- Samtec
1 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each
$16.38
(exc. GST)
$18.84
(inc. GST)
Units | Per unit |
1 - 24 | $16.38 |
25 - 99 | $15.91 |
100 - 249 | $15.44 |
250 + | $11.74 |
- RS Stock No.:
- 180-0093
- Mfr. Part No.:
- SMB7H-J-P-H-RA-TH1
- Brand:
- Samtec
Technical data sheets
Legislation and Compliance

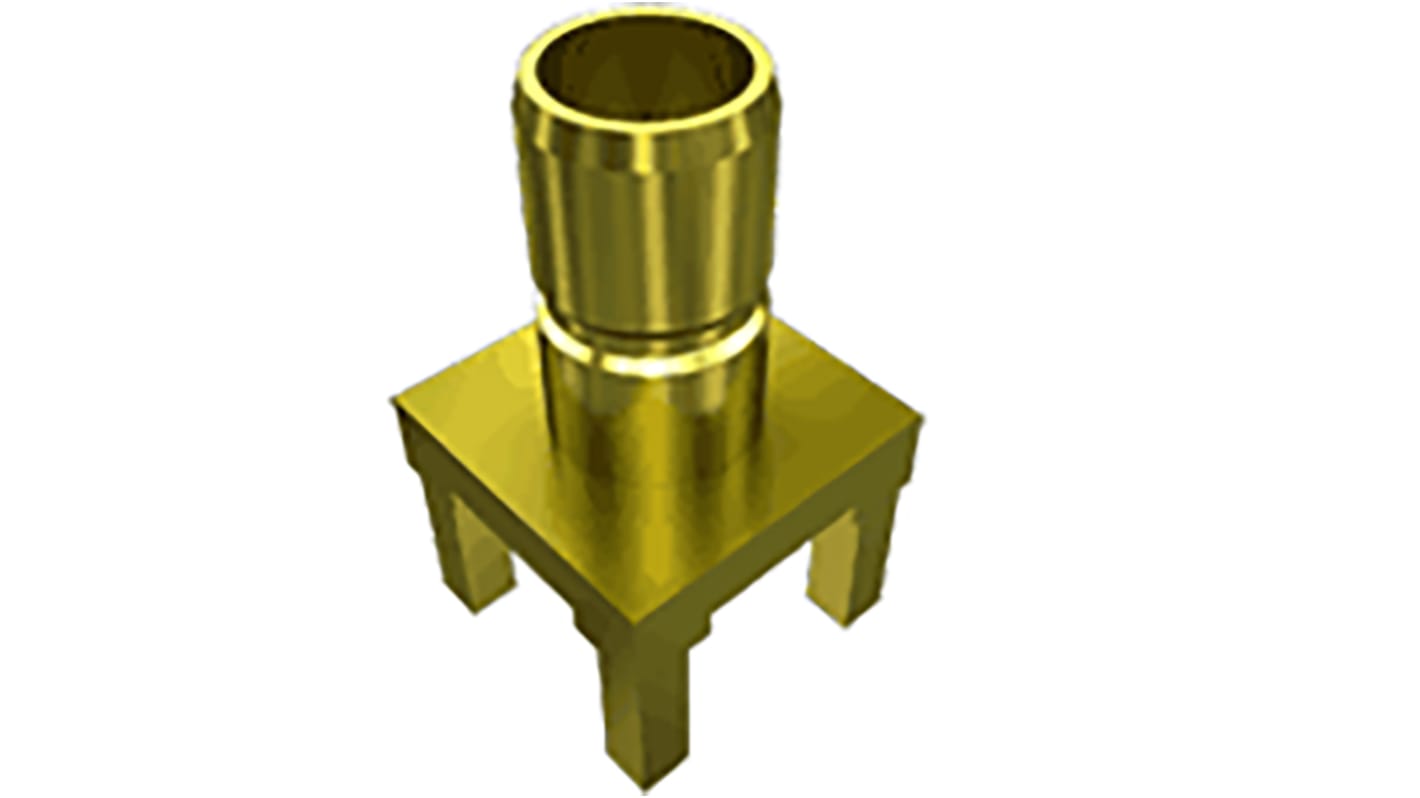

Product Details
Performance up to 4 GHz
75 ohm impedance
Vertical or right-angle
Through-hole termination
75 ohm impedance
Vertical or right-angle
Through-hole termination
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Coaxial Connector Type | SMB Connector |
Gender | Female |
Mounting Type | PCB Mount |
Impedance | 75Ω |
Termination Method | Through Hole |
Body Orientation | Right Angle |
Cable Type | Coaxial |
Size | Standard |
Operating Frequency | 0 to 4GHz |
Minimum Operating Temperature | -65°C |
Body Plating | Gold |
Maximum Operating Temperature | +165°C |
Series | SMB7H |
Contact Material | Brass |
Contact Plating | Gold |
