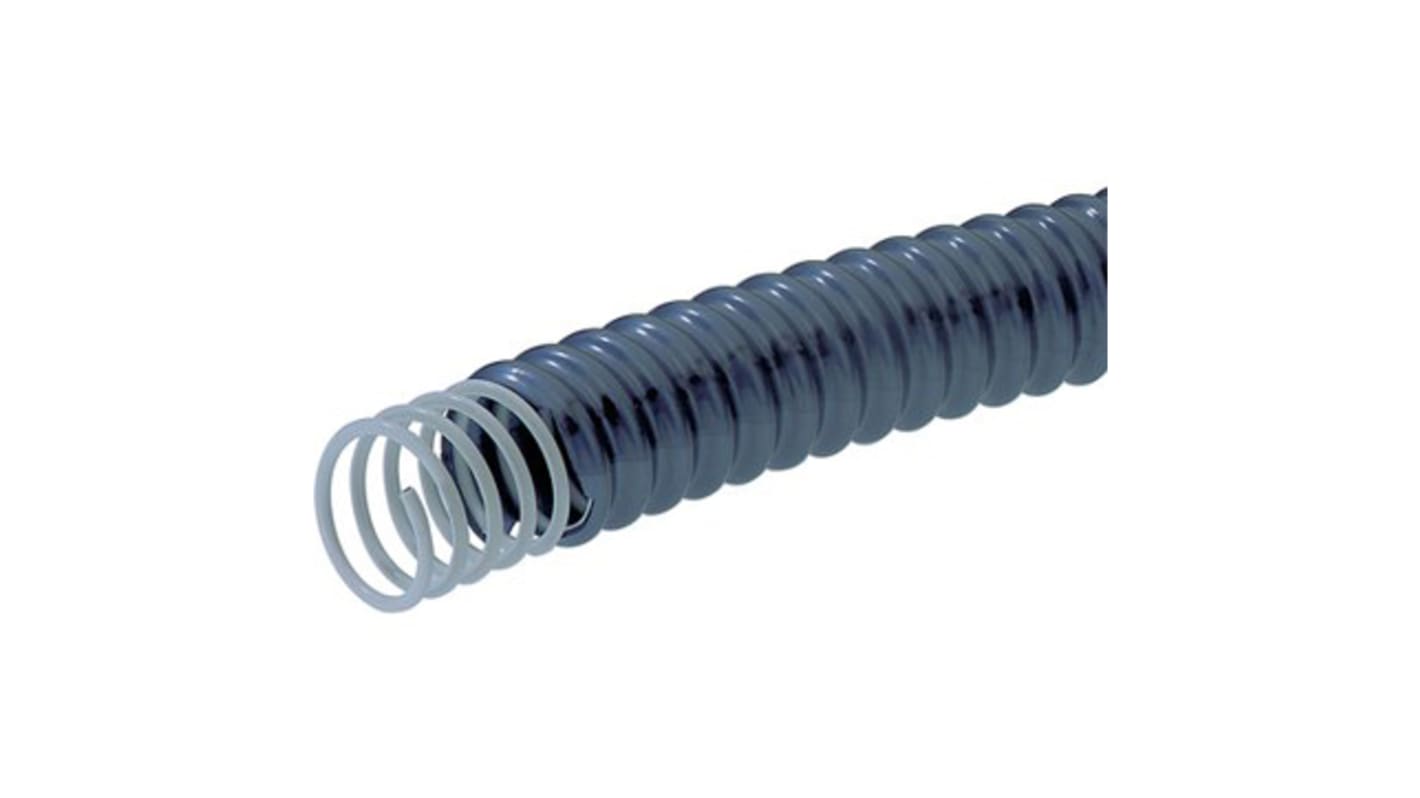

Lapp SILVYN FD-PU Polyurethane Coated Steel Spring Wire Contractor Pack Conduit Grey 14mm 10m M12

  • RS Stock No. 668-4519
  • Mfr. Part No. (1) x 64453670 & (10) x 55501310
  • Manufacturer Lapp
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Hi-Flex conduit - Contractor Packs

From Lapp, these Silvyn Hi-Flex conduits and cable gland packs are ideal for protecting wiring in all kinds of environments and for a variety of applications. Highly-flexible and with excellent resistance, they are able to be used in continuous flexing installations such as power chains and moving machinery.

The conduit is steel-wire enforced, and is able to be crushed and extended. It is liquid tight, and also has high resistance to oil, petrol, acids and greases.

The cable gland fittings provide a tension and vibration resistant connection between the conduit and machinery.

Features and Benefits

• Resistant against Oil, Petrol, Acids and Grease
• Abrasion and Microbe resistant
• Self extinguishing UL 94 VO material
• Halogen free
• Cadmium free
• Cold tolerant to -40 °C
• Air and liquid tight
• Can be compressed or extended due to its steel spring wire construction
• Pack contents = 1 off 10 m length of conduit and 10 off straight fittings

Applications

These Hi-Flex conduit packs are often used in industries where chemical resistance and ingress protection are important factors, such as;

• Food and Beverage
• Robot-building
• Mechanical engineering

Alternative Packs

668-4519 is a 12 mm High Flex PU Contractor Pack
668-4512 is a 16 mm High Flex PU Contractor Pack
668-4516 is a 20 mm High Flex PU Contractor Pack
668-4525 is a 25 mm High Flex PU Contractor Pack

Suitable for continuous flexing installations around Plant or Robotic equipment, particularly within the Food & Beverage industry where chemical resistance and ingress protection are important factors.

Conduit

Resistant against Oil, Petrol, Acids and Grease
Abrasion and Microbe resistant
Self extinguishing UL 94 VO material
Halogen and Cadmium free
Cold tolerant to -40 °C
Air and liquid tight
Can be compressed or extended due to its steel spring wire construction
Pack contents = 1 off 10 m length of conduit and 10 off straight fittings

Fittings

The inner and outer sleeves of the fittings can only be fitted in the correct sequence for safety
The fittings are tension and vibration-resistant
Provides a high quality connection between the conduit and machine
The conduit cannot be twisted.

LAPP Specialist Flexible Conduits

Specifications
Attribute Value
Nominal Diameter 14mm
Material Steel Spring Wire
Conduit Type Contractor Pack
Colour Grey
Outer Diameter 14mm
Interior Diameter 10mm
Length 10m
IP Rating IP65
Coating Material Polyurethane
Series SILVYN FD-PU
Thread Size M12
Maximum Operating Temperature +80°C
Minimum Operating Temperature -40°C
Minimum Bend Radius 14 mm
On back order for despatch 28/01/2020, delivery within 5 working days from despatch date.
Price (ex. GST) 1 Kit
$ 344.95
(exc. GST)
$ 396.69
(inc. GST)
Kit(s)
1 +
$344.95
