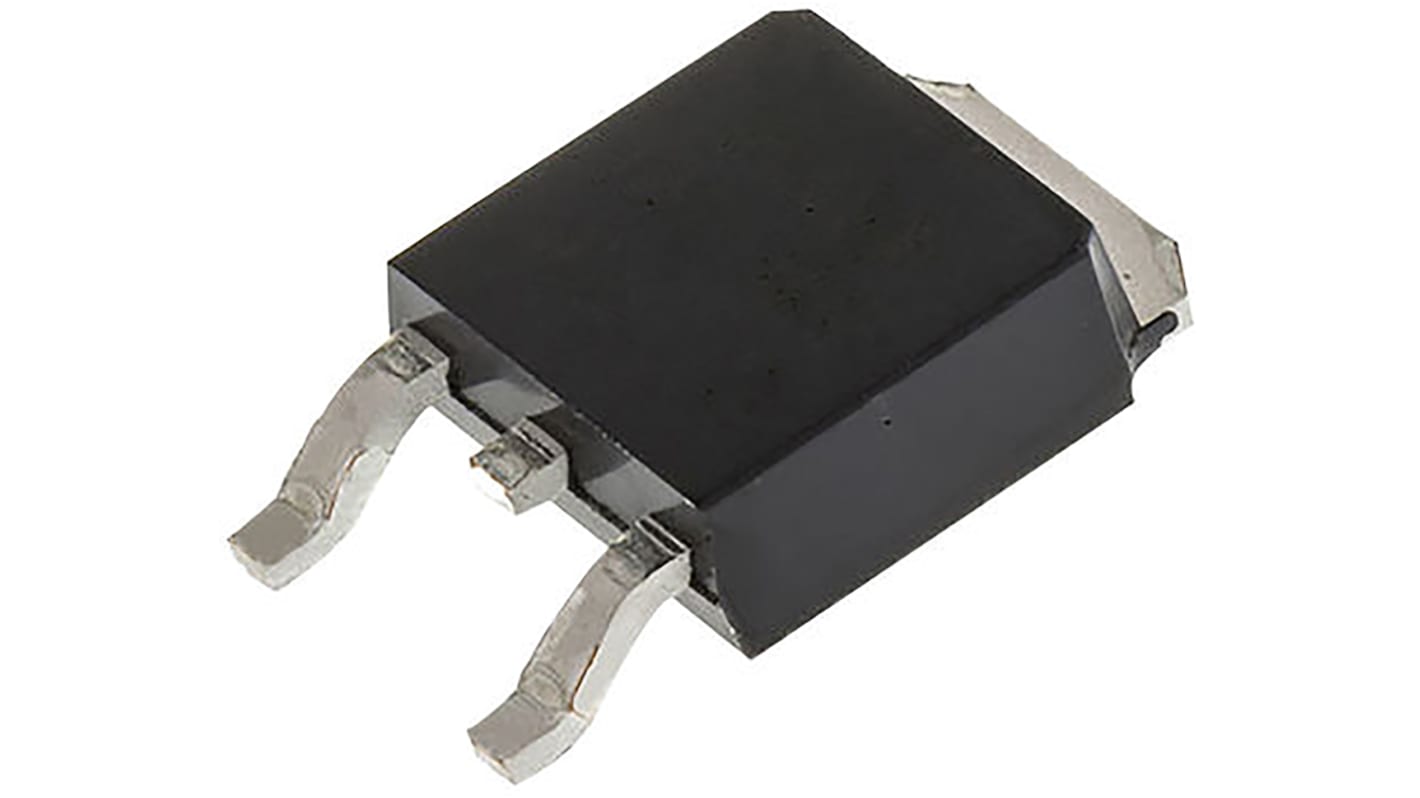

onsemi MJD127T4G PNP Darlington Transistor, 8 A 100 V HFE:100, 3-Pin DPAK

RS Stock No.:: 463-111
Mfr. Part No.:: MJD127T4G
Brand:: onsemi

onsemi MJD127T4G PNP Darlington Transistor, 8 A 100 V HFE:100, 3-Pin DPAK

Bulk discount available

Price Each (In a Pack of 20)**

$1.087

(exc. GST)

$1.25

(inc. GST)

60 In stock for delivery within 7 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80 ex GST

Units	Per unit	Per Pack**
20 - 620	$1.087	$21.74
640 - 1240	$1.059	$21.18
1260 +	$1.043	$20.86

**price indicative

RS Stock No.:: 463-111
Mfr. Part No.:: MJD127T4G
Brand:: onsemi

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Transistor Type	PNP
Maximum Continuous Collector Current	8 A
Maximum Collector Emitter Voltage	100 V
Maximum Emitter Base Voltage	5 V
Package Type	DPAK (TO-252)
Mounting Type	Surface Mount
Pin Count	3
Transistor Configuration	Single
Number of Elements per Chip	1
Minimum DC Current Gain	100
Maximum Base Emitter Saturation Voltage	4.5 V
Maximum Collector Base Voltage	100 V
Maximum Collector Emitter Saturation Voltage	4 V
Maximum Collector Cut-off Current	0.01mA
Height	2.38mm
Width	6.22mm
Minimum Operating Temperature	-65 °C
Maximum Operating Temperature	+150 °C
Length	6.73mm
Dimensions	6.73 x 6.22 x 2.38mm

onsemi MJD127T4G PNP Darlington Transistor, 8 A 100 V HFE:100, 3-Pin DPAK

FREE delivery for orders over $80 ex GST

PNP Darlington Transistors, ON Semiconductor
