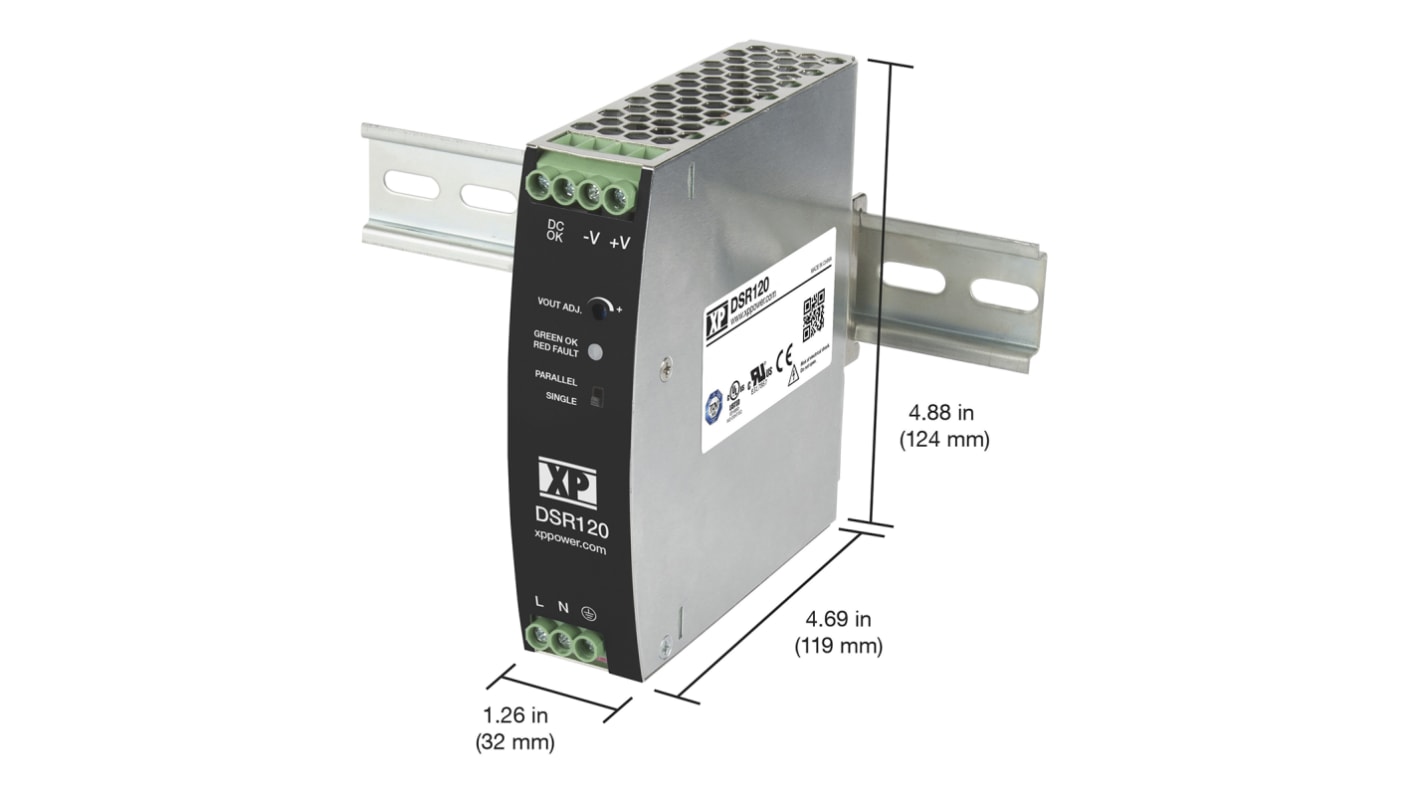

XP Power DSR120 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 48V dc dc Output, 2.5A Output, 120W

RS Stock No.:: 177-4599
Mfr. Part No.:: DSR120PS48
Brand:: XP Power

XP Power DSR120 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 48V dc dc Output, 2.5A Output, 120W

3 In stock for delivery within 7 working day(s)

Added

Price (ex. GST) Each

$147.52

(exc. GST)

$169.65

(inc. GST)

Units	Per unit
1 - 9	$147.52
10 - 49	$142.90
50 +	$136.68

RS Stock No.:: 177-4599
Mfr. Part No.:: DSR120PS48
Brand:: XP Power

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Ultra Slim Design - 32 mm
150% Peak Load for 3 seconds
Ambient Operation from -25 °C to +70 °C
Full Load at 60 °C (24V/48V)
High Efficiency - Up to 92%
Volt-Free Contact for DC OK
Selectable Parallel Operation
85 to 264 VAC Operation
3 Year Warranty

Specifications

Attribute	Value
Type	Switched Mode
Output Voltage	48V dc
Output Current	2.5A
AC or DC Input Voltage	ac
AC or DC Output Voltage	dc
Input Voltage	85 → 264V ac
Power Rating	120W
Electrical Phase	1
Number of Outputs	1
Height	124mm
Width	32mm
Depth	119mm
Series	DSR120
Standards Met	CB IEC60950-1, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, TUV EN60950-1, UL Listed UL508/UL60950
Maximum Temperature	+70°C
MTBF	300kh
Ripple And Noise	240mV Pk-Pk
Load Regulation	±1%
Minimum Temperature	-25°C
Mounting Type	DIN Rail Mount
